242008x8A Murray - Utility Dump Cart (2002)

Model: 242008x8A

Save
 Part Not Listed?Part Not Listed?
product name

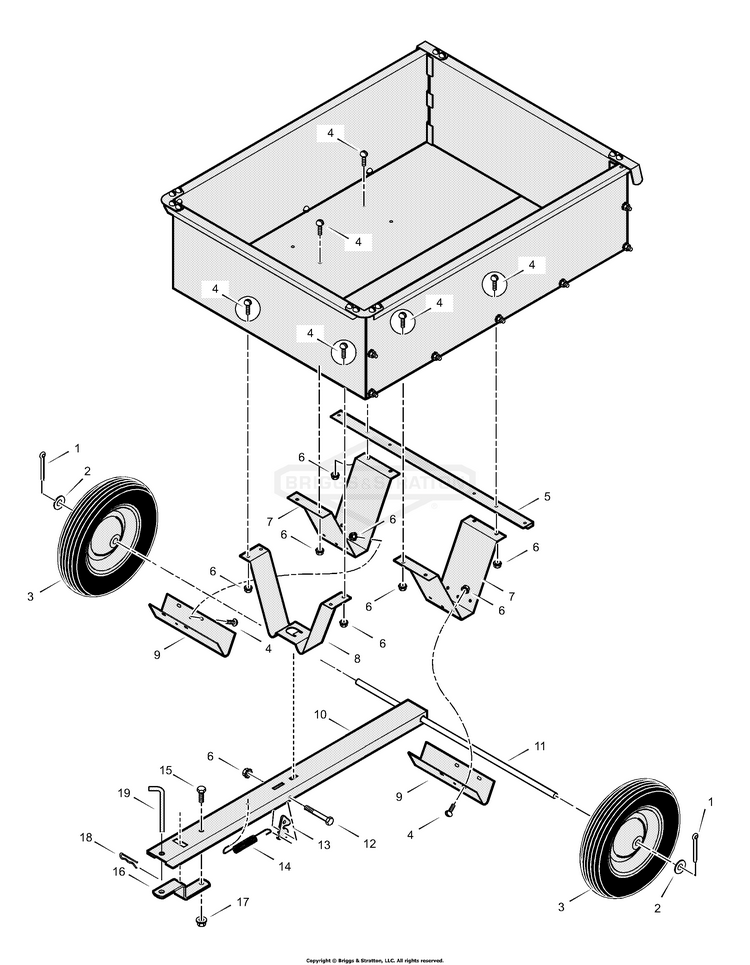

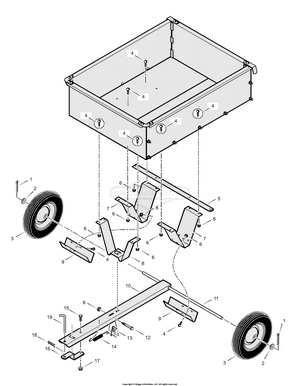

Utility Dump Cart (part 1)

...
...
1
Support, Side BS-1001476E122
...
2
Screw 1/4-20x0.50 BS-004X24MA
...
3
NUT, HEX, KEPS,1/4-20 BS-703914
...
4
Tailgate (Black) BS-1101469E122
...
5
Retainer, Tailgate BS-1001474E122
...
6
Bracket, Corner BS-1001477E122
...
7
Brace, Rear BS-1001475E122
...
8
Bottom, Right BS-1001470E122
...
9
Panel, Side (Black) BS-1001467E122
...
10
Support, Side BS-1001478E122
...
11
Panel, Front BS-1001468E122
...
12
Bottom, Left BS-1001471E122

Utility Dump Cart (part 2)

...
...
1
Pin, Cotter BS-030X49MA
...
2
Washer BS-17X197MA
...
3
Wheel BS-1001488MA
...
4
Screw 14-20x0.50 BS-004X24MA
...
5
Support, Bottom BS-1001472E122
...
6
NUT, HEX, KEPS,1/4-20 BS-703914
...
7
Support, Axle BS-1001466E122
...
8
Support, Tongue BS-1001465E122
...
9
Retainer, Axle BS-1001481E122
...
10
Tongue (Black) BS-1001464E122
...
11
Axle BS-1001473MA
...
12
Bolt, Hex 1/4-20x3.25 BS-01X117
...
13
Latch BS-1001480E122
...
14
Spring BS-165X75MA
...
15
Bolt, Hex 3/8-16x0.75 BS-001X85MA
...
16
Hitch BS-1001479E122
...
17
NUT, CNTR LCK, 3/8-16 BS-703893
...
18
PIN, 3/32 X 1.6 BS-703300
...
19
Pin, Drawbar BS-1001489 Z
...
--
Book, Instruction BS-F-020900L
...
--
Decal, Warning BS-48X1101
...
...
...
