24062x8A Murray - Walk-Behind (1998)

Model: 24062x8A

Save Part Not Listed?
product name

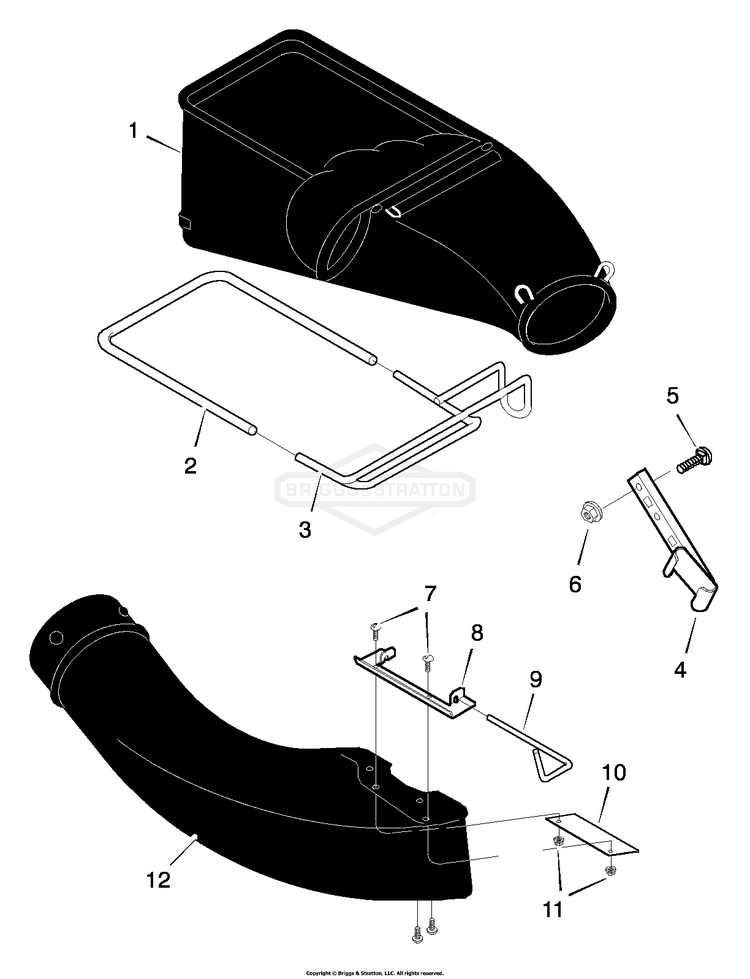

Grass Bagger

...
...
1
Bag, Grass BS-071882MA
...
2
Tube, Support BS-071890
...
3
Frame, Bag BS-071889
...
4
Bracket, Handle BS-071888MA
...
5
Bolt, Carriage BS-002X81MA
...
6
Nut BS-15X104
...
7
Screw BS-004X21MA
...
8
Bracket, Chute BS-071887MA
...
9
Pin, Locking BS-071886MA
...
10
Plate, Inside BS-071885MA
...
11
Nut BS-015X71MA
...
12
Extension, Chute BS-672670
...
--
Instruction Sheet BS-F-98585
