229630x8B Murray - Walk-Behind Mower (2001)

Model: 229630x8B

Back To Assemblies

Save Part Not Listed?
product name

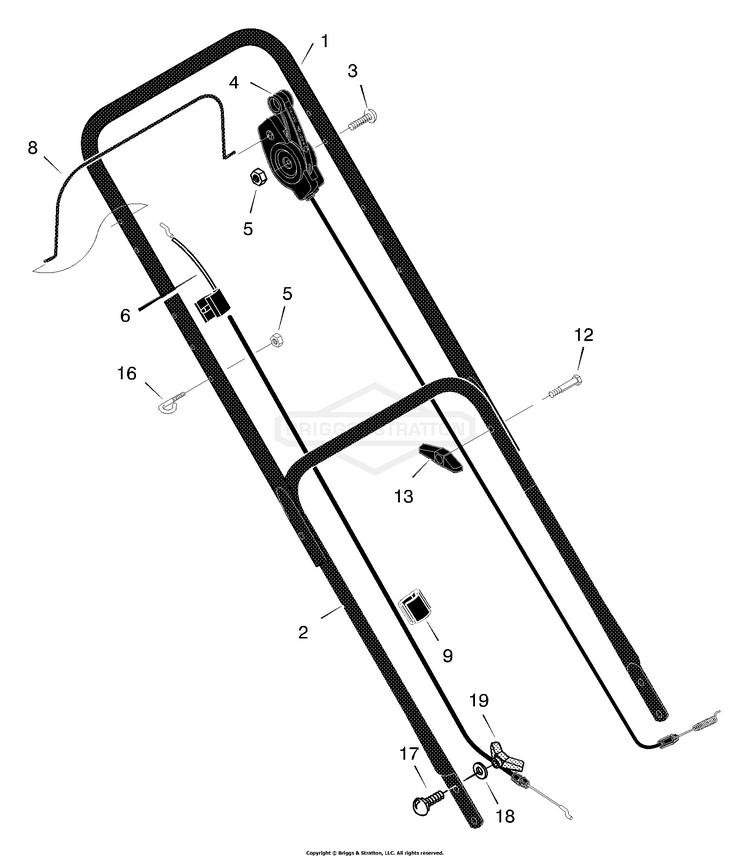

Handle Assembly

...
...
1
Handle, Upper BS-1101099-806
...
2
Handle, Lower BS-672906-806
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101344MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101366MA
...
8
Engine Stop Lever BS-1101076E122
...
9
Fastener, Cable BS-1101352
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
Bolt, Carriage BS-002X81MA
...
18
Washer BS-17X168ZMA
...
19
Knob, Plastic BS-071495MA
