229610x83A Murray - Walk-Behind Mower (2004)

Model: 229610x83A

Save Part Not Listed?
product name

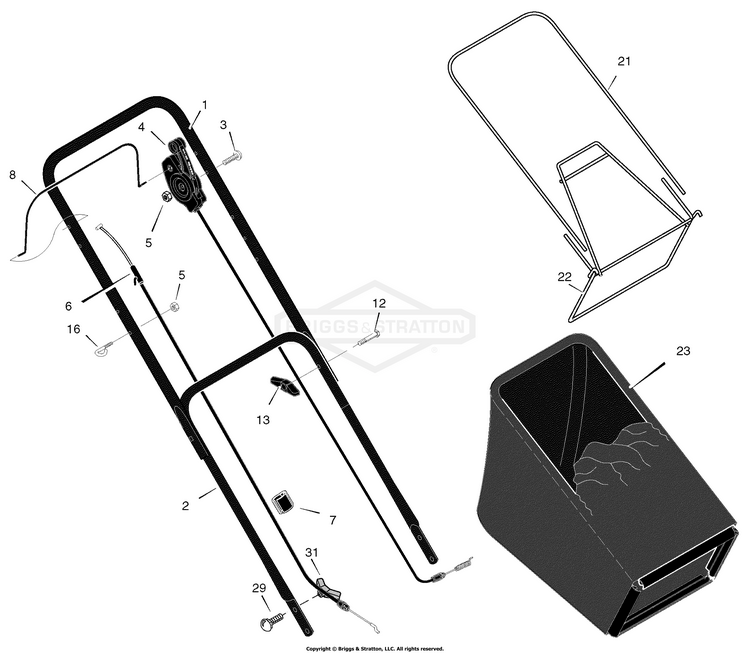

Handle & Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101557E701
...
1
Handle, Upper (Gray) BS-1101557E724
...
2
Handle, Lower (Black) BS-672906E701
...
2
Handle, Lower (Gray) BS-672906E724
...
4
Control, Drive BS-1101670
...
5
Locknut BS-15X116
...
6
Cable, Stop BS-1101365
...
7
Fastener, Cable BS-1101353
...
8
Lever, Stop BS-1101076E701
...
12
Bolt BS-002X77
...
13
Knob BS-71294
...
16
Guide, Rope BS-71530
...
21
Frame, Top BS-1101075
...
22
Frame Assembly BS-1101074
...
23
Bag, Cloth BS-1102019
...
29
Bolt, Carriage BS-002X81
...
31
Knob, Plastic BS-71495
...
3
Bolt BS-025X14MA

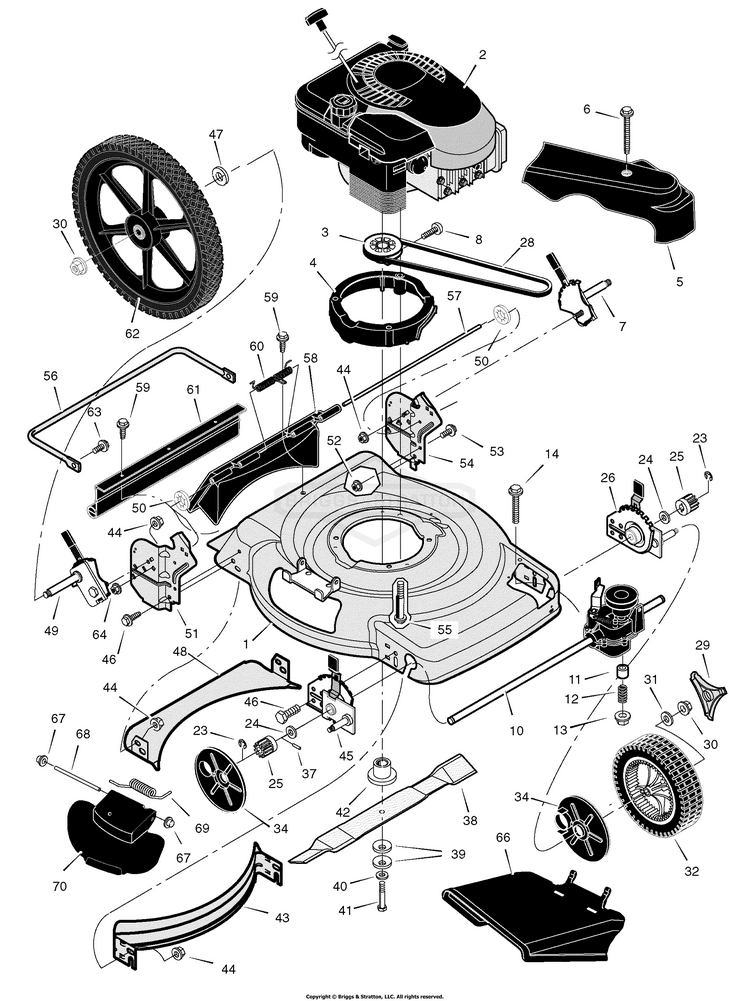

Mower Housing Assembly

...
...
1
Housing BS-1101340E700
...
3
Pulley, Drive BS-1101653
...
4
Spacer, Engine (Black) BS-1101331
...
4
Spacer, Engine (Gray) BS-1101332
...
5
Cover, Belt (Black) BS-1101596
...
5
Cover, Belt (Gray) BS-1101568
...
6
Screw BS-26X304
...
7
Adjuster, Left Rear Height BS-672919
...
8
Screw BS-26X303
...
10
Transmission * BS-1101571
...
11
BELT, 73.75 AA BS-7043844YP
...
12
Spring, Compression BS-164X27
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
23
E-Ring BS-011X16
...
24
Washer BS-17X186
...
25
Gear, Pinion BS-71792
...
26
Adjuster, Left Front Height BS-1101029
...
28
Belt BS-37X123
...
29
Cap, Hub (Gray) BS-672446
...
30
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
Washer BS-17X169
...
32
Wheel & Tire, Front (Gray) BS-672441
...
34
Cover, Dust BS-71780
...
37
Pin, Drive BS-43629
...
38
Blade BS-1101120E701
...
39
Washer, Belleville BS-17X137
...
40
Washer BS-17X124
...
41
Bolt BS-01X144
...
42
Adapter, Blade BS-1101336
...
43
Baffle, Front (Included with Ref. No. 1) BS-672915E700
...
44
NUT, 3/8-16 BS-703333
...
45
Adjuster, Right Front Height BS-1101028
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
47
WASHER, Flat, 13/16 BS-017X91MA
...
48
Baffle, Rear * BS-672916E700
...
49
Adjuster, Right Rear Height BS-672918
...
50
Retainer, Push BS-028X49
...
51
Bracket, Right Handle BS-1101244E701
...
52
NUT, 3/8-16 BS-703333
...
53
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
54
Bracket, Left Handle BS-1101245E701
...
55
Bolt, Engine BS-025X11
...
56
Brace BS-1101008E701
...
57
Rod, Pivot (Included with Ref. No. 58.) BS-215X21
...
58
Door, Rear (Black) BS-1101070
...
58
Door, Rear (Gray) BS-672613
...
59
Screw BS-26X245
...
60
Spring (Included with Ref. No. 58.) BS-166X44
...
61
Guard, Rear BS-672684
...
62
Wheel & Tire, Rear (Gray) BS-672801
...
63
CAPSCREW,5/16-18X.625 BS-703822
...
64
Nut BS-015X79
...
66
Deflector, Chute (Black) BS-1101097
...
66
Deflector, Chute (Gray) BS-672917
...
67
Push On Cap (Included with Ref. No. 70) BS-028X42
...
68
Rod, Pivot (Included with Ref. No. 70) BS-215X19 Z
...
69
Spring, Torsion (Included with Ref. No. 70) BS-166X38
...
70
Cover, Mulch (Black) BS-1101098
...
70
Cover, Mulch (Gray) BS-672920
...
--
Book, Instruction BS-F-040432L
