22955x31A Murray - Walk-Behind Mower (2000)

Model: 22955x31A

Save Part Not Listed?
product name

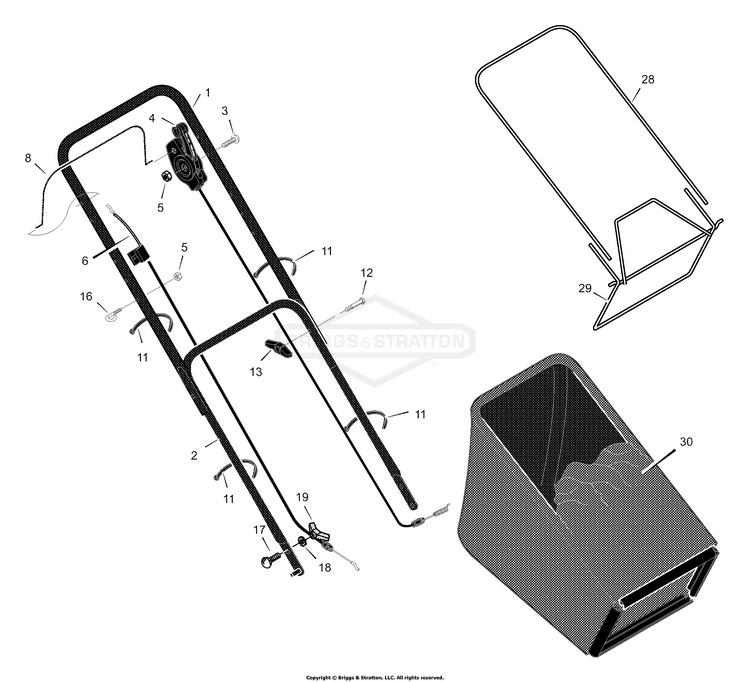

Handle & Bag Assembly

...
...
1
Handle, Upper BS-1101099E724
...
2
Handle, Lower BS-1101082E724
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-672882MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672880MA
...
8
Engine Stop Lever BS-1101076E122
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
Bolt, Carriage BS-1101104MA
...
18
WASHER, EXT, 3/8 BS-703864
...
19
NUT, Wing, 3/8-16 BS-1101106MA
...
28
Frame, Top BS-1101075MA
...
29
Frame Assembly BS-1101083
...
30
Bag, Cloth BS-1101035MA

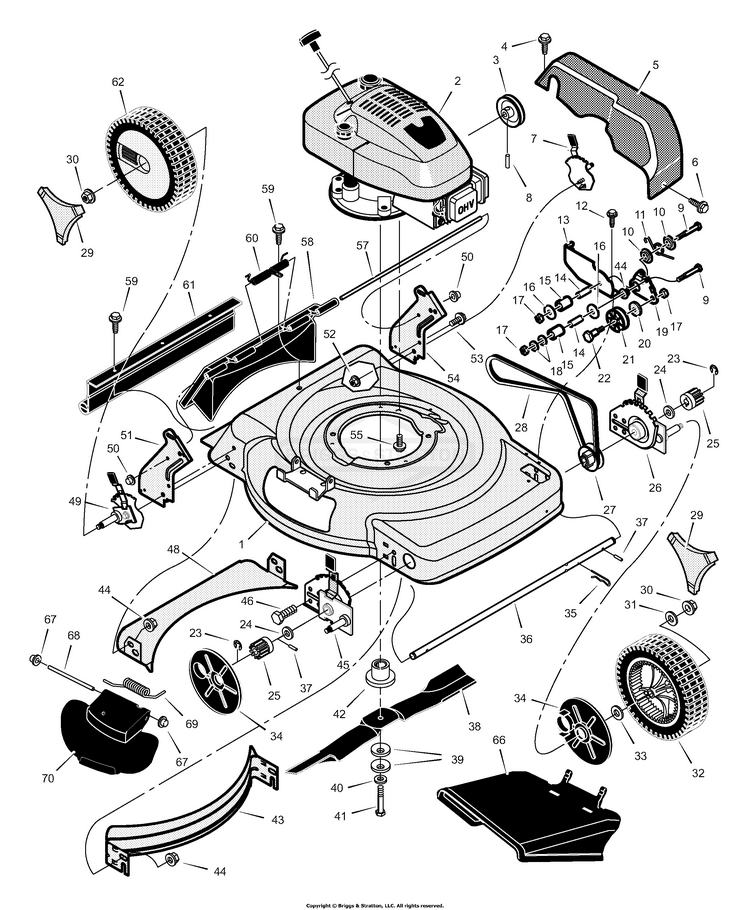

Mower Housing Assembly

...
...
1
Housing BS-7501002
...
3
Pulley, Drive BS-071434MA
...
4
Screw BS-26X256MA
...
5
Cover, Belt (Gray) BS-1101080
...
6
Screw BS-26X279MA
...
7
Adjuster, Left Rear Height BS-672605MA
...
8
Pin, Spring BS-032X64MA
...
9
Bolt BS-01X120MA
...
10
Spacer, Idler Arm BS-071789MA
...
11
Spring BS-166X45MA
...
12
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
13
Bracket, Idler Support BS-672751 Z
...
14
Bearing, Idler BS-071793MA
...
15
Pulley, Idler BS-672754MA
...
16
WASHER,FLAT .33 1. 16 BS-017X45MA
...
17
NUT BS-703164
...
18
WASHER BS-703128
...
19
Arm, Pivot BS-1101121 Z
...
20
Spacer, Idler BS-071788MA
...
21
Pulley, Idler BS-071779MA
...
22
Bolt, Shoulder BS-009X50MA
...
23
E-Ring BS-011X16MA
...
24
Washer BS-17X186MA
...
25
Gear, Pinion BS-071792MA
...
26
Adjuster, Left Front Height BS-1101079MA
...
27
Pulley, Axle BS-071791MA
...
28
Belt BS-37X100MA
...
29
Cap, Hub BS-72805
...
30
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
WASHER, FLAT, .377X1 BS-703966
...
32
8X2.00 WHL T-BAR DR D BS-672441MA
...
33
Washer BS-17X120MA
...
34
Cover, Dust BS-071780MA
...
35
Pin, Hair BS-0031X9MA
...
36
Axle BS-672508MA
...
37
Pin, Drive BS-043629MA
...
38
Blade BS-672573E701MA
...
39
Washer, Belleville BS-17X137MA
...
40
Washer BS-17X124MA
...
41
Bolt BS-01X153MA
...
42
Adapter, Blade BS-672503MA
...
43
Baffle, Front BS-672915E700
...
44
NUT, 3/8-16 BS-703333
...
45
Adjuster, Right Front Height BS-1101078MA
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
48
Baffle, Rear BS-672916E700
...
49
Adjuster, Right Rear Height BS-1101086MA
...
50
Push On Cap BS-028X49MA
...
51
Bracket, Right Handle BS-672868E122
...
52
NUT, 5/16-18, GR5 BS-703409
...
53
CAPSCREW,5/16-18X.625 BS-703822
...
54
Bracket, Left Handle BS-672869E122
...
55
Bolt, Engine BS-0025X6MA
...
57
Rod, Pivot BS-215X21MA
...
58
Door, Rear (Gray) BS-1101071MA
...
59
SCREW-#10X.5 B W/WAS BS-26X245MA
...
60
Spring BS-166X44MA
...
61
GUARD, Rear, 22" Mower Deck BS-7103347YP
...
62
WHL 8X2 TWIST/BAR P D BS-1101433MA
...
66
Deflector, Chute BS-672917MA
...
67
Push On Cap BS-028X42MA
...
68
Rod, Pivot BS-215X19 Z
...
69
Spring, Torsion BS-166X38MA
...
70
Cover, Mulch (Gray) BS-672920MA
...
--
Instruction Book BS-F-000486J
