228870x692A Murray - Walk-Behind Mower (2002)

Model: 228870x692A

Back To Assemblies

Save Part Not Listed?
product name

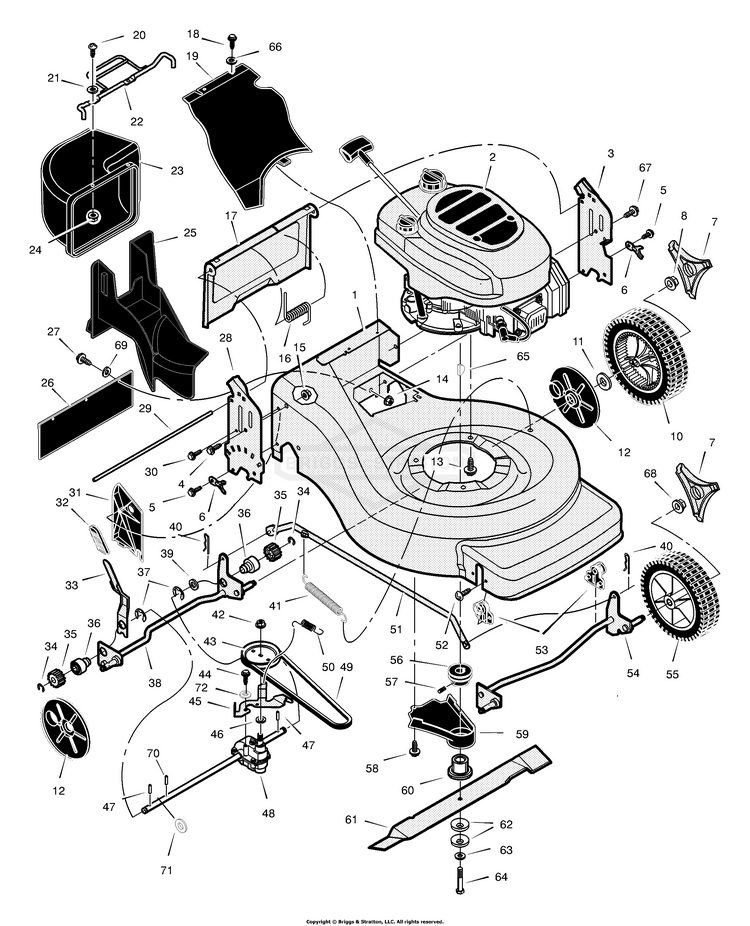

Mower Housing Assembly

...
...
1
Housing BS-1101499E700
...
3
Bracket, Handle-Left BS-1101501E700
...
4
Screw BS-7911000
...
5
Screw BS-7911001
...
6
Bracket, Crossbar Mount BS-1101527MA
...
7
Hubcap BS-1101594MA
...
8
Nut, Rear Axle 10X1.5 BS-7911002
...
10
Wheel, Drive - Rear BS-1101589
...
11
Washer BS-7911004
...
12
Dustcover, Wheel BS-1101535MA
...
13
Screw, Engine Mount BS-0025X6MA
...
14
Nut BS-7911005
...
15
Nut BS-7911006
...
16
Spring, Torsion (Included with Ref. No. 17) BS-1101538MA
...
17
Door, Rear BS-1101502E700MA
...
18
Screw BS-7911007
...
19
Cover, Belt-Upper BS-1101546
...
20
Screw (Included with Ref. No. 23) BS-7911008
...
21
Washer (Included with Ref. No. 23) BS-7911009
...
22
Handle (Included with Ref. No. 23) BS-1101542MA
...
23
Chute Assembly BS-1101548
...
24
Nut (Included with Ref. No. 23) BS-7911010
...
25
Plug, Mulch BS-1101539MA
...
26
Guard, Rear BS-1101543
...
27
Screw BS-7911011
...
28
Bracket, Handle-Right BS-1101500E700
...
29
Rod, Rear Door (Included with Ref. No. 17) BS-1101537MA
...
30
Screw BS-7911012
...
31
Baffle, Rear Discharge BS-1101520MA
...
32
Grip, Height Adjust BS-1101580MA
...
33
Lever, Height Adjust BS-1101530E700
...
34
E-Ring, Rear Crossbar (Included with Ref. No. 38) BS-7911013
...
35
Gear, Pinion-Right BS-1101533MA
...
35
Gear, Pinion-Left (Included with Ref. No. 38) BS-1101591MA
...
36
Bearing & Sleeve Assembly (Included with Ref. No. 38) BS-7911014
...
37
E-Ring, Transmission (Included with Ref. No. 38) BS-7911015
...
38
Crossbar, Rear BS-1101511E700MA
...
39
Washer (Included with Ref. No. 38) BS-7911016
...
40
Hairpin BS-7911017
...
41
Spring, Extension BS-1101534MA
...
42
Nut BS-7911018
...
43
Pulley, Transmisson BS-1101524MA
...
44
Screw BS-7911019
...
45
Stop, Transmission Rotation BS-1101522
...
46
Washer BS-7911020
...
47
Pin, Drive BS-1101536
...
48
Transmission BS-1101521MA
...
49
Belt BS-7769230
...
50
Spring, Extension BS-1101525MA
...
51
Rod, Height Adjust BS-1101532E700MA
...
52
Screw BS-7911021
...
53
Block, Crossbar BS-1101531
...
54
Crossbar, Front BS-1101510E700MA
...
55
Wheel BS-071132MA
...
56
Pulley, Engine Crankshaft BS-1101553MA
...
57
Screw, Set-Engine Pulley BS-7911022
...
58
Screw (Lower Belt Cover) BS-7911023
...
59
Guard, Belt-Lower BS-1101544MA
...
60
Adapter, Blade BS-1101552
...
61
Blade BS-7769229
...
62
Washer BS-17X137MA
...
63
Washer BS-17X124MA
...
64
Bolt, Hex BS-01X148MA
...
65
Key, Woodruff No.5 BS-7911024
...
66
Washer BS-7911025
...
67
Screw BS-7911026
...
68
Nut, Front Axle 10x1.5 BS-7911027
...
69
Washer BS-7911028
...
70
Pin, Spring BS-7911029
...
71
Washer BS-7911030
...
72
Washer BS-7911031
...
--
Instruction Manual BS-F-020457L
...
--
Decal, Convertible (3n1) BS-48X1040
...
--
Decal, Stanley BS-48X796
...
--
Decal, Warning/Cut Finger BS-48X407MA
...
--
Decal, Height Adjust BS-48X1075
...
--
Decal, Battery BS-44X7331
