22865x50A Murray - Walk-Behind Mower (2002)

Model: 22865x50A

Back To Assemblies

Save Part Not Listed?
product name

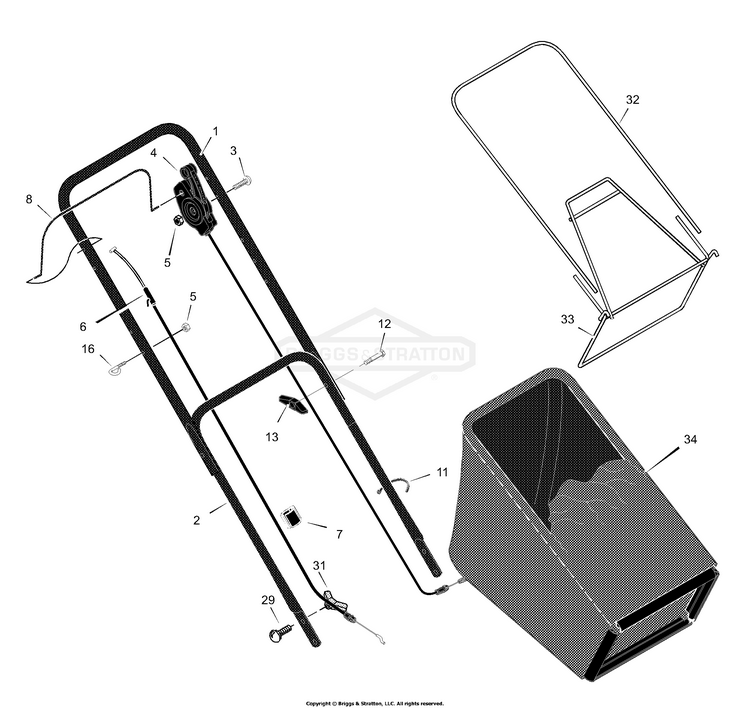

Handle And Bag Assembly

...
...
1
Handle, Upper BS-1101557E724
...
2
Handle, Lower (Black) BS-672906E701MA
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101344MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101365MA
...
7
Fastener, Cable BS-1101353MA
...
8
Lever, Stop BS-1101076E701MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
29
Bolt, Carriage BS-002X81MA
...
31
Knob, Plastic BS-071495MA
...
32
Tube, Bag BS-1101075MA
...
33
Frame Assembly BS-1101074MA
...
34
Bag, Cloth BS-1101035MA
Schematic Image Zoomed
