22865x14B Murray - Walk-Behind Mower (2001)

Model: 22865x14B

Back To Assemblies

Save Part Not Listed?
product name

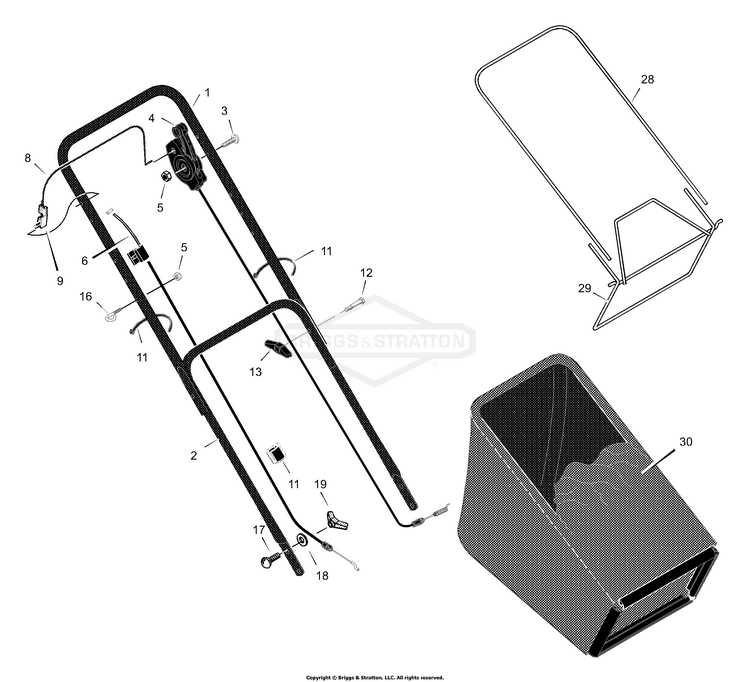

Handle & Bag Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
2
Handle, Lower (Black) BS-672906E701MA
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-672877MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101364MA
...
8
Engine Stop Lever BS-672879E700
...
9
Bracket, Stop Lever BS-43628 BC
...
11
Clip, Cable BS-1101352
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
Bolt, Carriage BS-002X81MA
...
18
Washer BS-17X168ZMA
...
19
Knob, Plastic BS-071495MA
...
28
Frame, Top BS-1101075MA
...
29
Frame Assembly BS-1101074MA
...
30
Bag, Cloth BS-1101034
