228651x99B Murray - Walk-Behind Mower (2005)

Model: 228651x99B

Save Part Not Listed?
product name

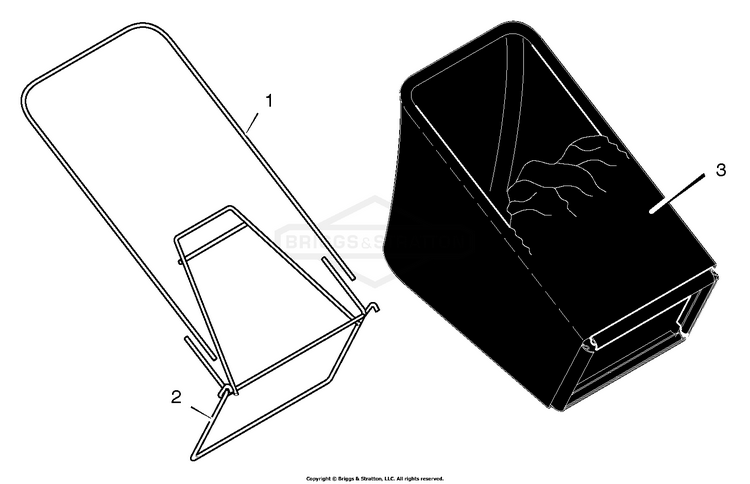

Bagger Assembly

...
...
1
Tube, Bag BS-1101075MA
...
2
Frame Assembly BS-1101074MA
...
3
Bag, Cloth BS-1101005MA

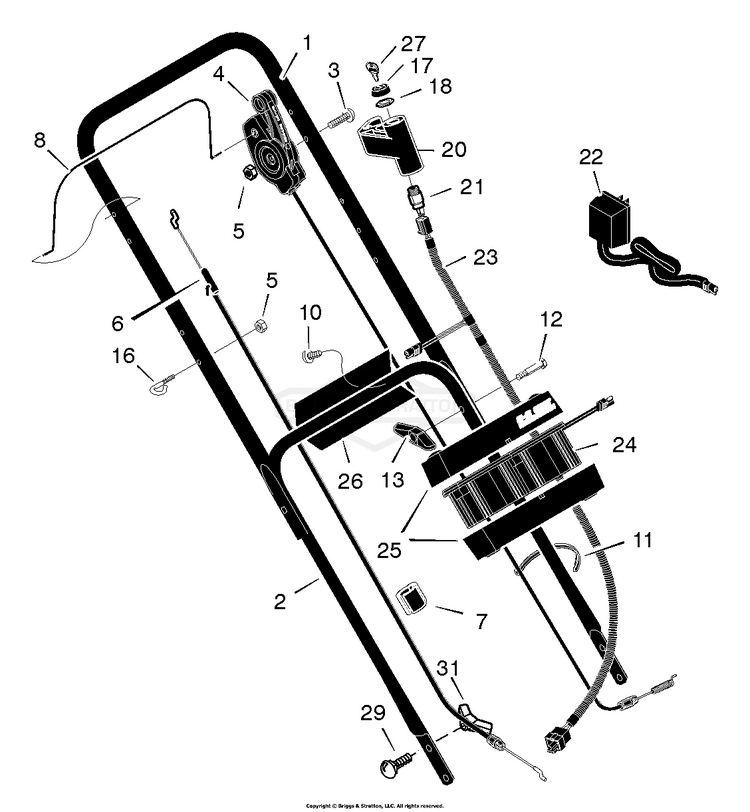

Handle Assembly

...
...
1
HANDLE UPPER 22FDTM BS-1101557E701MA
...
--
Handle, Upper (Gray) BS-1101557E724
...
2
Handle, Lower (Black) BS-1102089E701
...
--
Handle, Lower (Gray) BS-1102089E724
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101670MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop (Briggs) BS-1101365MA
...
7
Fastener, Double Cable BS-1101353MA
...
8
Lever, Stop BS-1101076E701MA
...
10
Screw BS-26X220MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
CAP, Switch BS-847150
...
18
SET, Washer/Nut BS-847144
...
20
Cover, Ignition BS-1101602MA
...
21
Switch Ignition & Key BS-776011MA
...
22
Charger, Battery BS-671992MA
...
23
Harness, Wiring BS-250X110
...
24
Battery BS-776014MA
...
25
Case, Battery BS-776013
...
26
Bracket, Battery BS-671959E701
...
27
Key, Ignition BS-672220
...
29
Bolt, Carriage BS-002X81MA
...
31
Knob, Plastic BS-071495MA

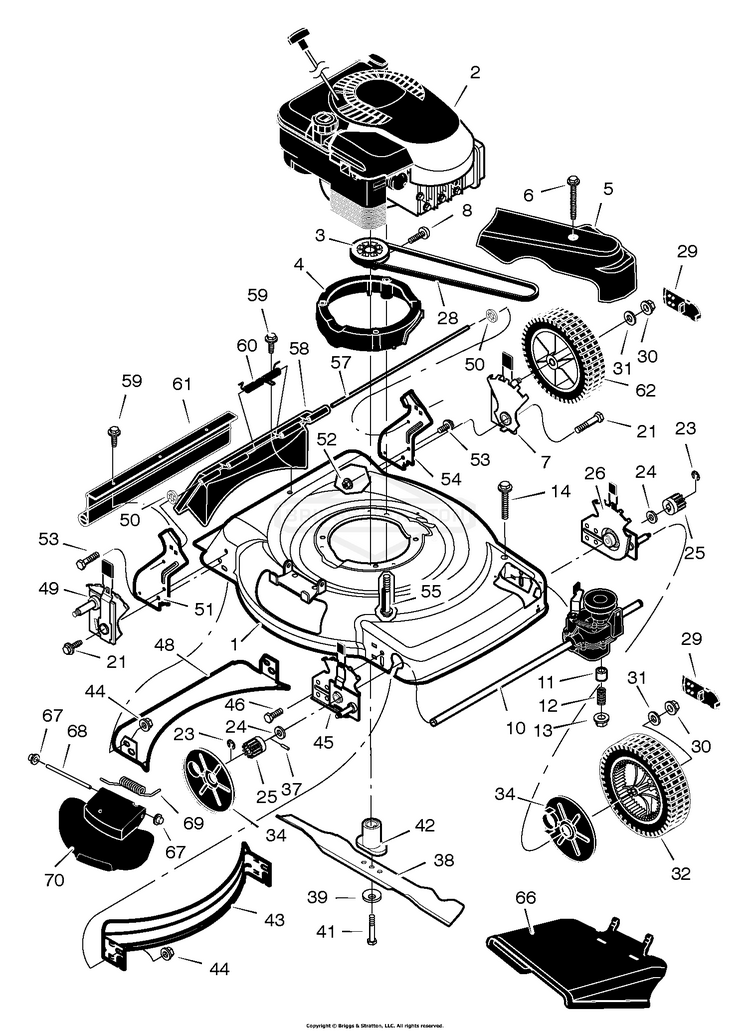

Mower Housing Assembly

...
...
1
Housing BS-7501042
...
3
Pulley, Drive BS-1101653MA
...
4
Spacer, Engine (Black) BS-1101639
...
--
Spacer, Engine (Gray) BS-1101640
...
5
Cover, Belt (Black) BS-1101596MA
...
--
Cover, Belt (Gray) BS-1101568MA
...
6
Screw BS-26404
...
7
Adjuster, Left Rear Height BS-672605MA
...
8
Screw BS-26403
...
10
Transmission * BS-1101571MA
...
11
Spacer BS-043844MA
...
12
Spring, Compression BS-164X27MA
...
13
Nut BS-15X88
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
21
CAPSCREW,3/8-16X1.5 BS-703406
...
23
E-Ring BS-011X16MA
...
24
Washer BS-17X186MA
...
25
Gear, Pinion BS-071792MA
...
26
Adjuster, Left Front Height BS-1101029
...
28
Belt BS-37X123MA
...
29
Cap, Hub BS-672122MA
...
30
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
WASHER, FLAT, .377X1 BS-703966
...
32
Wheel & Tire, Front BS-071133MA
...
34
Cover, Dust BS-071780MA
...
37
Pin, Drive BS-043629MA
...
38
BLADE, 22", WALK MWR BS-7100851AYP
...
39
Washer, Belleville BS-1101989MA
...
41
Bolt BS-01X144MA
...
42
Adapter, Blade BS-1101826
...
43
Baffle, Front (Included with Ref. No. 1) BS-672915E700
...
44
NUT, 3/8-16 BS-703333
...
45
Adjuster, Right Front Height BS-1101078MA
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
48
Baffle, Rear (Included with Ref. No. 1) BS-672916E700
...
49
Adjuster, Right Rear Height BS-672604MA
...
50
Retainer, Push (Included with Ref. No. 58) BS-028X49MA
...
51
BRACKET, Lower Handle, RH BS-7300890ZYP
...
52
NUT, 5/16-18, GR5 BS-703409
...
53
CAPSCREW,5/16-18X.625 BS-703822
...
54
Bracket, Left Handle BS-1101239E701MA
...
55
Bolt, Engine BS-025X11MA
...
57
Rod, Pivot (Included with Ref. No. 58) BS-215X21MA
...
58
Door, Rear (Black) BS-1101070MA
...
--
Door, Rear (Gray) BS-1101071MA
...
59
SCREW-#10X.5 B W/WAS BS-26X245MA
...
60
Spring (Included with Ref. No. 58) BS-166X44MA
...
61
GUARD, Rear, 22" Mower Deck BS-7103347YP
...
62
Wheel & Tire, Rear BS-071132MA
...
66
Deflector, Chute (Black) BS-1101097MA
...
--
Deflector, Chute (Gray) BS-672917MA
...
67
Push On Cap BS-028X42MA
...
68
Rod, Pivot BS-215X19 Z
...
69
Spring, Torsion BS-166X38MA
...
70
Cover, Mulch (Black) BS-1101098MA
...
--
Cover, Mulch (Gray) BS-672920MA
...
--
Book, Instruction BS-F-050408L
