228650x692B Murray - Walk-Behind Mower (2003)

Model: 228650x692B

Back To Assemblies

Save Part Not Listed?
product name

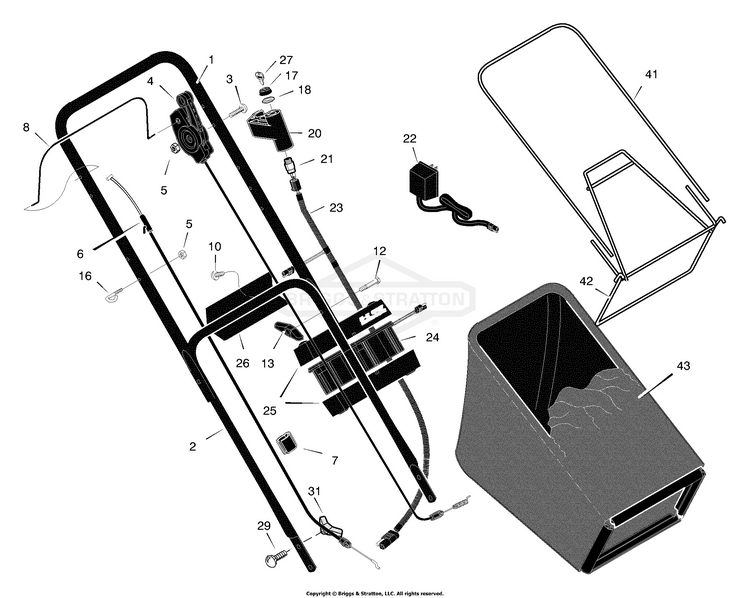

Handle And Grass Bag

...
...
1
HANDLE UPPER 22FDTM BS-1101557E701MA
...
2
Handle, Lower BS-672907E701MA
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101344MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101323MA
...
7
Fastener, Cable BS-1101353MA
...
8
Lever, Stop BS-1101076E701MA
...
10
Screw BS-26X220MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
CAP, Switch BS-847150
...
18
SET, Washer/Nut BS-847144
...
20
Case, Ignition BS-1101602MA
...
21
Switch Ignition & Key BS-776011MA
...
22
Charger, Battery BS-671992MA
...
23
Harness, Wiring BS-250X110
...
24
Battery BS-776014MA
...
25
Case, Battery BS-776013
...
26
Bracket, Battery BS-671959E701
...
27
Key, Ignition BS-672220
...
29
Bolt, Carriage BS-002X81MA
...
31
Knob, Plastic BS-071495MA
...
41
Frame, Top BS-1101075MA
...
42
Frame Assembly BS-1101074MA
...
43
Bag, Cloth BS-1101385
