228630x692D Murray - Walk-Behind Mower (2002)

Model: 228630x692D

Back To Assemblies

Save Part Not Listed?
product name

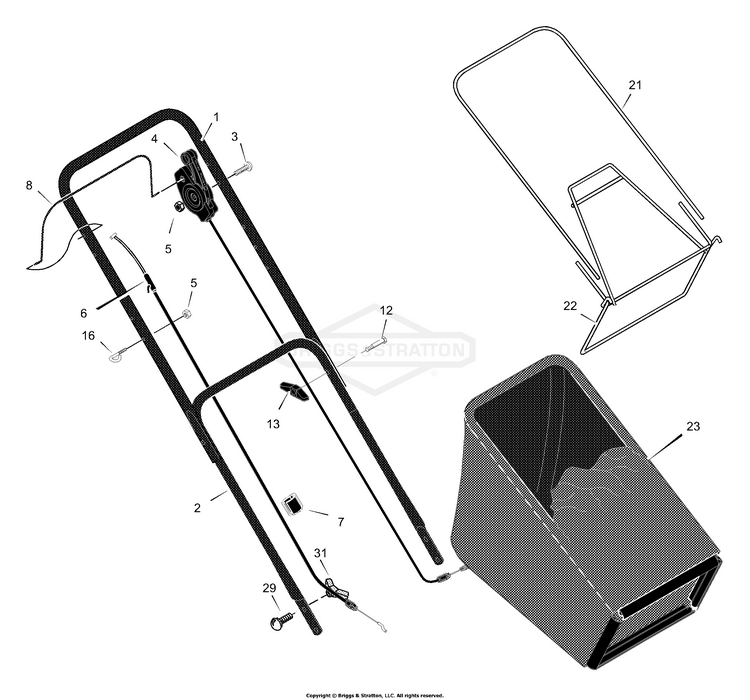

Handle And Grass Bag

...
...
1
HANDLE UPPER 22FDTM BS-1101557E701MA
...
2
Handle, Lower BS-672906E701MA
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101344MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101366MA
...
7
Fastener, Double Cable BS-1101353MA
...
8
Lever, Stop BS-1101076E701MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
29
Bolt, Carriage BS-002X81MA
...
30
Washer BS-17X168ZMA
...
31
Knob, Plastic BS-071495MA
...
21
Frame, Top BS-1101075MA
...
22
Frame Assembly BS-1101074MA
...
23
Bag, Cloth BS-1101006
