228610x6A Murray - Walk-Behind Mower (2001)

Model: 228610x6A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

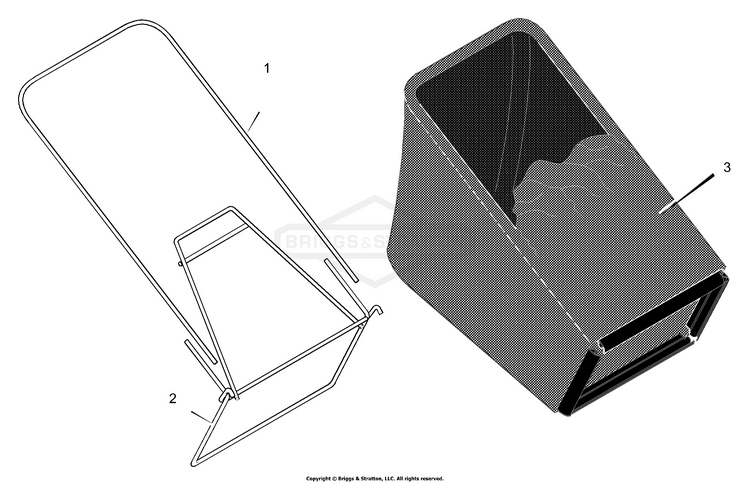

Bag Assembly

...
...
1
Tube, Bag BS-1101075MA
...
2
Frame Assembly BS-1101083
...
3
Bag, Cloth BS-1101005MA

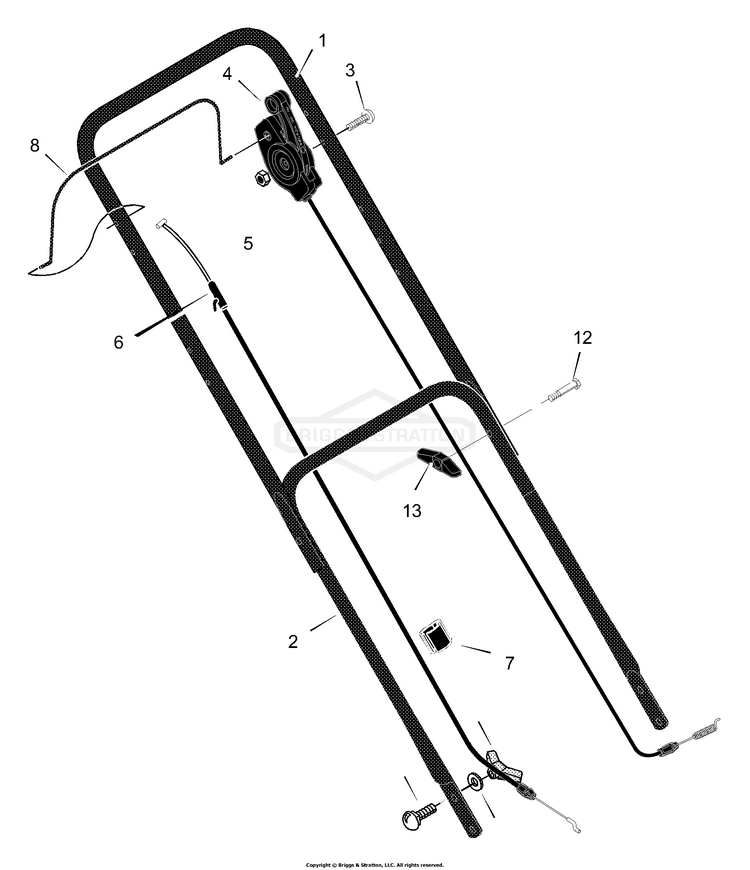

Handle Assembly

...
...
1
Handle, Upper BS-1101099-846
...
2
Handle, Lower BS-672906-846
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101344MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101365MA
...
7
Fastener, Double Cable BS-1101353MA
...
8
Lever, Stop BS-1101076-850
...
10
Screw BS-26X220MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
29
Bolt, Carriage BS-002X81MA
...
30
Washer BS-17X168ZMA
...
31
Knob, Plastic BS-071495MA

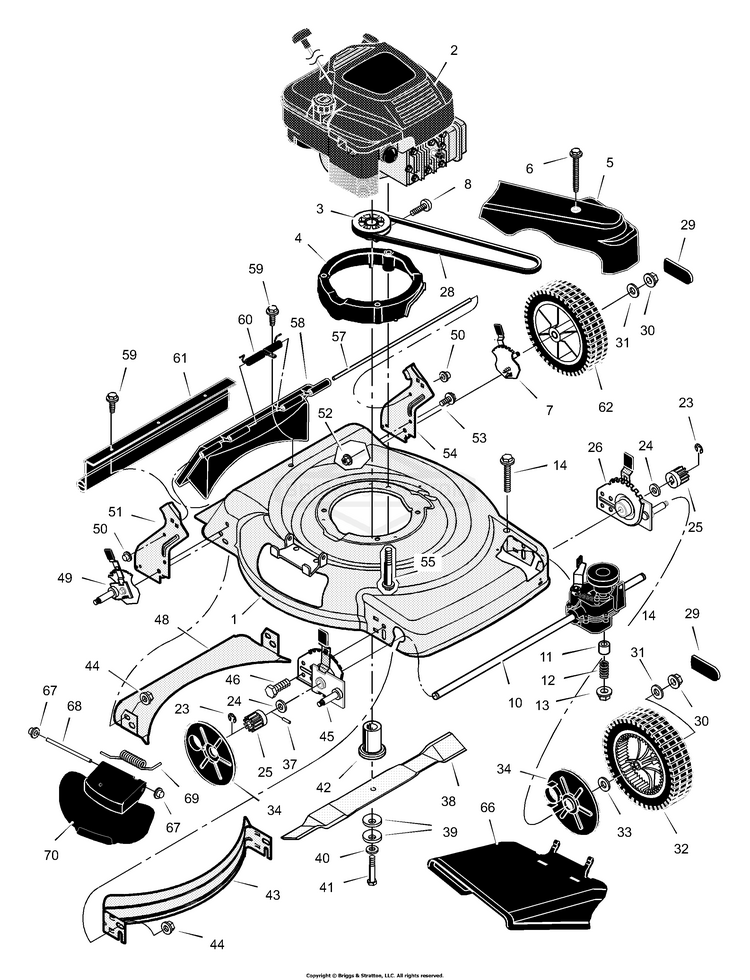

Mower Housing Assembly

...
...
3
Pulley, Drive BS-1101436MA
...
4
Spacer, Engine (Black) BS-1101331MA
...
5
Cover, Belt (Black) BS-1101334MA
...
6
Screw BS-26X304MA
...
7
Adjuster, Left Rear Height BS-672605MA
...
8
Screw BS-26X303MA
...
10
Transmission * BS-1101435MA
...
11
Spacer BS-043844MA
...
12
Spring, Compression BS-164X27MA
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
23
E-Ring BS-011X16MA
...
24
Washer BS-17X186MA
...
25
Gear, Pinion BS-071792MA
...
26
Adjuster, Left Front Height BS-1101079MA
...
28
Belt BS-37X116MA
...
29
Cap, Hub BS-672122MA
...
30
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
WASHER, FLAT, .377X1 BS-703966
...
32
Wheel & Tire, Drive BS-071133MA
...
33
Washer BS-017X75MA
...
34
Cover, Dust BS-071780MA
...
37
Pin, Drive BS-043629MA
...
38
Blade BS-672573E701MA
...
39
Washer, Belleville BS-17X137MA
...
40
Washer BS-17X124MA
...
41
Bolt BS-01X144MA
...
42
Adapter, Blade BS-1101336MA
...
43
Baffle, Front (Included with Ref. No. 1) BS-672915E700
...
44
NUT, 3/8-16 BS-703333
...
45
Adjuster, Right Front Height BS-1101078MA
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
48
Baffle, Rear (Included with Ref. No. 1) BS-672916-850
...
49
Adjuster, Right Rear Height BS-1101086MA
...
50
Push On Cap (Included with Ref. No. 58) BS-028X49MA
...
51
Bracket, Right Handle BS-1101238-850
...
52
NUT, 5/16-18, GR5 BS-703409
...
53
CAPSCREW,5/16-18X.625 BS-703822
...
54
Bracket, Left Handle BS-1101239-850
...
55
Bolt, Engine BS-025X11MA
...
57
Rod, Pivot (Included with Ref. No. 58) BS-215X21MA
...
58
Door, Rear (Black) BS-1101070MA
...
59
SCREW-#10X.5 B W/WAS BS-26X245MA
...
60
Spring (Included with Ref. No. 58) BS-166X44MA
...
61
GUARD, Rear, 22" Mower Deck BS-7103347YP
...
62
Wheel & Tire, Rear BS-071132MA
...
66
Deflector, Chute BS-672150
...
67
Push On Cap BS-028X42MA
...
68
Rod, Pivot BS-215X19 Z
...
69
Spring, Torsion BS-166X38MA
...
70
Cover, Mulch (Black) BS-672140
...
--
Book, Instruction BS-F-010466M
