228610x68D Murray - Walk-Behind Mower (2005)

Model: 228610x68D

Back To Assemblies

Save Part Not Listed?
product name

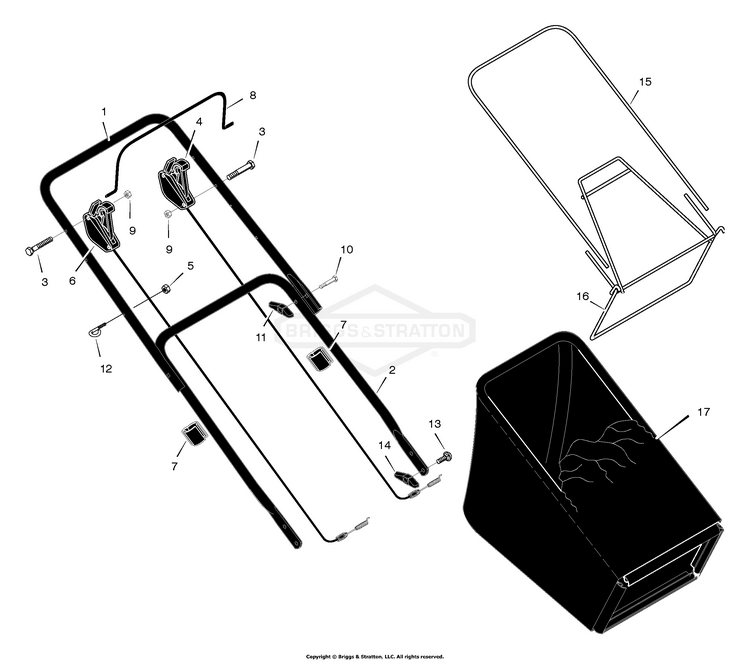

Handle & Bag Assembly

...
...
1
Handle, Upper BS-1101613E701
...
2
Handle, Lower BS-1102089E701
...
3
Bolt BS-26X307
...
4
Control, Drive BS-1101676MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Control, Starter BS-1101611MA
...
7
Fastener, Cable BS-1101353MA
...
8
Lever, Stop BS-1101612E701
...
9
Nut BS-15X142
...
10
Bolt BS-002X77MA
...
11
WINGKNOB, 5/16-18 BS-703065
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Bolt, Carriage BS-002X81MA
...
14
Knob, Plastic BS-071495MA
...
15
Tube, Bag BS-1101075MA
...
16
Frame Assembly BS-1101074MA
...
17
Bag, Cloth BS-1101005MA
