22859x8A Murray - Walk-Behind Mower (1996)

Model: 22859x8A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

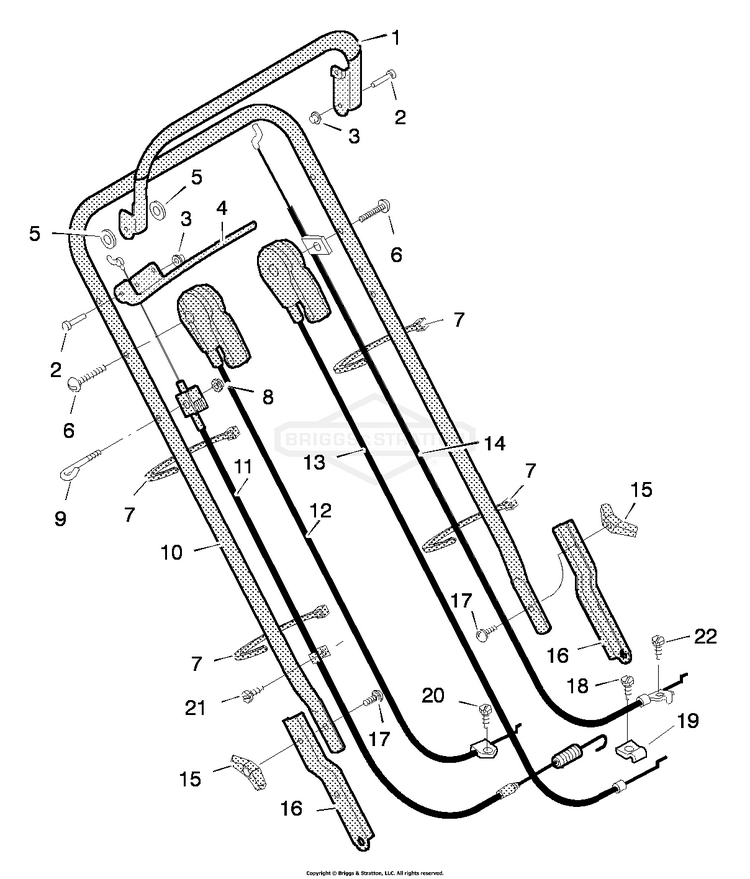

Handle Assembly

...
...
1
Stop Lever BS-071567
...
2
Pin BS-29X101
...
3
Push On Cap BS-028X42MA
...
4
Lever, Drive BS-071566
...
5
Washer BS-26X220MA
...
6
Screw BS-03X151
...
7
TIE,STRAP-REMOVABLE BS-071372MA
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
Guide, Rope BS-071893
...
10
Handle BS-071713E701MA
...
11
Cable, Drive BS-071895MA
...
12
Control, Speed BS-071894
...
13
Throttle BS-071896
...
14
Stop Cable BS-071897
...
15
Knob BS-071495MA
...
16
Bracket, Handle (Black) BS-71317E701
...
--
Bracket, Handle (Gray) BS-71317E724
...
17
Bolt, Carriage BS-002X81MA
...
20
Screw BS-26X268MA
...
21
Screw BS-26X259MA
