22856x50C Murray - Walk-Behind Mower (2000)

Model: 22856x50C

Back To Assemblies

Save Part Not Listed?
product name

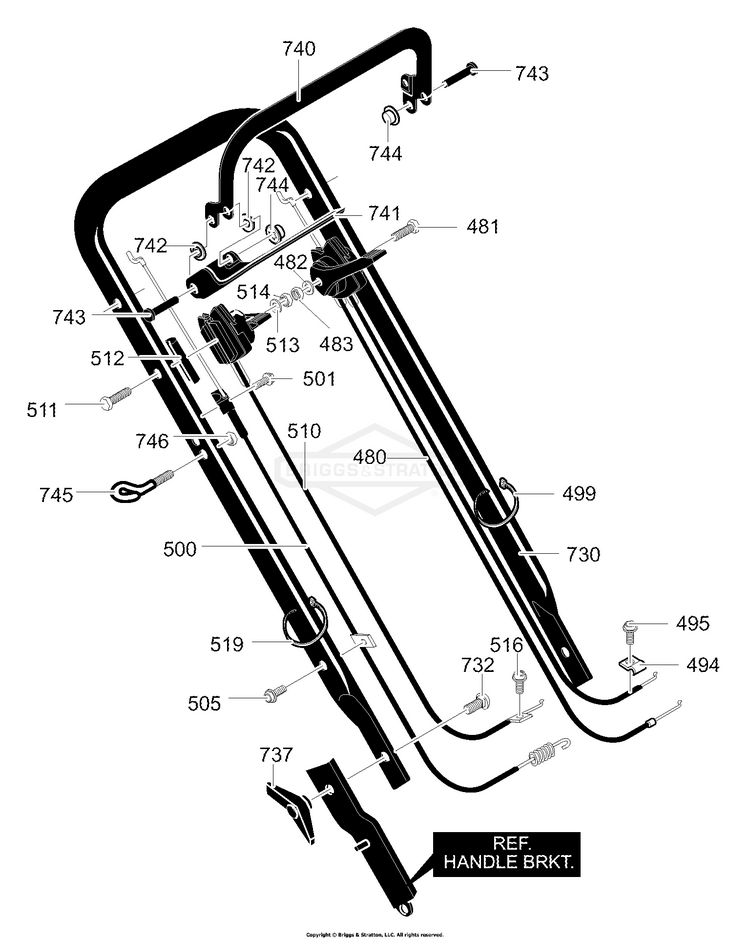

Handle Assembly

...
...
480
Cable, Restart & Throttle BS-671594MA
...
481
Screw, 1/4-20x2.50 BS-710166
...
482
Flatwasher BS-120385
...
483
Nut, 1/4-20 BS-710203
...
494
CABLE, CLUTCH / BRAKE BS-7012425YP
...
495
ROPE, Starter BS-66574
...
499
Cable Tie BS-57444
...
500
Cable, Drive Assy. BS-671593MA
...
501
Screw, #10-16x1.25 BS-710272
...
505
Screw, 10-16x.50 BS-710273
...
510
Cable, Shifter Speed BS-671595MA
...
511
PANEL, Control BS-711671
...
512
Spacer, T-Control BS-671635
...
513
Flatwasher BS-120385
...
514
Nut, 1/4-20 BS-710203
...
516
ROPE, Starter BS-66574
...
519
Cable Tie BS-712267
...
730
Handle BS-671713-806
...
732
Bolt, 5/16-18x1.5 Carr. BS-710176
...
737
Knob, Wing BS-671495
...
740
Lever, Stop BS-671567
...
741
Lever, Drive Control BS-671566MA
...
742
Washer, Nylon BS-339065MA
...
743
JET, Pilot BS-231764
...
744
JET, Main BS-231739
...
745
Rope Guide BS-643956
...
746
Nut, 1/4-20 BS-710203
