22856x50C Murray - Walk-Behind Mower (2000)

Model: 22856x50C

Back To Assemblies

Save Part Not Listed?
product name

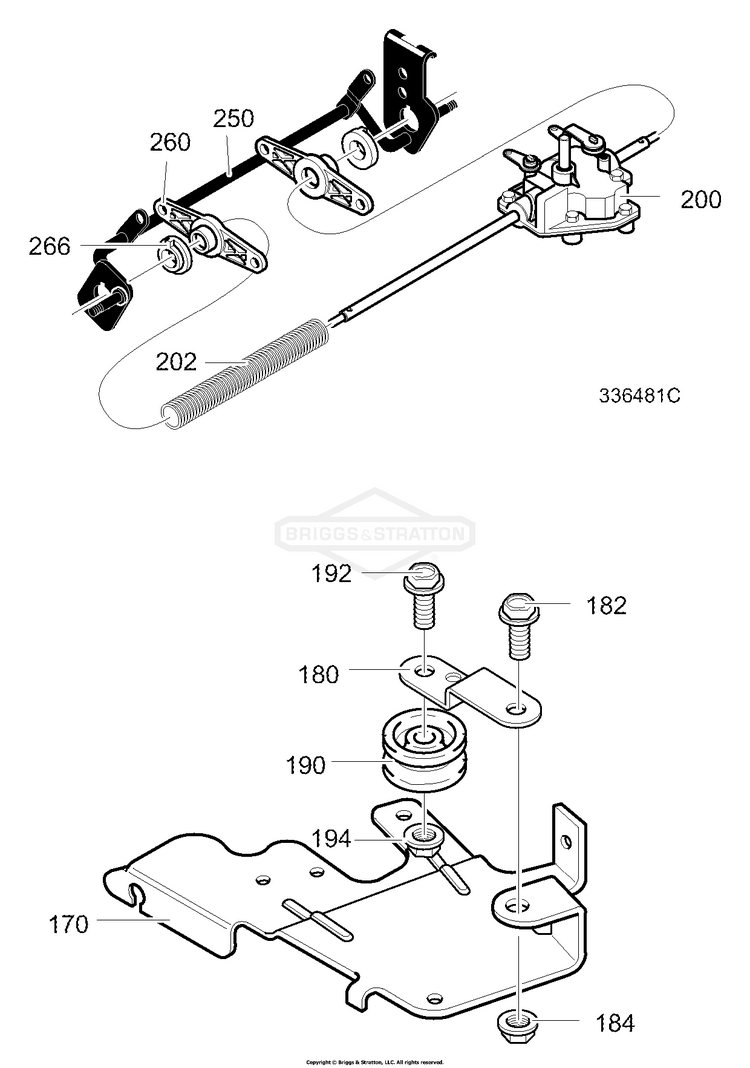

Transmission Assembly

...
...
170
Bracket BS-338842
...
180
Idler, Arm BS-336480
...
182
Bolt, HHSH 3/8-16 BS-710200
...
184
Nut, 3/8-16 BS-710140
...
190
Pulley, Idler BS-671054
...
192
Screw, 5/16-18 x 1.13 BS-180080
...
194
Nut, 5/16-18 BS-710205
...
200
Transmission 3 Speed BS-671374
...
202
Shield, Axle BS-643649
...
250
Crossbar Assy., Rear BS-671315-860
...
260
Support, Axle w/bring BS-671411
...
266
Bearing, Lifter BS-643788
