22856x50C Murray - Walk-Behind Mower (2000)

Model: 22856x50C

Back To Assemblies

Save Part Not Listed?
product name

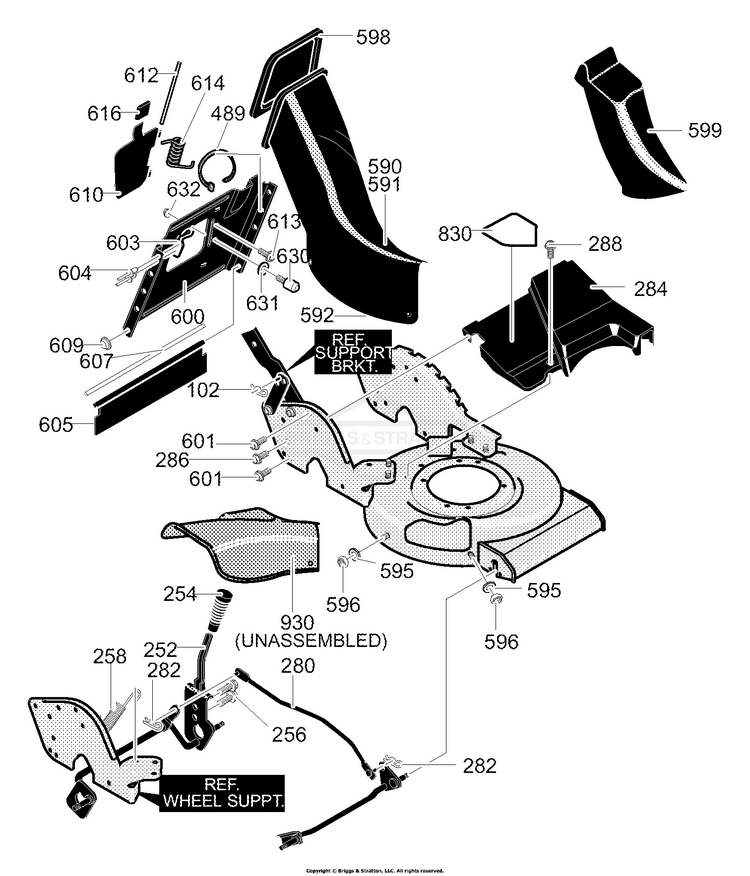

Height Adjust & Discharge

...
...
102
Hair Pin BS-710291
...
252
Spring, Lever Hgt/Adj BS-672278MA
...
254
Knob, Hgt/Adj BS-671297MA
...
256
Screw, 1/4-20x.63 BS-710274
...
258
Tension Spring BS-710337
...
280
Lifter, Assy Link BS-671328-860
...
282
Hair Pin BS-710292
...
284
Rear Cover BS-671836
...
286
Screw, 1/4-20x.63 BS-710180
...
288
Screw, 10-16x.75 BS-710269
...
489
Cable Tie BS-57444
...
590
Chute RR Discharge BS-671837
...
591
Chute, Floor Rear BS-672230
...
592
Rivet, Pop BS-710260
...
595
Flatwasher BS-710142
...
596
Nut, 5/16-18 BS-710205
...
598
Gasket, Compression BS-071906
...
599
Plug, Mulcher BS-671373
...
600
Plate, Bag BS-671298-806
...
601
Screw, 5/16-18 x 0.62 BS-710276
...
603
Rope Guide BS-671443MA
...
604
Rivet, Pop BS-710259
...
605
Guard, Rear Toe BS-671289MA
...
607
Rod, Rear Guard BS-671319
...
609
JET, Main BS-231739
...
610
Door, Rear BS-671299-806
...
612
Pin, Hinge Door BS-671300
...
613
Screw, #8-32x.38 BS-710267
...
614
Spring, Torsion BS-335572
...
616
Grip, Door BS-671306
...
630
Pin, 5/16-18 BS-53446
...
631
Flatwasher BS-120393
...
632
Nut, 5/16-18 BS-120376
...
830
Decal, Cut Finger BS-44X5430MA
...
930
Chute, Side Discharge BS-671839MA
...
--
Instruction Book BS-F-000436M
