22855x29A Murray - Walk-Behind Mower (1996)

Model: 22855x29A

Save Part Not Listed?
product name

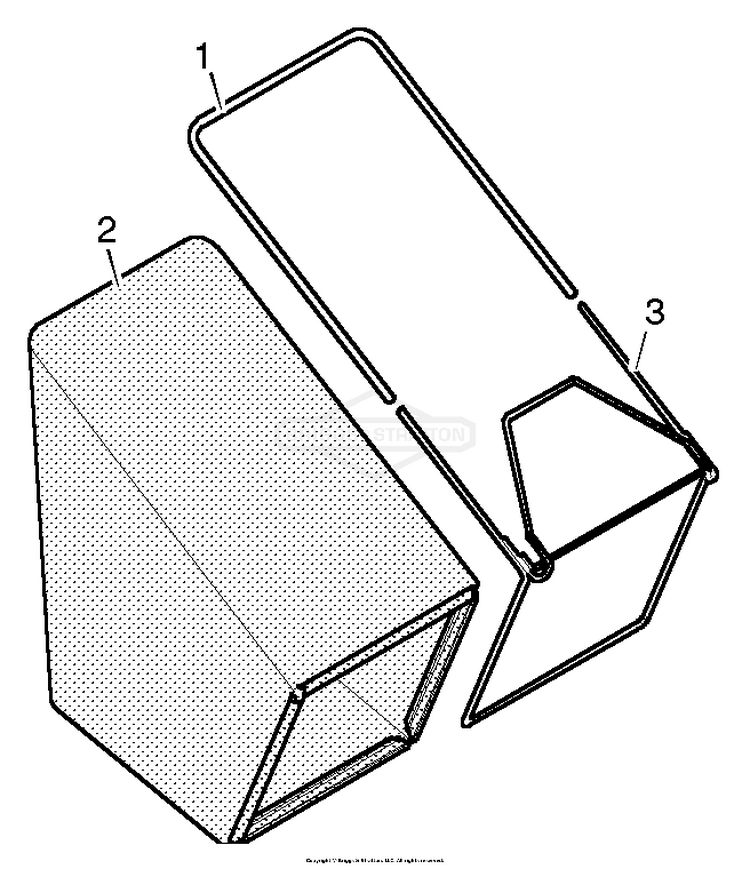

Bag Assembly

...
...
1
Tube, Grass Bag BS-071307
...
2
Bag BS-071302
...
2
Bag 1996 Number BS-071702
...
3
Frame BS-071303MA

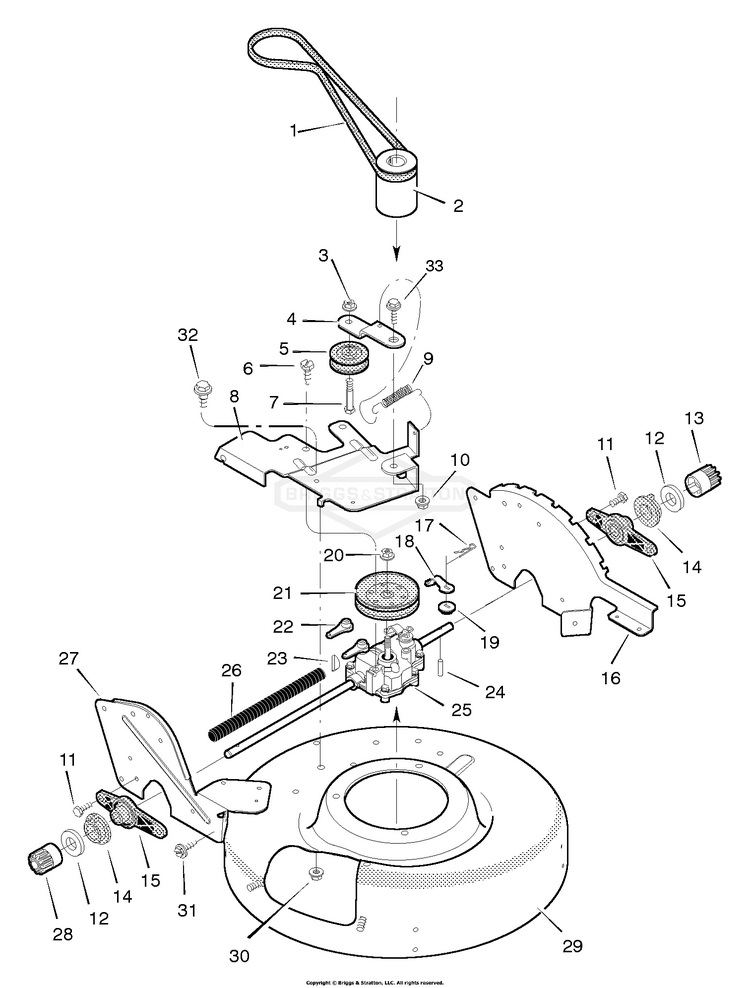

Drive Assembly

...
...
1
Belt BS-037X77MA
...
2
Adaptor, Blade BS-071285
...
3
NUT, HEX FLNG,5/16-18 BS-704067
...
4
Arm, Idler BS-713092
...
5
Pulley, Idler BS-071054MA
...
6
Screw BS-26X216MA
...
7
Bolt BS-01X141MA
...
8
Bracket, Transmission BS-713762
...
9
SPRING EXTENSION BS-165X46MA
...
10
NUT, CNTR LCK, 3/8-16 BS-703893
...
11
Screw BS-26X275MA
...
12
Washer BS-17X186MA
...
13
Gear, Left Pinion BS-071287
...
14
Bearing, Lifter BS-043788MA
...
15
Support, Axle BS-071411MA
...
16
Index, Height Adjuster BS-071368E701
...
17
Pin, Hair BS-031X10MA
...
18
Arm, Clutch BS-400312
...
19
Support, Clutch BS-400313
...
20
Locknut BS-190X15
...
21
Pulley, Transmission BS-071288
...
22
Arm, Shift BS-400311
...
23
Key, Woodruff BS-400314
...
24
Pin, Drive BS-043629MA
...
25
Transmission BS-071374
...
26
Shield, Axle BS-043649
...
27
Support, Wheel BS-71370E701
...
28
Gear, Right Pinion BS-071286
...
29
Housing (Red) BS-71801 E245
...
30
NUT, 3/8-16 BS-703333
...
31
Screw BS-26X259MA
...
32
Bolt, Shoulder BS-009X49MA
...
33
Bolt, Shoulder BS-710200

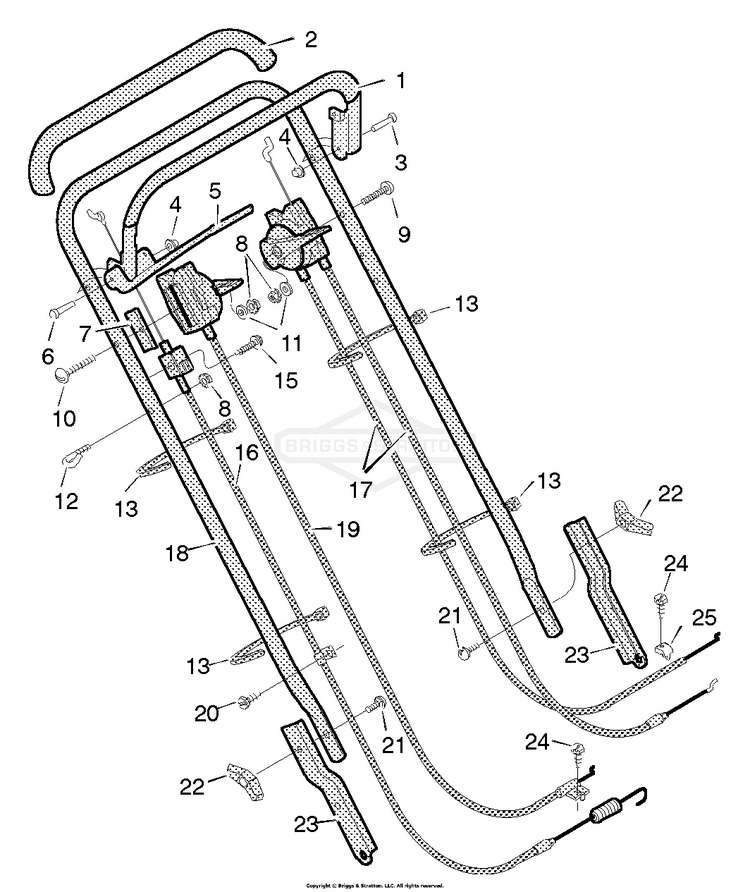

Handle Assembly

...
...
1
Stop Lever BS-071567
...
2
Grip, Foam BS-071637
...
3
Pin BS-29X102
...
4
Push On Cap BS-028X42MA
...
5
Lever, Drive BS-071566
...
6
Pin BS-29X101
...
7
Spacer BS-071635
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
Bolt BS-01X152MA
...
10
Bolt BS-01X151
...
11
Washer BS-017X38MA
...
12
GUIDE, ROPE BS-043956MA
...
13
TIE,STRAP-REMOVABLE BS-071372MA
...
15
Screw BS-26X256MA
...
16
Cable, Drive BS-071593
...
17
Throttle and Stop Cable BS-071594
...
18
Handle BS-071713E701MA
...
19
Control, Speed BS-071595
...
20
Screw BS-26X259MA
...
21
Bolt, Carriage BS-002X81MA
...
22
Knob BS-071495MA
...
23
Bracket, Handle BS-71317E701
...
24
Screw BS-26X268MA
...
25
Clamp BS-042294

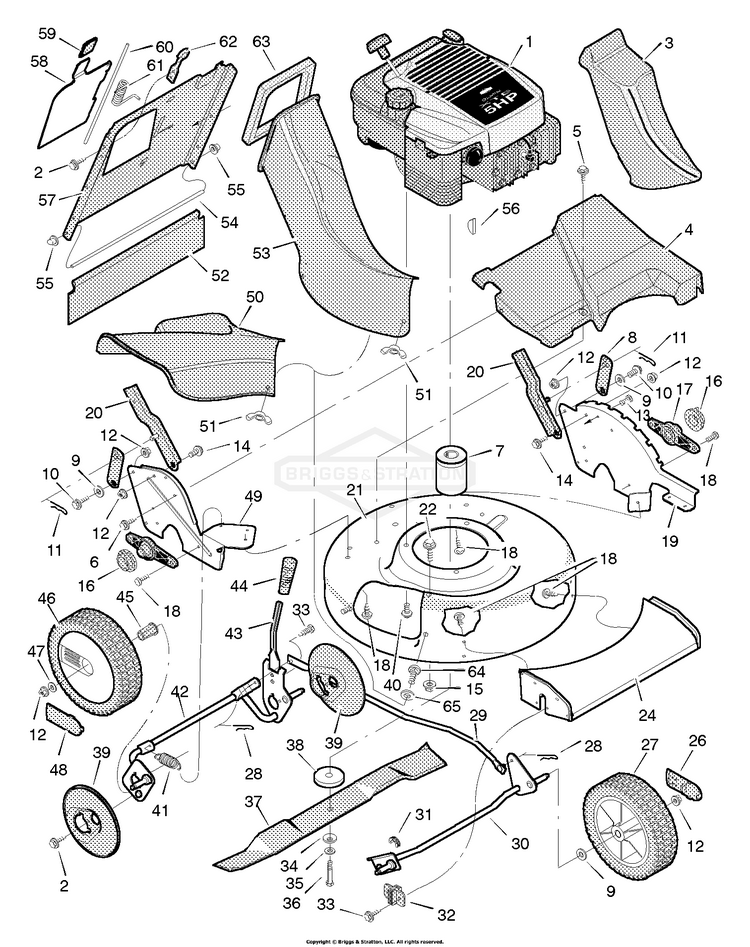

Mower Housing Assembly

...
...
2
SCREW, HEX, 1/4-20X.5 BS-704130
...
3
Plug, Mulcher BS-071373MA
...
4
Cover, Rear BS-071547
...
5
Screw BS-26X220MA
...
6
Screw BS-006X74MA
...
7
Adapter, Blade BS-071285
...
8
Strap, Adjuster BS-71318E701
...
9
WASHER,SPRING .52X.99 BS-0020X3MA
...
10
Bolt, Shoulder BS-009X49MA
...
11
Pin, Hair BS-031X10MA
...
12
NUT, CNTR LCK, 3/8-16 BS-703893
...
13
NUT, 3/8-16 BS-703333
...
14
Bolt, Shoulder BS-710200
...
16
Bearing, Lifter BS-043788MA
...
17
Support, Axle BS-071411MA
...
18
Screw BS-26X275MA
...
19
Index, Height Adjuster BS-071368E701
...
20
Bracket, Handle BS-71317E701
...
21
Housing (Red) BS-71801 E245
...
22
Bolt, Shoulder BS-009X17MA
...
24
Panel, Front BS-071329E701
...
26
Cap - Ball Bearing (Red) BS-071136
...
27
Wheel, Front (Gray) BS-071134MA
...
28
Pin, Hair BS-0031X9MA
...
29
Link, Lifter BS-071328
...
30
Crossbar Assembly, Front BS-71325E701
...
31
Bushing BS-071291MA
...
32
Clip, Front Axle BS-071292
...
33
SCREW.25-20 S-T BS-26X263MA
...
34
Washer, Belleville BS-17X137MA
...
35
Washer BS-17X124MA
...
36
Bolt, Hex BS-01X148MA
...
37
Blade BS-1101120E701MA
...
38
Spacer, Adapter BS-071470MA
...
39
Cover, Dust BS-043616
...
40
Bolt, Engine BS-0025X6MA
...
41
Spring, Extension BS-165X97
...
42
Crossbar Assembly, Rear BS-671315E701MA
...
43
Lever, Height Adjuster BS-71293E701
...
44
Grip, Height Adjuster BS-071297MA
...
45
Bushing BS-043886MA
...
46
Wheel, Rear (Gray) BS-071133MA
...
47
WASHER, FLAT, .377X1 BS-703966
...
48
Hub Cap (Red) BS-071135
...
49
Support, Wheel BS-71370E701
...
50
Deflector, Chute BS-071295MA
...
51
Nut, Wing BS-1486
...
52
Guard, Rear BS-071289
...
53
Deflector, Rear BS-071381
...
54
Rod BS-71319 Z
...
55
Cap, Push On BS-028X42MA
...
56
KEY, Drive Pulley BS-692193
...
57
Plate, Bagger BS-71298E701
...
58
Door, Rear BS-71299E701
...
59
Grip, Door BS-071306
...
60
SCREW, Square Head Set, 5/16-18 x 1/2 G8 BS-1928721SM
...
61
Spring, Torsion BS-166X36MA
...
62
Guide, Rope BS-071443
...
63
Seal BS-071471
...
64
BOLT BS-703159
...
65
RETAINER, GR5, 5/16 BS-703297
...
--
Instruction Book BS-F-96444
