228511x8E Murray - Walk-Behind Mower (2004)

Model: 228511x8E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

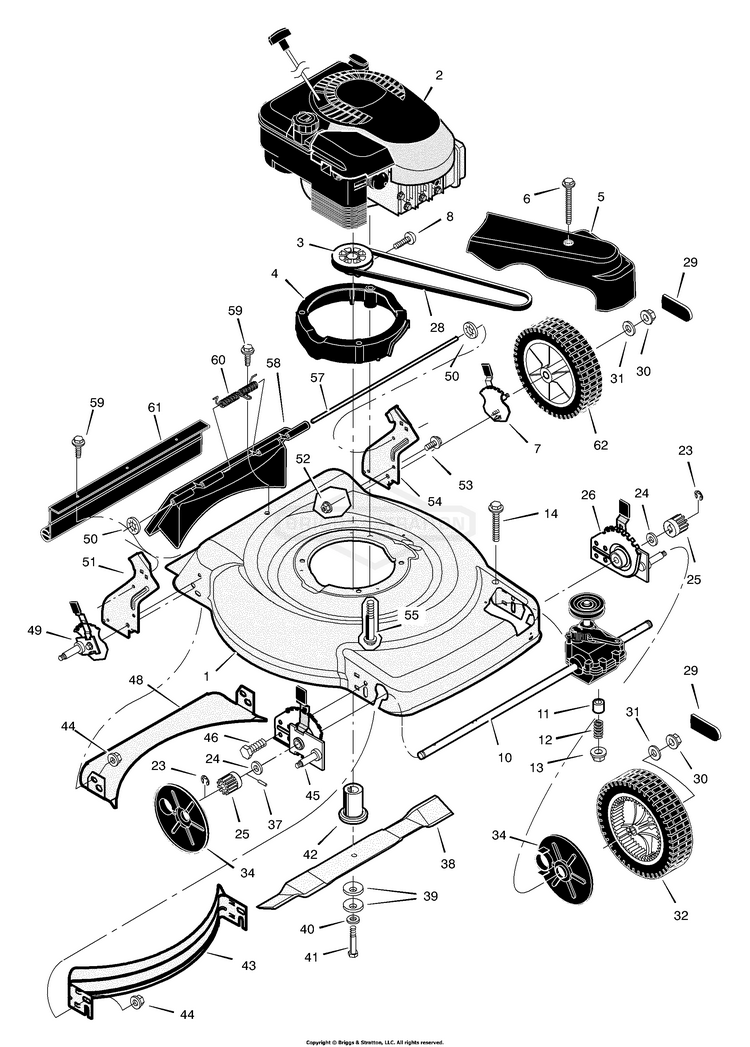

Mower Housing Assembly

...
...
1
Housing BS-11013239E700
...
3
Pulley, Drive BS-1101653MA
...
4
Spacer, Engine (Black) BS-1101331MA
...
5
Cover, Belt (Black) BS-1101596MA
...
6
Screw BS-26X304MA
...
7
Adjuster, Left Rear Height BS-1102035MA
...
8
Screw BS-26X303MA
...
10
Transmission * BS-1101571MA
...
11
Spacer BS-043844MA
...
12
Spring, Compression BS-164X27MA
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
23
E-Ring BS-011X16MA
...
24
Washer BS-17X186MA
...
25
Gear, Pinion BS-071792MA
...
26
Adjuster, Left Front Height BS-1101905MA
...
28
Belt BS-37X123MA
...
29
Cap, Hub BS-043615MA
...
30
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
WASHER, FLAT, .377X1 BS-703966
...
32
Wheel & Tire, Drive BS-071133MA
...
34
Cover, Dust BS-071780MA
...
37
Pin, Drive BS-043629MA
...
38
Blade BS-1101120E701MA
...
39
Washer, Belleville BS-17X137MA
...
40
Washer BS-17X124MA
...
41
Bolt BS-01X144MA
...
42
Adapter, Blade BS-1101336MA
...
43
Baffle, Front (Included with Ref. No. 1) BS-672915E701MA
...
44
NUT, 3/8-16 BS-703333
...
45
Adjuster, Right Front Height BS-1101904MA
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
48
BAFFLE, REAR, 22 DEC (Included with Ref. No. 1) BS-7300854DYP
...
49
Adjuster, Right Rear Height BS-1102034MA
...
50
Retainer, Push (Included with Ref. No. 58) BS-028X49MA
...
51
BRACKET, Lower Handle, RH BS-7300890ZYP
...
52
NUT, 5/16-18, GR5 BS-703409
...
53
CAPSCREW,5/16-18X.625 BS-703822
...
54
Bracket, Left Handle BS-1101239E701MA
...
55
Bolt, Engine BS-025X11MA
...
57
Rod, Pivot (Included with Ref. No. 58) BS-215X21MA
...
58
Door, Rear (Black) BS-1101070MA
...
59
SCREW-#10X.5 B W/WAS BS-26X245MA
...
60
Spring (Included with Ref. No. 58) BS-166X44MA
...
61
GUARD, Rear, 22" Mower Deck BS-7103347YP
...
62
Wheel & Tire, Rear BS-071132MA
...
--
Book, Instruction BS-F-040412L
