228511x24B Murray - Walk-Behind Mower (2005)

Model: 228511x24B

Save Part Not Listed?
product name

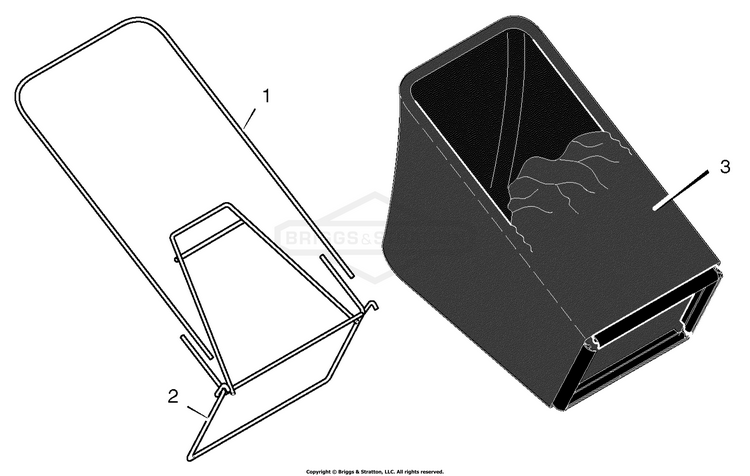

Bag Assembly

...
...
1
Tube, Bag BS-1101075
...
2
Frame Assembly BS-1101074
...
3
Bag, Cloth -Black BS-1101005

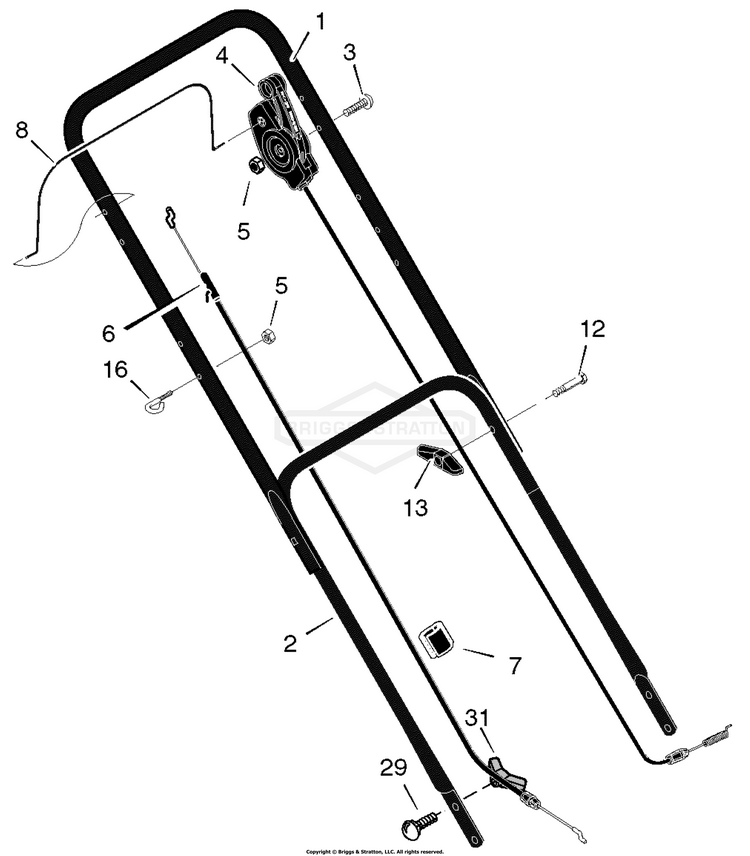

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101557E701
...
2
Handle, Lower (Black) BS-1102089E701
...
3
Bolt BS-025X14
...
4
Control, Drive BS-1101670
...
5
Locknut BS-15X116
...
6
Cable, Stop (Briggs) BS-1101365
...
7
Fastener, Double Cable BS-1101353
...
8
Lever, Stop BS-1101076E701
...
12
Bolt BS-002X77
...
13
Knob BS-71294
...
16
Guide, Rope BS-71530
...
29
Bolt, Carriage BS-002X81
...
31
Knob, Plastic BS-71495

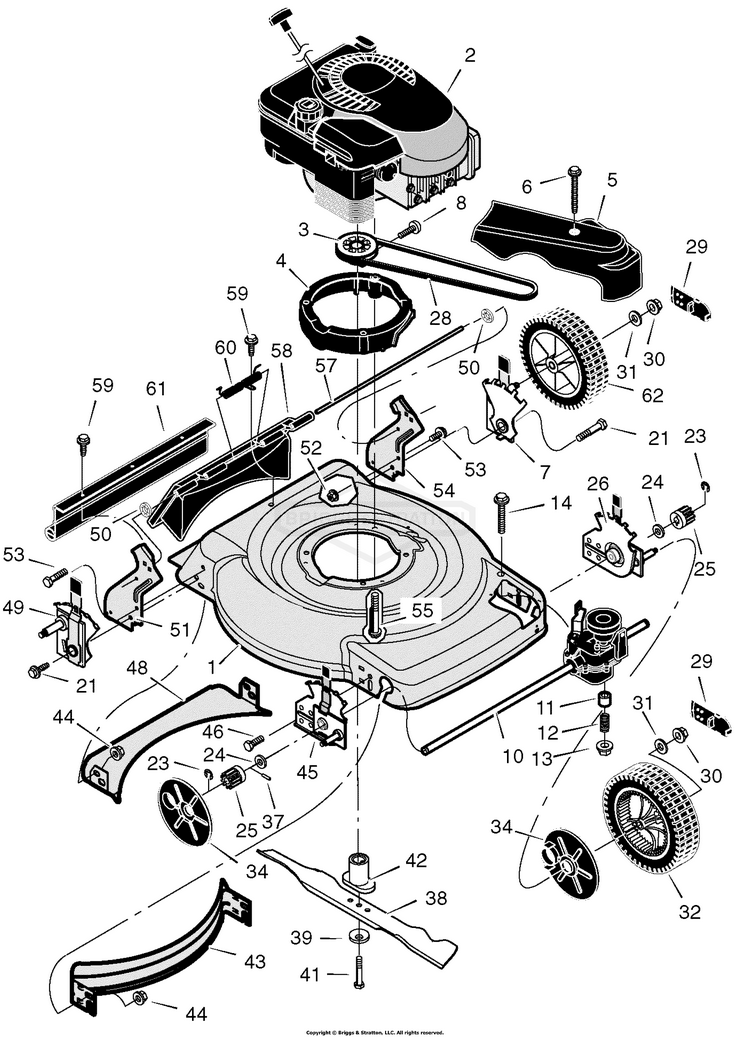

Mower Housing Assembly

...
...
1
Housing BS-7501041
...
3
Pulley, Drive BS-1101653
...
4
Spacer, Engine (Black) BS-1101639
...
5
Cover, Belt (Black) BS-1101596
...
6
Screw BS-26X304
...
7
Adjuster, Left Rear Height BS-1102201
...
8
Screw BS-26X303
...
10
Transmission * BS-1101571
...
11
BELT, 73.75 AA BS-7043844YP
...
12
Spring, Compression BS-164X27
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
21
Bolt BS-1X111
...
23
E-Ring BS-011X16
...
24
Washer BS-17X186
...
25
Gear, Pinion BS-71792
...
26
Adjuster, Left Front Height BS-1101029
...
28
Belt BS-37X123
...
29
Cap, Hub BS-43615
...
30
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
Washer BS-17X169
...
32
Wheel & Tire, Front BS-71133
...
34
Cover, Dust BS-71780
...
37
Pin, Drive BS-43629
...
38
Blade BS-1101823E701
...
39
Washer, Belleville BS-1101989
...
41
Bolt BS-01X144
...
42
Adapter, Blade BS-1101826
...
43
Baffle, Front (Included with Ref. No. 1) BS-1102244E700
...
44
NUT, 3/8-16 BS-703333
...
45
Adjuster, Right Front Height BS-1101028
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
48
Baffle, Rear (Included with Ref. No. 1) BS-672916E700
...
49
Adjuster, Right Rear Height BS-1102200
...
50
Retainer, Push (Included with Ref. No. 58.) BS-028X49
...
51
Bracket, Right Handle BS-1101238E701
...
52
Nut, Flange BS-015X79
...
53
CAPSCREW,5/16-18X.625 BS-703822
...
54
Bracket, Left Handle BS-1101239E701
...
55
Bolt, Engine BS-025X11
...
57
Rod, Pivot (Included with Ref. No. 58.) BS-215X21
...
58
Door, Rear (Black) BS-1101070
...
59
Screw BS-26X245
...
60
Spring (Included with Ref. No. 58.) BS-166X44
...
61
Guard, Rear BS-1101105
...
62
Wheel & Tire, Rear BS-71132
...
--
Book, Instruction BS-F-050408L
