22805x31A Murray - Walk-Behind Mower (2000)

Model: 22805x31A

Back To Assemblies

Save Part Not Listed?
product name

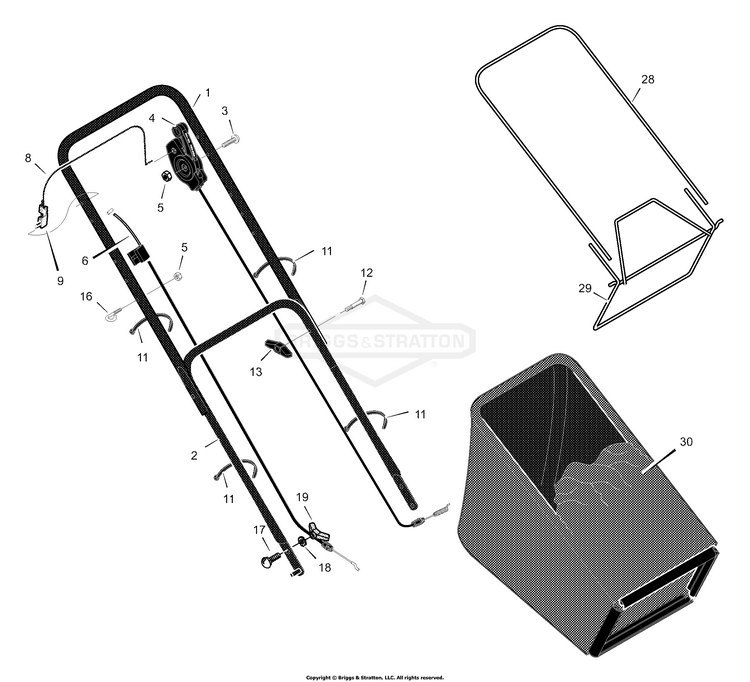

Handle & Bag Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
2
Handle, Lower (Black) BS-1101082E701MA
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-672877MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672839
...
8
Engine Stop Lever BS-672879E700
...
9
Bracket, Stop Lever BS-43628 BC
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
Bolt, Carriage BS-1101113
...
18
WASHER, EXT, 3/8 BS-703864
...
19
NUT, Wing, 3/8-16 BS-1101106MA
...
28
TUBE-BAG TOP 20RB BS-071592MA
...
29
Frame Assembly BS-1101074MA
...
30
Bag, Cloth BS-1101003
