22775x9A Murray - Walk-Behind Mower (1999)

Model: 22775x9A

Back To Assemblies


product name

Popular Parts

Popular Parts


Handles

...
...
1
Handle, Upper - Straight (Black) BS-71094E701

...
--
Handle, Upper - Straight (Gray) BS-71094E724

...
2
Handle, Lower (Black) BS-43842E701

...
--
Handle, Lower (Gray) BS-43842E724

...

...
4
Knob, Plastic BS-71294

...
7
NUT, 1/4-20, NYLOCK BS-703232

...
8

...
9
Throttle Control (For Models with Briggs & Stratton engines.) BS-71178

...
--
Throttle Control (For Models with Tecumseh engines.) BS-71172

...
10

...
11

...
12
Guide, Rope BS-43956

...
13
Stop Lever - Straight BS-43651 E700

...
14
Bracket, Stop Lever BS-43628 BC

...
15
Fastener, Cable BS-71372

...
16
ROD, TRAIL SHIELD PIV BS-7043845YP

...
--
(C) ROD CONTROL JOY BS-7043880YP

...
17
Handle, Upper - Curved (Black) BS-71093E701

...
--
Handle, Upper - Curved (Gray) BS-71093E724

...
18
Stop Lever - Curved BS-43791

...
19
Screw For Models with Briggs & Stratton engines. BS-26X268MA

...
20
Clamp (For Models with Briggs & Stratton engines) BS-42294

...
21
Lever, Drive - Straight BS-43722

...
22
Push On Cap BS-028X48MA

...
23

...
24
Cable, Drive BS-71036

...
25
Lever, Drive - Curved BS-43723

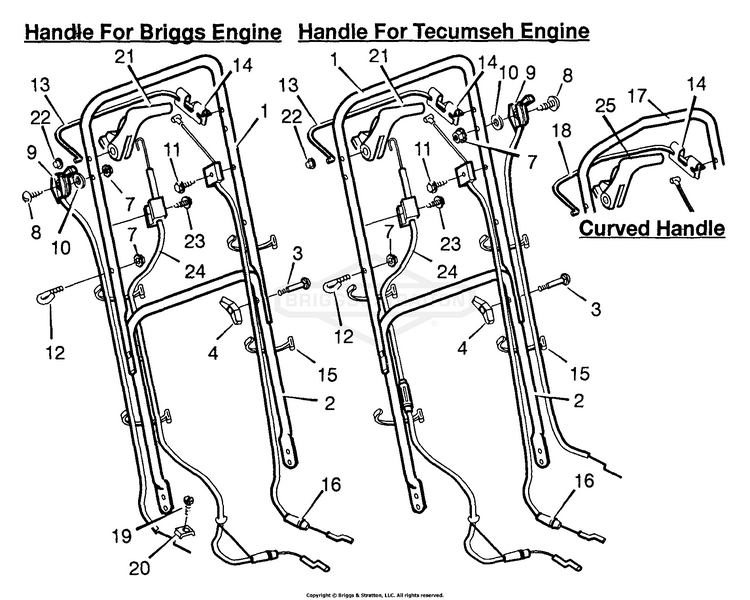

Schematic Image Zoomed
