22775x8B Murray - Walk-Behind Mower (1994)

Model: 22775x8B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

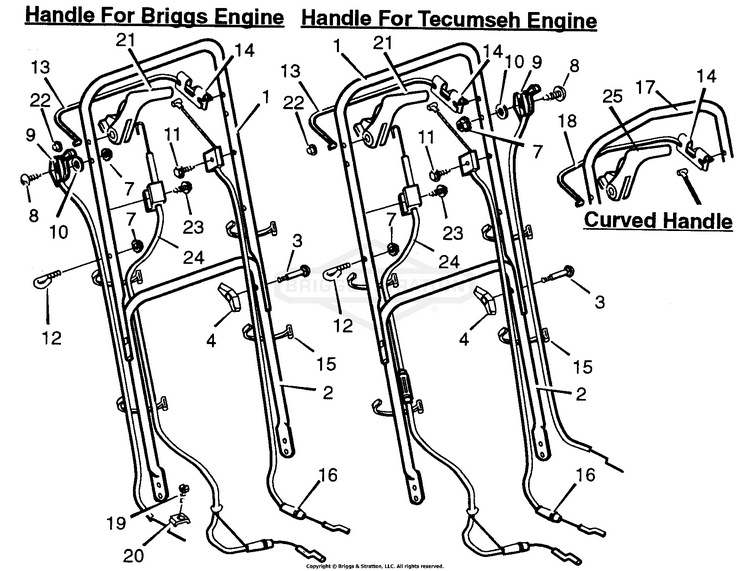

Handle Assembly

...
...
1
Handle, Upper - Straight (Black) BS-71094E701
...
--
Handle, Upper - Straight (Gray) BS-71094E724
...
2
Handle, Lower (Black) BS-43842E701
...
--
Handle, Lower (Gray) BS-43842E724
...
3
Bolt BS-002X77MA
...
4
Knob, Plastic BS-71294
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
Throttle Control (For Models with Briggs & Stratton engines.) BS-71178
...
--
Throttle Control (For Models with Tecumseh engines.) BS-71172
...
10
Washer BS-17X184MA
...
11
Screw BS-26X220MA
...
12
Guide, Rope BS-43956
...
13
Stop Lever - Straight BS-43651 E700
...
14
Bracket, Stop Lever BS-43628 BC
...
15
Fastener, Cable BS-71372
...
16
ROD, TRAIL SHIELD PIV BS-7043845YP
...
--
(C) ROD CONTROL JOY BS-7043880YP
...
17
Handle, Upper - Curved (Black) BS-71093E701
...
--
Handle, Upper - Curved (Gray) BS-71093E724
...
18
Stop Lever - Curved BS-43791
...
19
Screw * BS-26X268MA
...
20
Clamp (For Models with Briggs & Stratton engines) BS-42294
...
21
Lever, Drive - Straight BS-43722
...
22
Push On Cap BS-028X48MA
...
23
Screw BS-26X256MA
...
24
Cable, Drive BS-71036
...
25
Lever, Drive - Curved BS-43723

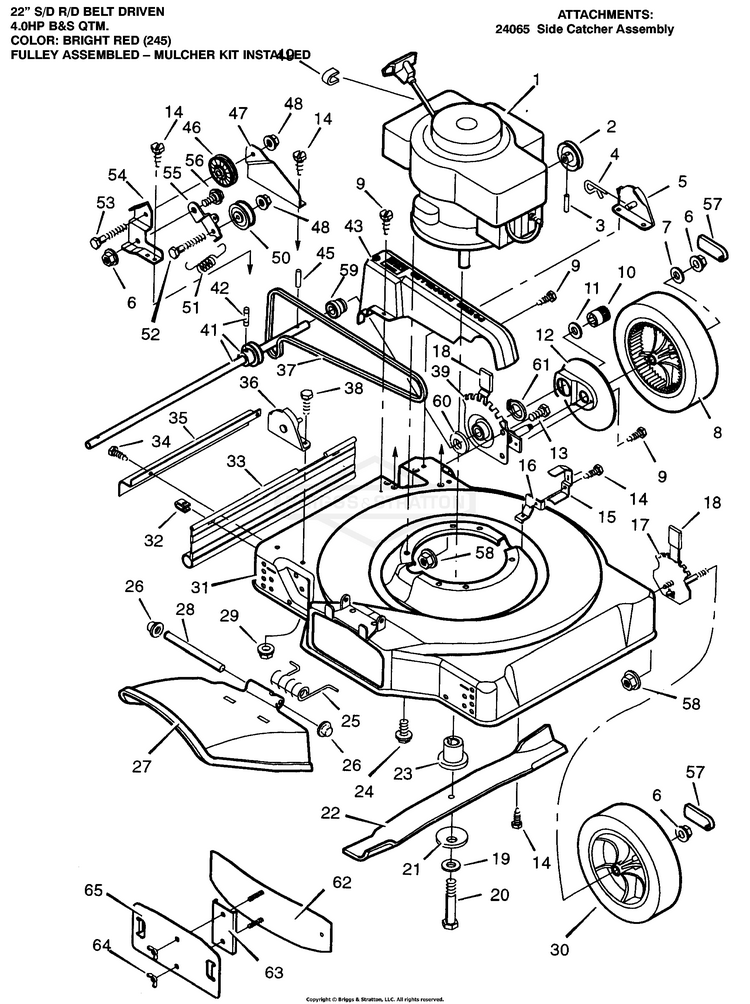

Mower Housing Assembly

...
...
1
Engine * BS-122782-3320-01
...
2
Pulley BS-71434
...
3
Pin, Spring BS-032X64MA
...
4
Pin, Hair BS-031X10MA
...
5
Bracket, Left Handle BS-42713E700
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
WASHER, FLAT, .377X1 BS-703966
...
8
Wheel, Drive BS-43617
...
9
SCREW-#10X.5 B W/WAS BS-26X245MA
...
10
PLUG, 120/240 Volt 20 Amp BS-43630GS
...
--
Gear, Left Pinion BS-43631
...
11
Washer BS-17X139MA
...
12
Cover, Dust BS-71032
...
13
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
14
Screw BS-26X214MA
...
15
Guide, Belt BS-71051 Z
...
16
Belt Guide, Briggs (For Models with Briggs & Stratton engines) BS-71049 Z
...
--
Belt Guide, Tecumseh (For Models with Tecumseh engines) BS-71050 Z
...
17
Height Adjuster, Front BS-401024
...
18
Grip BS-43394
...
19
Washer BS-17X124MA
...
20
Bolt BS-01X143MA
...
21
Washer, Belleville BS-17X137MA
...
22
Blade BS-71113E701
...
23
Adapter, Blade BS-71057
...
24
Bolt, Engine BS-0025X6MA
...
25
Spring, Torsion BS-0166X5MA
...
26
Push On Cap BS-028X42MA
...
27
Deflector, Chute BS-42919
...
28
Rod BS-215X11 Z
...
29
NUT, 1/4-20, GR5 BS-703233
...
30
Wheel and Tire, Front BS-43618
...
31
Housing BS-70133
...
32
Retainer BS-42743
...
33
Deflector, Rear BS-71033
...
34
SCREW-#10X.5 B W/WAS BS-26X245MA
...
35
NUT BS-703127
...
36
Bracket, Right Handle BS-42712E700
...
37
Belt, Briggs & Stratton (For Models with Briggs & Stratton engines) BS-037X72MA
...
--
Belt, Tecumseh (For Models with Tecumseh engines) BS-037X73MA
...
38
Bolt BS-001X38MA
...
39
Height Adjuster, Left BS-401023MA
...
--
Height Adjuster, Right BS-401022MA
...
41
Axle, Pulley & Setscrew BS-71466
...
42
Setscrew BS-023X50
...
43
Belt Guard, Briggs (For Models with Briggs & Stratton engines) BS-71024
...
--
Belt Guard, Tecumseh (For Models with Tecumseh engines) BS-71025
...
45
Pin Drive BS-43629
...
46
Pulley, Idler BS-71055
...
47
Support, Idler BS-71046 Z
...
48
NUT, HEX FLNG,5/16-18 BS-704067
...
49
Stop, Rope BS-42189
...
50
Pulley, Idler BS-71054
...
51
Spring, Extension BS-165X94MA
...
52
Bolt, Hex BS-01X141MA
...
53
Bolt, Hex BS-01X102
...
54
Bracket, Idler BS-71045 Z
...
55
Arm, Idler BS-71026 Z
...
56
Bolt, Shoulder BS-009X48
...
57
Cap, Hub BS-43615
...
58
NUT, 3/8-16 BS-703333
...
59
Bearing and Retainer BS-70250
...
60
Washer, Belleville BS-17X178MA
...
61
Retainer Ring BS-011X24MA
...
62
Baffle BS-71110 Z
...
63
Spacer BS-71112 Z
...
64
Wingnut BS-014X81MA
...
65
Cover BS-71108 Z
...
--
Book, Instruction BS-F-94480
