22765B Murray - Walk-Behind Mower (1997)

Model: 22765B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

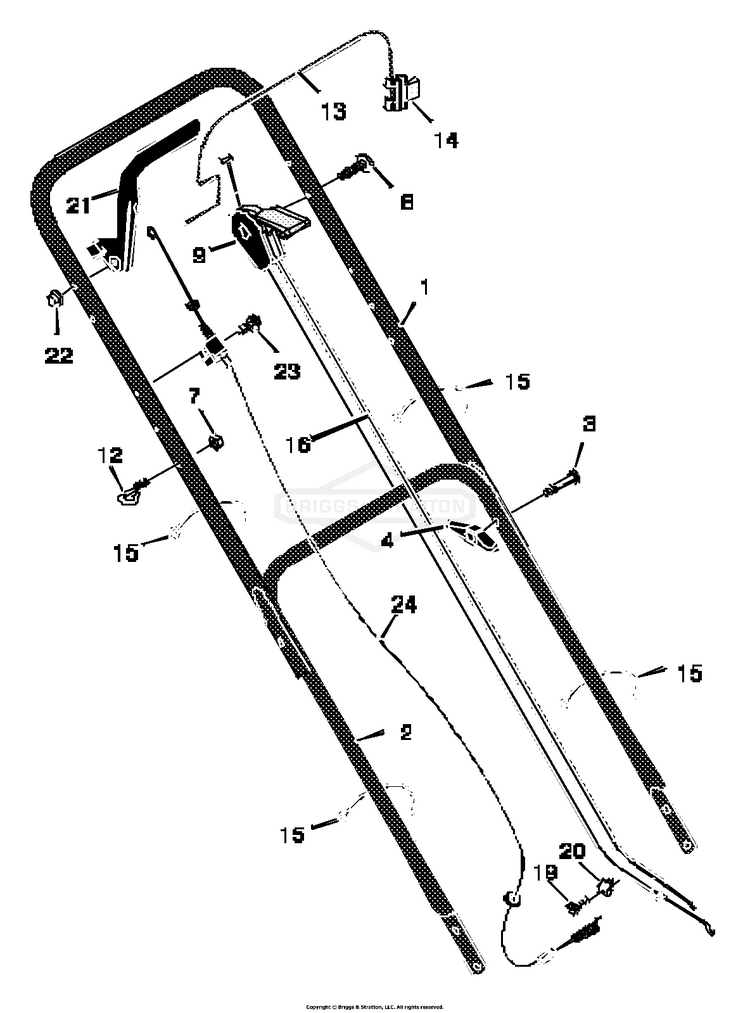

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
2
Handle, Lower (Black) BS-672207E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
Throttle Control BS-672141
...
12
GUIDE, ROPE BS-043956MA
...
13
Stop Lever - Straight BS-672066E245
...
14
Bracket, Stop Lever BS-43826 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-672126MA
...
19
Screw BS-26X268MA
...
20
Clamp BS-042294
...
21
Lever, Drive BS-043722
...
22
Push On Cap BS-028X48MA
...
23
Screw BS-26X256MA
...
24
Cable, Drive BS-071036MA

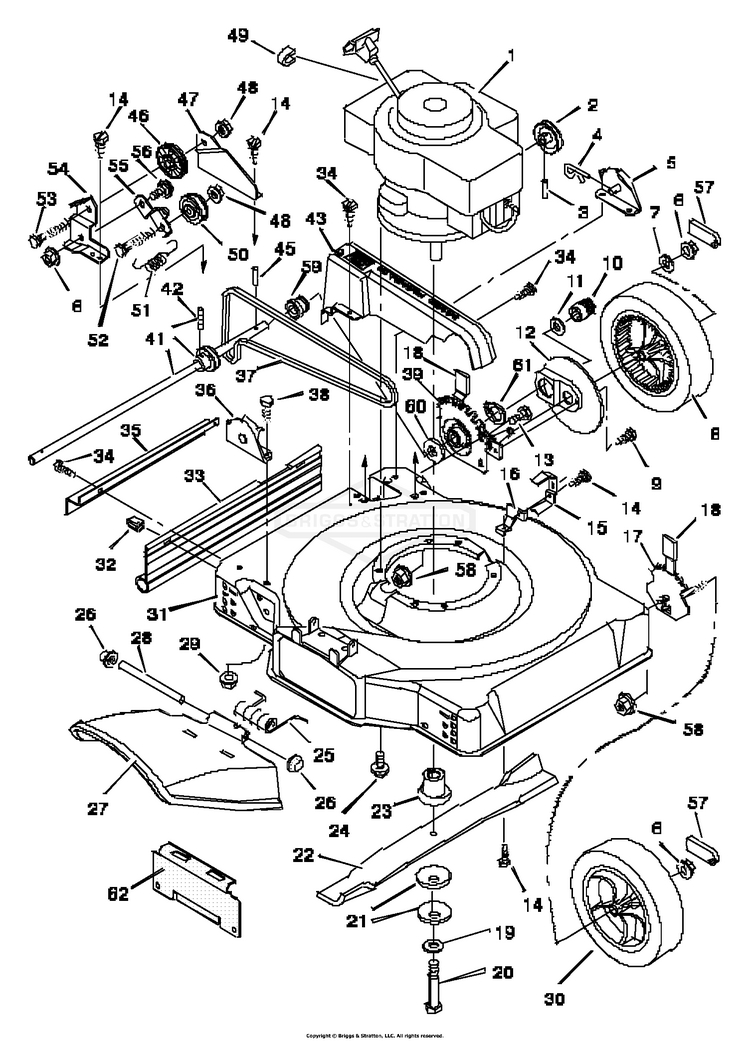

Mower Housing Assembly

...
...
2
Pulley BS-071434MA
...
3
Pin, Spring BS-032X64MA
...
4
Pin, Hair BS-031X10MA
...
5
Bracket, Left Handle BS-042713E700
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Washer BS-17X163
...
8
Wheel, Drive BS-672208
...
9
Screw BS-26X221MA
...
10
Gear, Right Pinion BS-043630MA
...
--
Gear, Left Pinion BS-49631
...
11
Washer BS-17X138
...
12
Cover, Dust BS-071032MA
...
13
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
14
Screw BS-28X214
...
15
Guide, Belt BS-71061 Z
...
16
Belt Guide, Briggs (For Models with Briggs & Stratton engines) BS-071049 Z
...
--
Belt Guide, Tecumeseh (For Models with Tecumseh engines) BS-071050 Z
...
18
Grip BS-043394MA
...
19
Washer BS-17X124MA
...
20
Bolt BS-01X143MA
...
21
Washer, Belleville BS-17X137MA
...
22
Blade BS-1101120E701MA
...
23
Adapter, Blade BS-071057MA
...
24
Bolt, Engine BS-0025X8
...
25
Spring, Torsion BS-0168X5
...
26
Push On Cap BS-028X42MA
...
27
Deflector, Chute BS-042919
...
28
Rod BS-215X11 Z
...
29
Nut BS-015X32MA
...
30
Wheel and Tire, Front BS-672211
...
31
Housing BS-070133
...
32
Retainer BS-042743MA
...
33
Deflector, Rear BS-071039
...
34
SCREW-#10X.5 B W/WAS BS-26X245MA
...
35
Guard, Axle BS-071034
...
36
Bracket, Right Handle BS-42712E700
...
37
Belt, Briggs & Stratton (For Models with Briggs & Stratton engines) BS-037X72MA
...
--
Belt, Tecumseh (For Models with Tecumseh engines) BS-037X73MA
...
38
Bolt BS-001X38MA
...
39
Height Adjuster, Left BS-401029MA
...
--
Height Adjuster, Right BS-401022MA
...
41
Axle, Pulley & Setscrew BS-071466MA
...
42
Setscrew BS-023X50
...
43
Belt Guard, Briggs (For Models with Briggs & Stratton engines) BS-071024
...
--
Belt Guard, Tecumseh (For Models with Tecumseh engines) BS-071025
...
45
Pin, Drive BS-043628
...
46
Pulley, Idler BS-071905
...
47
Support, Idler BS-071046 Z
...
48
NUT, HEX FLNG,5/16-18 BS-704067
...
49
Stop, Rope BS-042189MA
...
50
Pulley, Idler BS-071054MA
...
51
Spring, Extension BS-185X94
...
52
Bolt, Hex BS-01X141MA
...
53
Bolt, Hex BS-01X102
...
54
Bracket, Idler BS-071045 Z
...
55
Arm, Idler BS-071026 Z
...
56
Bolt, Shoulder BS-710200
...
57
Cap, Hub BS-872215
...
58
NUT, 3/8-16 BS-703333
...
59
Bearing and Retainer BS-070250MA
...
60
Washer, Belleville BS-17X178MA
...
61
Retainer Ring BS-011X24MA
...
62
Plate, Mulcher BS-672044 Z
...
--
Instruction Book BS-F-97517
