22705x92A Murray - Walk-Behind (1998)

Model: 22705x92A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

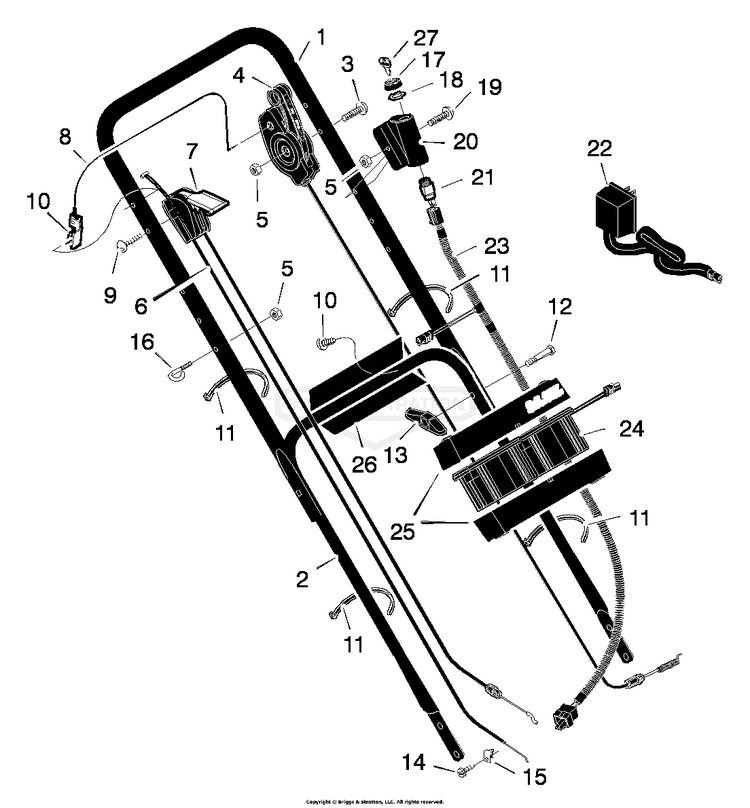

Handle Assembly

...
...
1
Handle, Upper (Black) BS-672666E701MA
...
2
Handle, Lower (Black) BS-672572E701MA
...
3
Bolt BS-26X256MA
...
4
Control, Drive BS-672581MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672567MA
...
7
Throttle Control BS-672656MA
...
8
Lever, Stop BS-672571E701
...
9
Screw BS-025X14MA
...
10
Screw BS-26X220MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
Screw BS-26X268MA
...
15
Clamp BS-042294
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
CAP, Switch BS-847150
...
18
SET, Washer/Nut BS-847144
...
19
Bolt BS-03X136MA
...
20
Cover, Ignition BS-671916MA
...
21
Switch Ignition & Key BS-776011MA
...
22
Charger, Battery BS-671992MA
...
23
Harness, Wiring BS-776012
...
24
Battery BS-776014MA
...
25
Case, Battery BS-776013
...
26
Bracket, Battery BS-671959
...
27
Key, Ignition BS-020729
...
28
Bracket, Stop Lever BS-43628 BC

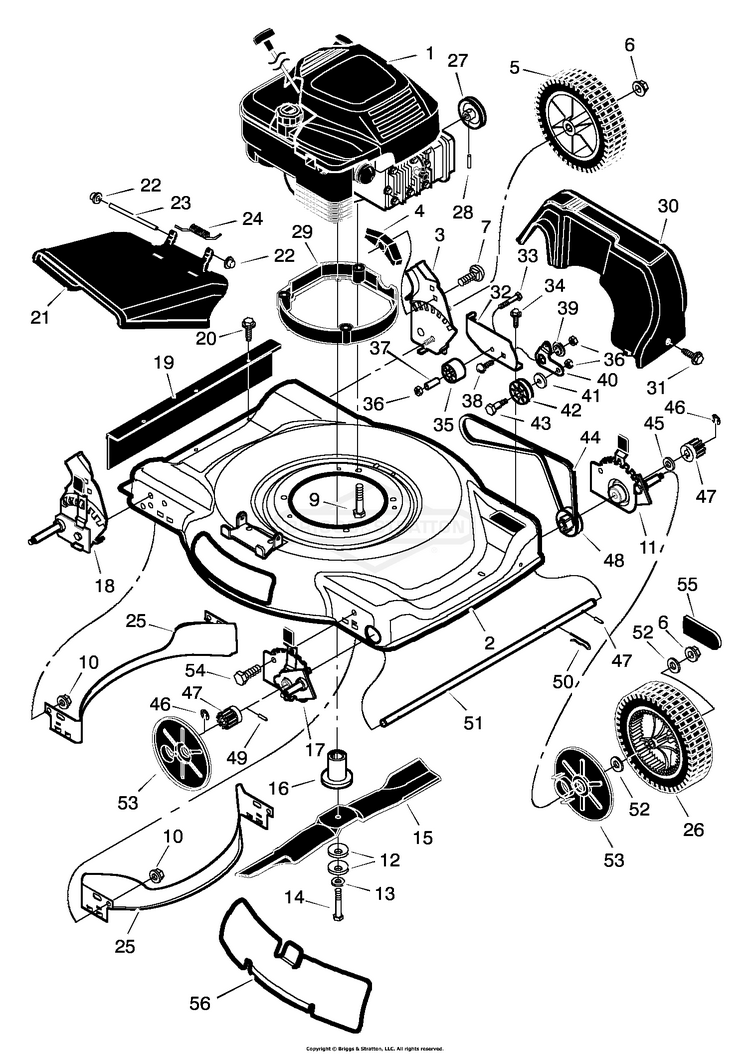

Mower Housing Assembly

...
...
2
Housing BS-776023
...
3
Height Adjuster, Left Rear BS-672641MA
...
4
Knob BS-071495MA
...
5
Wheel and Tire, Rear BS-672082
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-025X11MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672643MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X153MA
...
15
Blade BS-1101120E701MA
...
16
Adapter, Blade BS-672503MA
...
17
Height Adjuster, Right Front BS-672642MA
...
18
Height Adjuster, Right Rear BS-672640MA
...
19
Guard, Rear BS-672500
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push- On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
25
Baffle BS-672332E701
...
26
Wheel and Tire, Drive BS-672083
...
27
Pulley BS-071434MA
...
28
Pin, Spring BS-032X64MA
...
29
Base, Engine BS-672671E701
...
30
Cover, Belt BS-672502
...
31
Screw BS-26X279MA
...
32
Bracket, Idler Support BS-672423 Z
...
33
Bolt BS-001X81MA
...
34
SCREW.25-20 S-T BS-26X263MA
...
35
Idler BS-071778MA
...
36
NUT BS-703164
...
37
Bearing BS-071793MA
...
38
BOLT BS-703159
...
39
Spacer BS-071789MA
...
40
Arm, Idler BS-071742 Z
...
41
Spacer BS-071788MA
...
42
Pulley, Idler BS-071779MA
...
43
Bolt, Shoulder BS-009X50MA
...
44
Belt BS-037X94MA
...
45
Washer BS-17X186MA
...
46
Ring, Retainer BS-011X16MA
...
47
Gear, Pinion BS-071792MA
...
48
Pulley BS-071791MA
...
49
Pin, Drive BS-43692
...
50
Pin, Hair BS-0031X9MA
...
51
Axle BS-672508MA
...
52
WASHER, FLAT, .377X1 BS-703966
...
53
Cover, Dust BS-071780MA
...
54
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
55
Hub Cap BS-043615MA
...
56
Plate, Mulch BS-672422 Z
...
--
Book, Instruction BS-F-98557
