22636x8A Murray - Walk-Behind (1998)

Model: 22636x8A

Save Part Not Listed?
product name

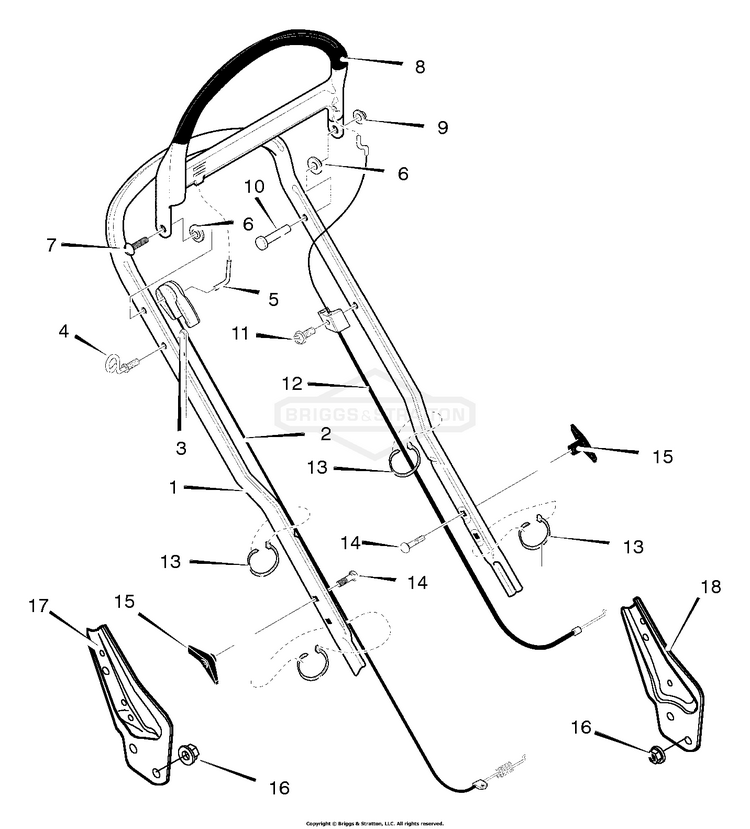

Handle Assembly

...
...
1
Handle, Upper (Black) BS-672694E724
...
2
Control, Drive BS-672668MA
...
3
NUT, 1/4-20, NYLOCK BS-703232
...
4
Guide, Rope BS-672510MA
...
5
Rod, Drive Link BS-672291 Z
...
6
Spacer BS-672292MA
...
7
Screw BS-26X287
...
8
Lever, Stop BS-672687
...
9
Push- On Cap BS-028X42MA
...
10
Pin, Clevis BS-29X102
...
11
Screw BS-26X220MA
...
12
Cable, Stop BS-672667MA
...
13
TIE,STRAP-REMOVABLE BS-071372MA
...
14
Bolt, Carriage BS-002X77MA
...
15
Wingnut BS-672685
...
16
NUT, 5/16-18, GR5 BS-703409
...
17
Bracket, Right Handle BS-672266
...
18
Bracket, Left Handle BS-672267

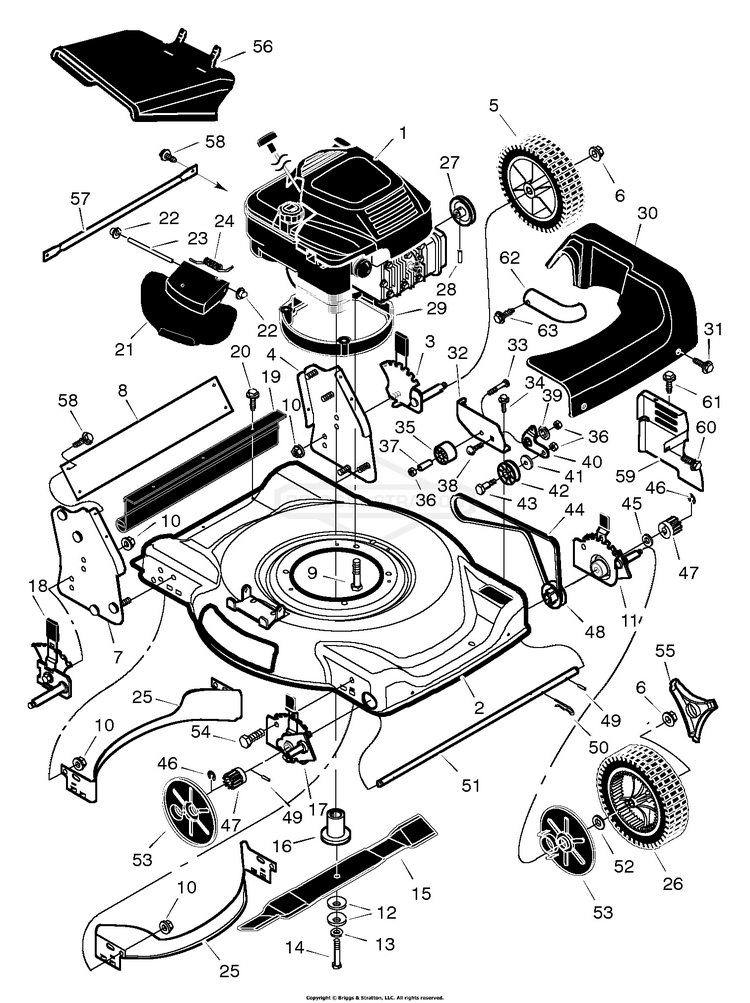

Mower Housing Assembly

...
...
2
Housing BS-776023
...
3
Height Adjuster, Left Rear BS-672679
...
4
Bracket, Left Handle BS-672675E122
...
5
Wheel and Tire, Rear BS-672434
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bracket, Right Handle BS-672674E122
...
8
Brace, Handle Bracket BS-672660E122
...
9
Bolt, Engine BS-025X11MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672681MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X153MA
...
15
Blade BS-672573E701MA
...
16
Adapter, Blade BS-672503MA
...
17
Height Adjuster, Right Front BS-672680MA
...
18
Height Adjuster, Right Rear BS-672678
...
19
Guard, Rear BS-672684
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Cover, Mulcher BS-672618
...
22
Push- On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X19 Z
...
24
Spring BS-166X38MA
...
25
Baffle BS-672332E701
...
26
Wheel and Tire, Drive BS-672436
...
27
Pulley BS-071434MA
...
28
Pin, Spring BS-032X64MA
...
29
Base, Engine BS-672671 E700
...
30
Cover, Belt BS-672347
...
31
Screw BS-26X279MA
...
32
Bracket, Idler Support BS-672423 Z
...
33
Bolt BS-001X81MA
...
34
SCREW.25-20 S-T BS-26X263MA
...
35
Idler BS-071778MA
...
36
NUT BS-703164
...
37
Bearing BS-071793MA
...
38
BOLT BS-703159
...
39
Spacer BS-071789MA
...
40
Arm, Idler BS-071742 Z
...
41
Spacer BS-071788MA
...
42
Pulley, Idler BS-071779MA
...
43
Bolt, Shoulder BS-009X50MA
...
44
Belt BS-037X94MA
...
45
Washer BS-17X186MA
...
46
Ring, Retainer BS-011X16MA
...
47
Gear, Pinion BS-071792MA
...
48
Pulley BS-071791MA
...
49
Pin, Drive BS-043629MA
...
50
Pin, Hair BS-0031X9MA
...
51
Axle BS-672508MA
...
52
WASHER, FLAT, .377X1 BS-703966
...
53
Cover, Dust BS-071780MA
...
54
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
55
Hub Cap BS-672446
...
56
Deflector, Chute BS-672619
...
57
Brace BS-672504E700
...
58
SCREW.25-20 S-T BS-26X263MA
...
59
Shield, Heat BS-672703
...
60
SCREW, HEX, 1/4-20X.5 BS-704130
...
61
Screw BS-26X279MA
...
62
Tube, Exhaust BS-672710
...
63
Screw BS-26X208MA
...
--
Book, Instruction BS-F-98521
