22636x31A Murray - Walk-Behind (1998)

Model: 22636x31A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

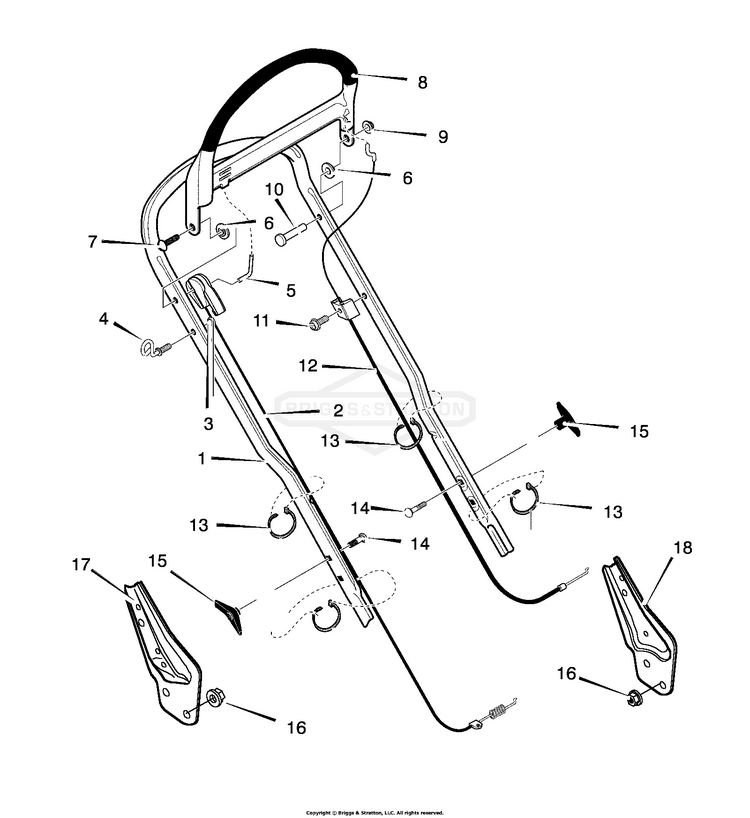

Handle Assembly

...
...
1
Handle, Upper BS-672694E724
...
2
Control, Drive BS-672668MA
...
3
NUT, 1/4-20, NYLOCK BS-703232
...
4
Guide, Rope BS-672510MA
...
5
Rod, Drive Link BS-672291 Z
...
6
Spacer BS-672292MA
...
7
Screw BS-26X287
...
8
Lever, Stop BS-672687
...
9
Push- On Cap BS-028X42MA
...
10
Pin, Clevis BS-29X102
...
11
Screw BS-26X220MA
...
12
Cable, Stop BS-672667MA
...
13
TIE,STRAP-REMOVABLE BS-071372MA
...
14
Bolt, Carriage BS-002X77MA
...
15
Wingnut BS-672685
...
16
NUT, 5/16-18, GR5 BS-703409
...
17
Bracket, Right Handle BS-672266
...
18
Bracket, Left Handle BS-672267
Schematic Image Zoomed
