22635E Murray - Walk-Behind Mower (1997)

Model: 22635E

Save Part Not Listed?
product name

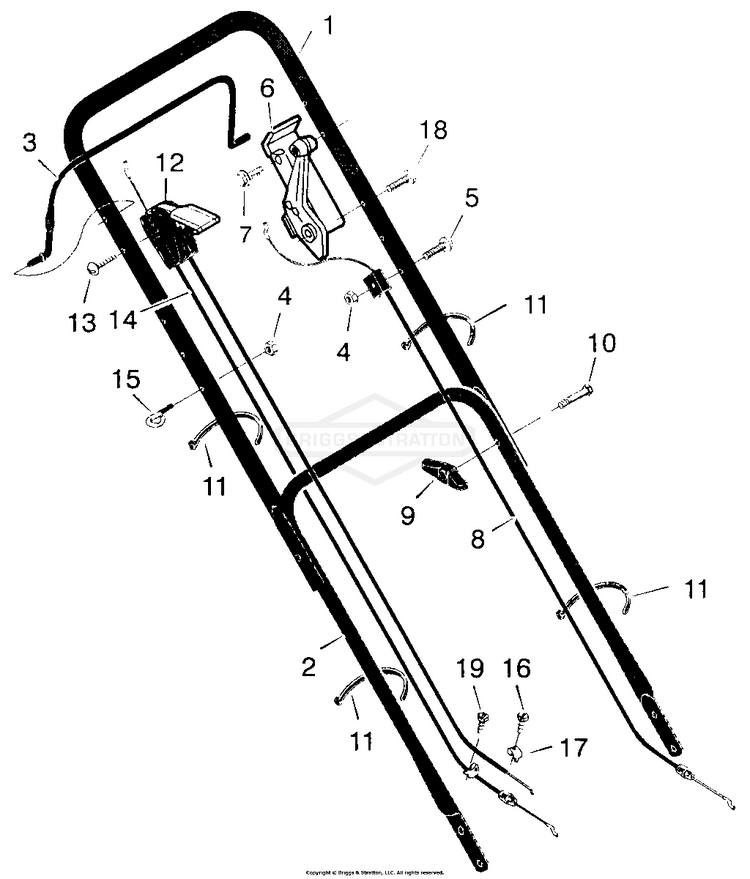

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
--
Handle, Upper - (Gray) BS-71581E724
...
2
Handle, Lower (Black) BS-071582E701
...
--
Handle, Lower (Gray) BS-71582E724
...
3
Lever, Stop BS-043653E701MA
...
4
NUT, 1/4-20, NYLOCK BS-703232
...
5
Screw BS-03X151
...
6
Drive Control BS-071249
...
7
Screw BS-26X220MA
...
8
Cable, Drive BS-071251MA
...
9
WINGKNOB, 5/16-18 BS-703065
...
10
Bolt BS-002X77MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Throttle Control BS-672149
...
13
Bolt BS-03X144
...
14
Engine Stop Cable BS-672170
...
15
GUIDE, ROPE BS-043956MA
...
16
Screw For Models with Briggs & Stratton engines. BS-26X268MA
...
17
Clamp (For Models with Briggs & Stratton engines.) BS-042294
...
18
Screw BS-003X97 Z
...
19
Screw BS-26X234

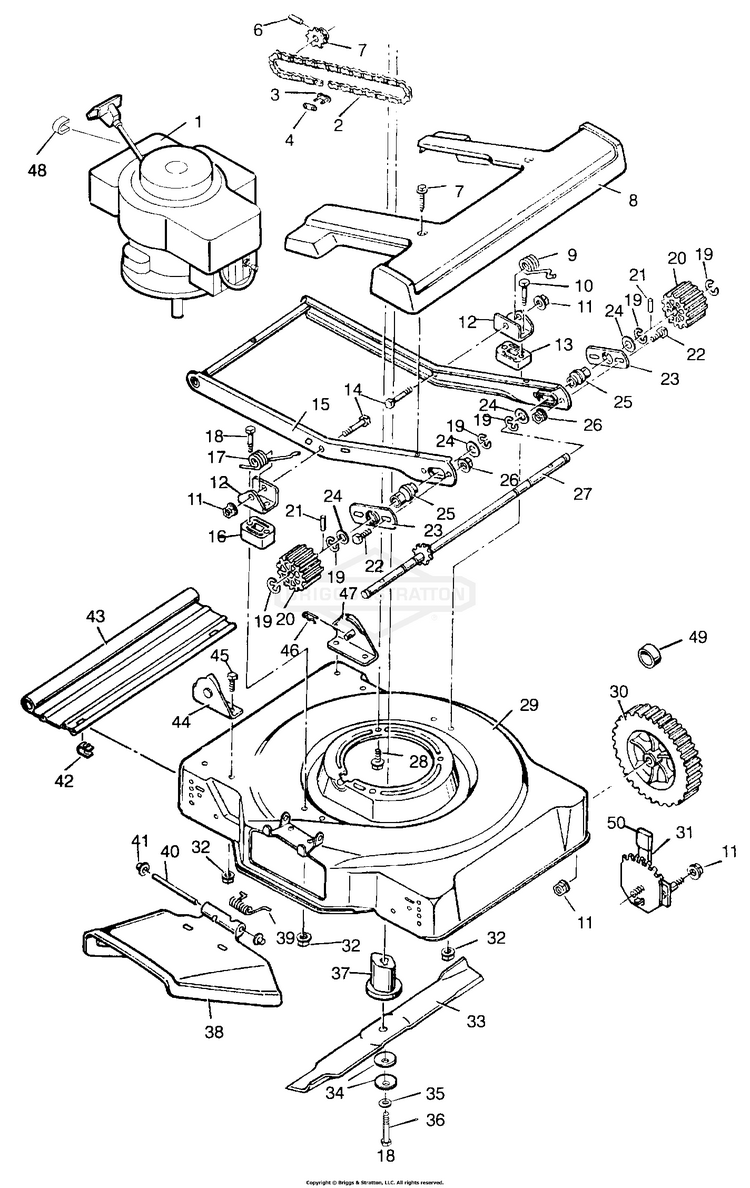

Mower Deck Assembly

...
...
2
Chain BS-043953
...
3
Master Link BS-11343
...
4
Clip BS-11344
...
5
Sprocket, Drive BS-020411MA
...
6
Pin, Spring BS-032X64MA
...
7
Screw, Tapping BS-26X243
...
8
Guard, Pinion BS-043170
...
9
Spring, Left Torsion BS-166X25
...
10
Bolt, Hex BS-001X71
...
11
NUT, CNTR LCK, 3/8-16 BS-703893
...
12
Bracket, Drive Arm BS-043103 Z
...
13
Spacer, Left BS-043119
...
14
Bolt, Hex BS-006X92
...
15
Drive Arm Assembly BS-043226E701
...
16
Spacer, Right BS-043120
...
17
Spring, Right Torsion BS-166X24
...
18
SCREW BS-703588
...
19
Retainer Ring BS-0011X8MA
...
20
Drive Pinion BS-020066MA
...
21
Spring Pin BS-032X64MA
...
22
Bolt, Hex BS-001X38MA
...
23
Retainer, Bearing BS-043107 Z
...
24
Washer BS-17X100MA
...
25
Bearing BS-020048
...
26
NUT, 1/4-20, GR5 BS-703233
...
27
Drive Shaft & Sprocket BS-043109 Z
...
28
Bolt, Engine BS-0025X6MA
...
29
Housing BS-070160
...
30
Wheel, Plastic BS-672173
...
--
Wheel, Metal BS-043274MA
...
31
Height Adjuster BS-401025MA
...
32
NUT, 1/4-20, GR5 BS-703233
...
33
Blade BS-042225E701MA
...
34
Washer, Belleville BS-17X137MA
...
35
Washer BS-17X124MA
...
36
Bolt BS-01X143MA
...
37
Blade Adapter BS-071057MA
...
38
Chute Deflector BS-042919
...
39
Spring, Torsion BS-0166X5MA
...
40
Pin, Pivot BS-215X11 Z
...
41
Push On Cap BS-028X42MA
...
42
Retainer BS-042743MA
...
43
Deflector, Rear BS-042747
...
44
Bracket, Right Handle BS-42712E701
...
45
Bolt BS-001X38MA
...
46
Pin, Hair BS-031X10MA
...
47
Bracket, Left Handle BS-42713E701
...
48
Stop, Rope BS-042189MA
...
49
Hub Cap (Optional) BS-020107MA
...
50
Grip BS-043394MA
...
--
Instruction Book BS-F-97462
