226111x52A Murray - Walk-Behind Mower (2004)

Model: 226111x52A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

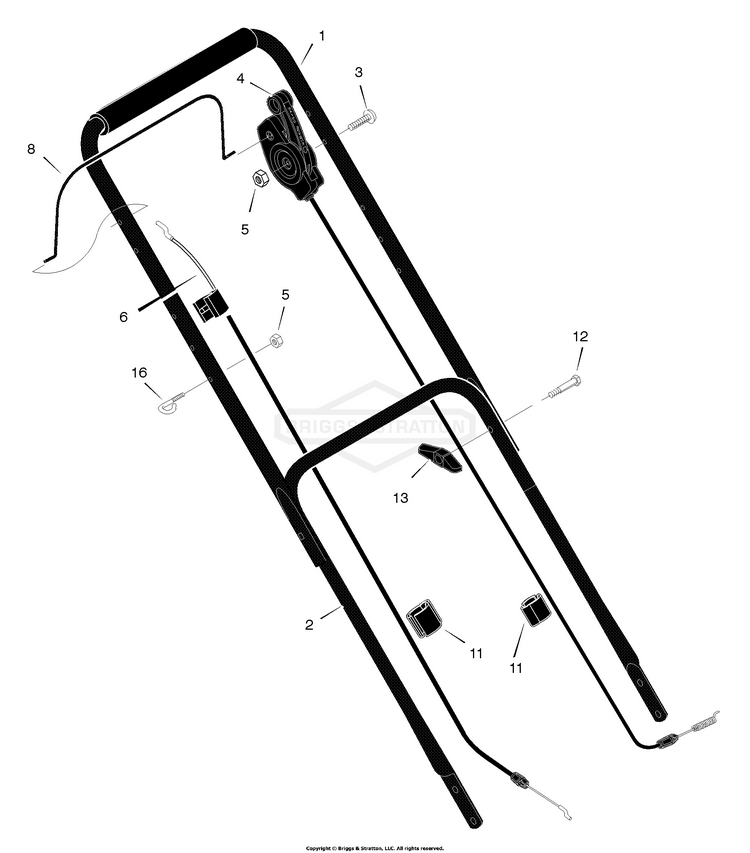

Handle Assembly

...
...
1
HANDLE UPPER 22FDTM BS-1101557E701MA
...
2
Handle, Lower (Black) BS-672906E701MA
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101670MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101365MA
...
8
Lever, Stop BS-1101076E701MA
...
11
Fastener, Cable BS-1101353MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA

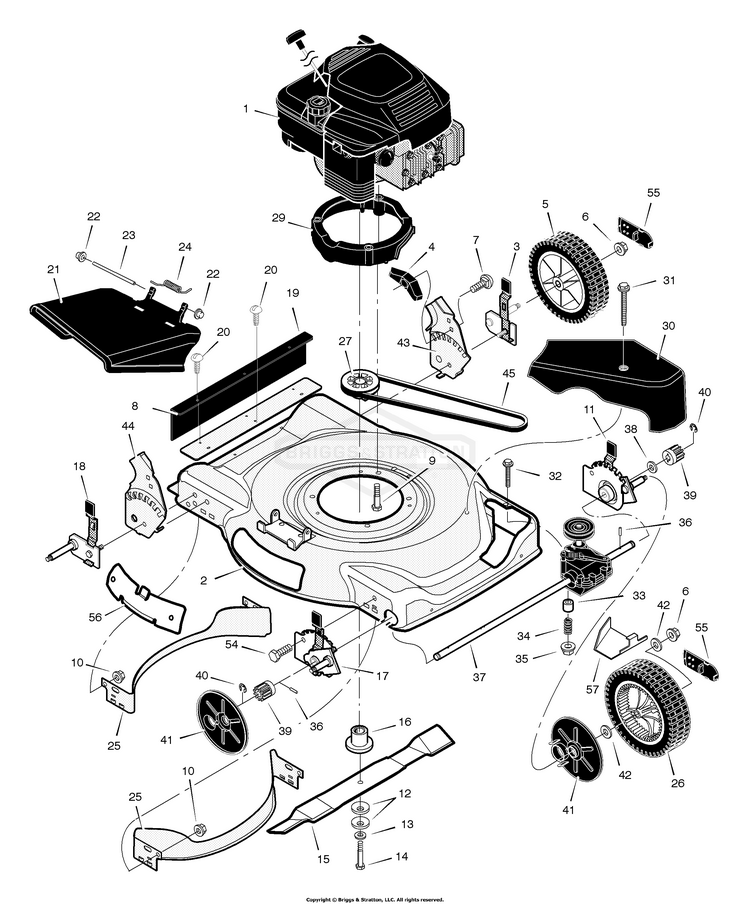

Mower Housing Assembly

...
...
2
Housing BS-776023
...
3
Height Adjuster, Left Rear BS-672641MA
...
4
Knob BS-071495MA
...
5
Wheel and Tire, Rear BS-071132MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
8
Extension, Rear BS-672711E701
...
9
Bolt, Engine BS-025X11MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672643MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X148MA
...
15
Blade BS-1101120E701MA
...
16
Adapter, Blade BS-672094MA
...
17
Height, Adjuster, Right Frt. BS-672642MA
...
18
Height, Adjuster, Right Rr. BS-672640MA
...
19
Guard, Rear BS-672738MA
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
25
Baffle (Included with Ref. No. 1) BS-672744E701MA
...
26
Wheel and Tire, Drive BS-071133MA
...
27
Pulley BS-1101653MA
...
29
SPACER-ENG 22SD FDTM (Black) BS-1101787MA
...
30
Cover, Belt (Black) BS-1101830MA
...
31
Screw BS-26X313MA
...
32
Bolt BS-01X118MA
...
33
Spacer BS-043844MA
...
34
Spring BS-164X27MA
...
35
NUT, HEX FLNG,5/16-18 BS-704067
...
36
Pin, Drive BS-043629MA
...
37
Transmission * BS-1101571MA
...
38
Washer BS-17X186MA
...
39
Gear, Pinion BS-071792MA
...
40
E-Ring BS-011X16MA
...
41
Cover, Dust BS-071780MA
...
42
WASHER, FLAT, .377X1 BS-703966
...
43
Bracket, Left Handle BS-1101303E700
...
44
Bracket, Right Handle BS-1101302E700
...
45
Belt, Briggs & Stratton BS-37X123MA
...
54
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
55
Hub Cap BS-043615MA
...
56
Plate, Mulch (Optional) BS-672422 Z
...
57
Cover, Transmission BS-1101961MA
...
--
Book, Instruction BS-F-040436L
