22605x50G Murray - Walk-Behind Mower (2003)

Model: 22605x50G

Back To Assemblies

Save Part Not Listed?
product name

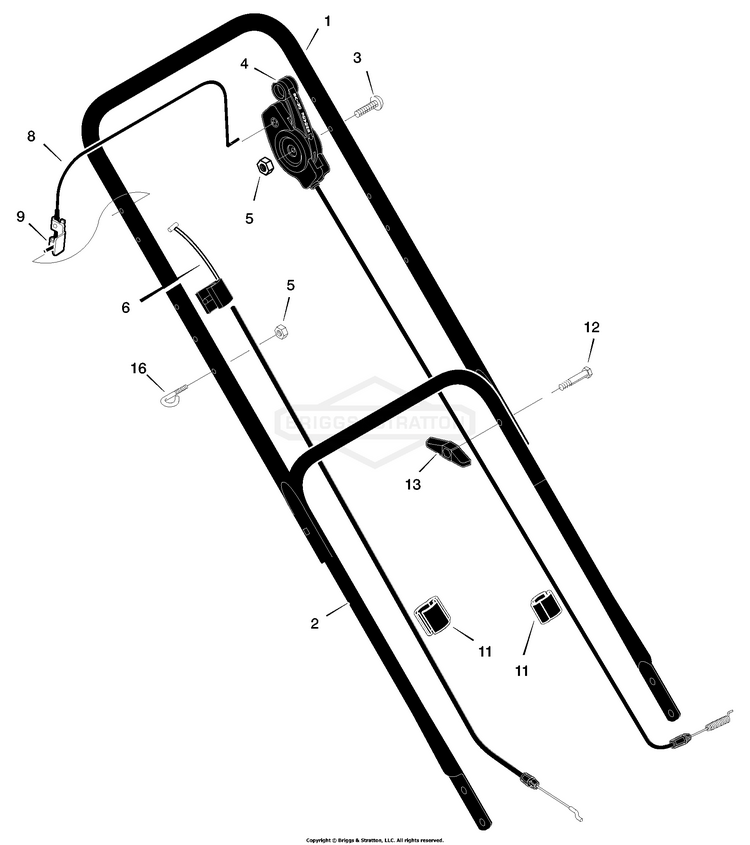

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101556E724
...
2
Handle, Lower (Black) BS-071137E724
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-672877MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101182MA
...
8
Lever, Stop BS-672879E701MA
...
9
Bracket, Stop Lever BS-1101454
...
11
Fastener, Cable BS-1101353MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
