22555x18A Murray - Walk-Behind Mower (1996)

Model: 22555x18A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

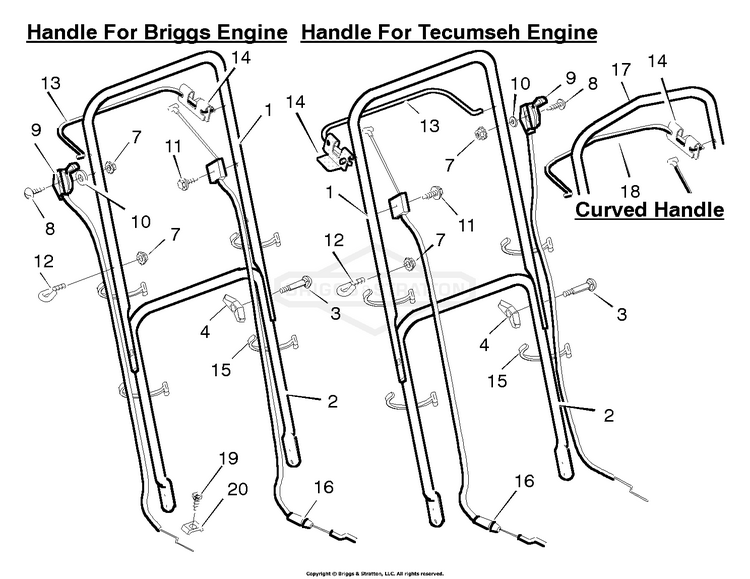

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
--
Handle, Upper-Straight (Gray) BS-71581E724
...
2
Handle, Lower (Black) BS-071582E701
...
--
Handle, Lower (Gray) BS-71582E724
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
Throttle Control (For Models with Briggs & Stratton engines.) BS-071178
...
--
Throttle Control (For Models with Tecumseh engines.) BS-071173MA
...
10
Washer BS-17X188
...
11
Screw BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Stop Lever - Straight BS-043653E701MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
S-CBL-S 39.00 22P C& BS-043828MA
...
--
Engine Stop Cable * BS-043827MA
...
17
Handle, Upper-Curved (Black) BS-071580E701MA
...
--
Handle, Upper-Curved (Gray) BS-71580E724
...
18
Stop Lever - Curved BS-043792MA
...
19
Screw * BS-26X268MA
...
20
Clamp (For Models with Briggs & Stratton engines) BS-042294

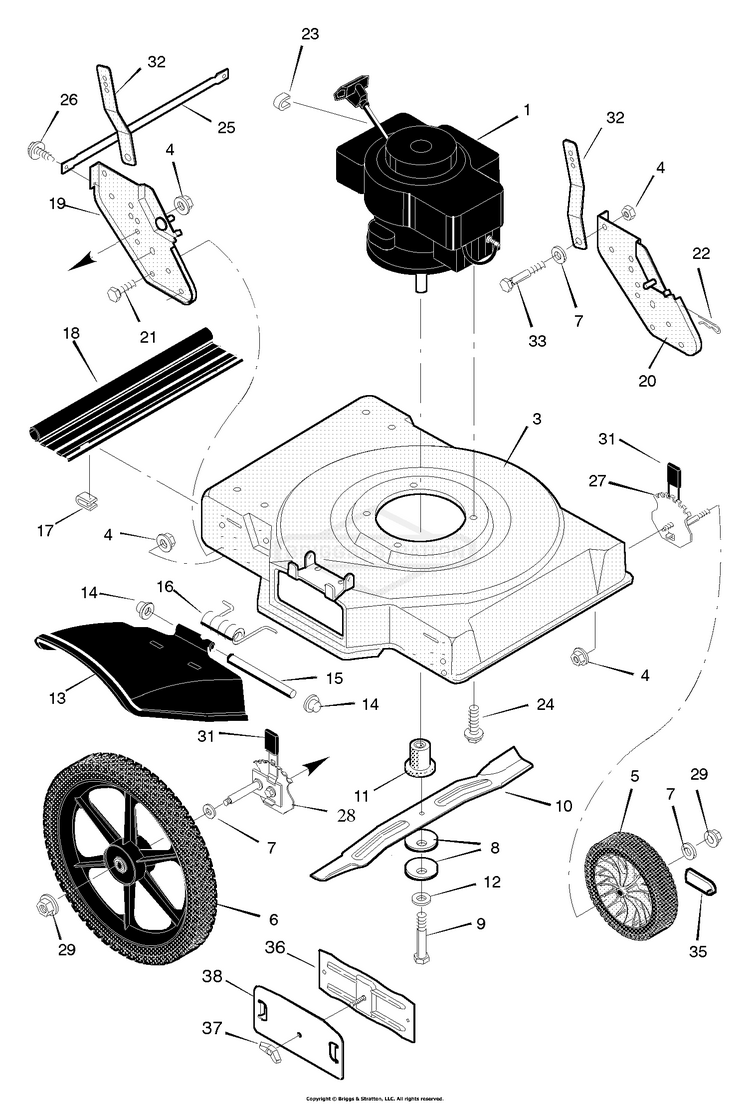

Mower Housing Assembly

...
...
3
Housing BS-070155MA
...
4
NUT, 3/8-16 BS-703333
...
5
Wheel BS-071134MA
...
--
Wheel and Tire, Front (Gray) BS-071599
...
6
Wheel and Tire, Rear (White) BS-071840
...
--
Wheel and Tire - Rear BS-672074MA
...
7
WASHER,SPRING .52X.99 BS-0020X3MA
...
8
Washer, Blade BS-17X137MA
...
9
Bolt, Hex BS-01X142MA
...
10
Blade - Mulcher BS-1101120E701MA
...
11
Blade Adapter BS-071056MA
...
12
Washer BS-17X124MA
...
13
Deflector, Chute BS-042919
...
14
Push On Cap BS-028X42MA
...
15
Pin, Pivot BS-215X11 Z
...
16
Spring BS-0166X5MA
...
17
Retainer BS-042743MA
...
18
Deflector, Rear BS-043405
...
19
Bracket, Right Wheel BS-71193E701
...
20
Bracket, Left Wheel BS-71192E701
...
21
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
22
Pin, Hair BS-031X10MA
...
23
Stop, Rope BS-042189MA
...
24
Bolt, Engine BS-0025X6MA
...
25
Brace BS-43404E701
...
26
Screw BS-26X214MA
...
27
Height Adjuster, Front BS-401025MA
...
28
Height Adjuster, Rear BS-401026MA
...
29
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
Grip BS-043394MA
...
32
Support, Handle BS-71092E701
...
33
Bolt, Shoulder BS-009X49MA
...
35
Hub Cap BS-043847MA
...
36
Baffle BS-71633 Z
...
37
Wingnut BS-071495MA
...
38
Cover BS-71631 Z
...
--
Book, Instruction BS-F-96493
