22545E Murray - Walk-Behind Mower (1996)

Model: 22545E

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
--
Handle, Upper-Straight (Gray) BS-71581E724
...
2
Handle, Lower (Black) BS-071582E701
...
--
Handle, Lower (Gray) BS-71582E724
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
Throttle Control (For Models with Briggs & Stratton engines.) BS-071178
...
--
Throttle Control (For Models with Tecumseh engines.) BS-071173MA
...
10
Washer BS-17X184MA
...
11
Screw BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Stop Lever - Curved BS-043792MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable * BS-043845
...
--
Engine Stop Cable * BS-043827MA
...
17
Handle, Upper- Curved (Black) BS-071580E701MA
...
--
Handle, Upper- Curved (Gray) BS-71580E724
...
18
Stop Lever - Curved BS-043792MA
...
19
Screw * BS-26X268MA
...
20
Clamp (For Models with Briggs & Stratton engines) BS-042294
...
21
Bolt BS-01X131MA
...
22
Nut BS-15X104

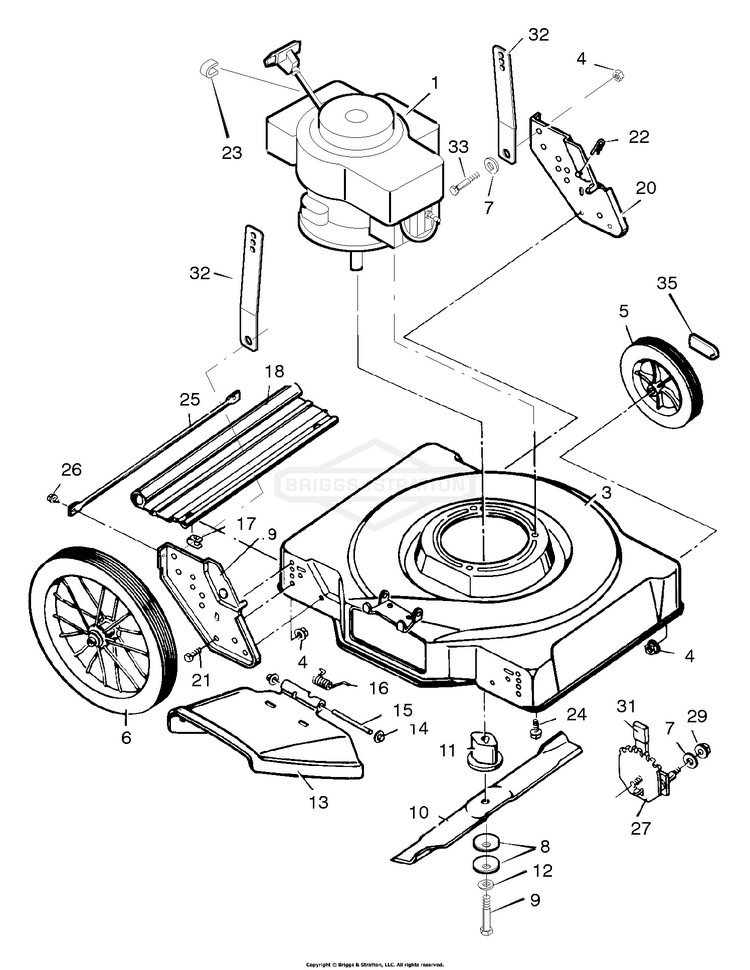

Mower Housing Assembly

...
...
3
Housing BS-070155MA
...
4
NUT, 3/8-16 BS-703333
...
7
WASHER,SPRING .52X.99 BS-0020X3MA
...
8
Washer, Blade BS-17X137MA
...
9
Bolt, Hex BS-01X142MA
...
10
Blade - Standard BS-042225E701MA
...
11
Blade Adapter BS-071056MA
...
12
Washer BS-17X124MA
...
13
Deflector, Chute BS-042919
...
14
Push On Cap BS-028X42MA
...
15
Pin, Pivot BS-215X11 Z
...
16
Spring BS-0166X5MA
...
17
Retainer BS-042743MA
...
18
Deflector, Rear BS-043405
...
19
Bracket, Right Wheel BS-71193E701
...
20
Bracket, Left Wheel BS-71192E701
...
21
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
22
Pin, Hair BS-031X10MA
...
23
Stop, Rope BS-042189MA
...
24
Bolt, Engine BS-0025X6MA
...
25
Brace BS-43404E701
...
26
Screw BS-26X214MA
...
27
Height Adjuster, Front BS-401025MA
...
--
Height Adjuster, Rear BS-401027MA
...
29
NUT, CNTR LCK, 3/8-16 BS-703893
...
31
Grip BS-043394MA
...
32
Support, Handle BS-71092E701
...
33
Bolt, Shoulder BS-009X49MA
...
35
Hub Cap BS-043847MA
...
--
Book, Instruction BS-F-96438

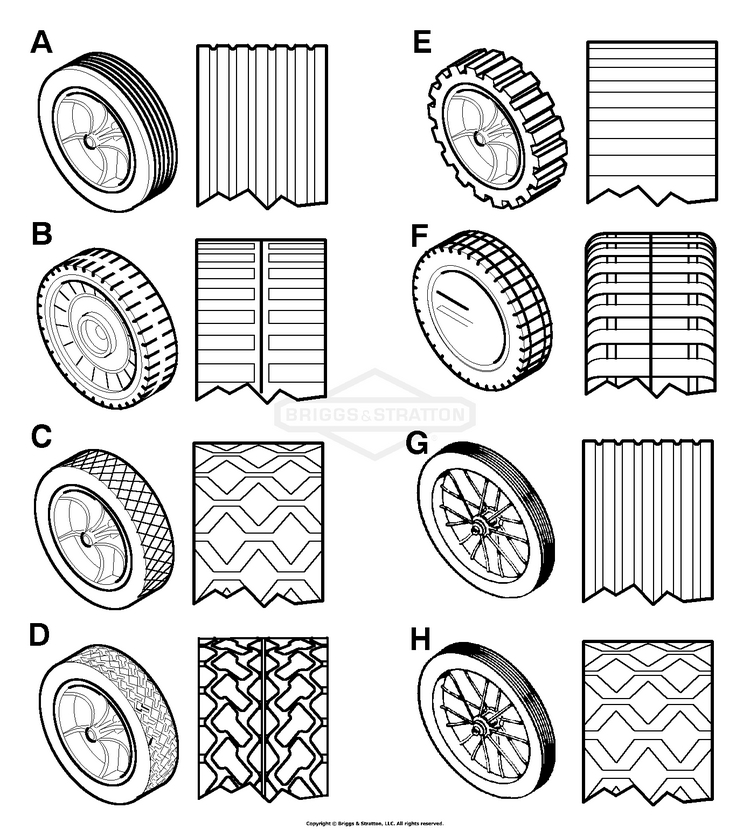

Wheels And Tires

...
...
A
WHEEL & TIRE ASSEMBLY, Light Gray, 8" BS-020104MA
...
A
8 inch Plastic, Gray BS-071598
...
A
8 inch Metal, White BS-043273
...
B
7 inch Plastic, White BS-071148
...
B
7 inch Plastic, Gray BS-71596
...
C
6 inch Plastic, White BS-042174
...
C
Tire & Rim BS-336546MA
...
C
7 inch Plastic, Gray BS-071597
...
C
8 inch Plastic, White BS-020271
...
C
8 inch Metal, White BS-043414
...
D
7 inch Plastic, White BS-042172
...
D
WHEEL & TIRE ASSEMBLY, White, 8" BS-042173MA
...
D
8 inch Plastic, Gray BS-071599
...
E
WHEEL & TIRE ASSEMBLY, White, 8" BS-020105MA
...
E
8 inch Plastic, Gray BS-071600
...
E
8 inch Metal, White BS-043274MA
...
F
Wheel BS-071132MA
...
F
8 inch Plastic, Gray BS-071132MA
...
F
Wheel BS-071134MA
...
F
8 inch Ball Bearings, Gray BS-071134MA
...
G
14 inch Spoke BS-042666
...
G
16 inch Spoke BS-070106
...
H
WHEEL & TIRE ASSEMBLY, 16" Spoke BS-070119MA
