225130x48A Murray - Walk-Behind Mower (2004)

Model: 225130x48A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

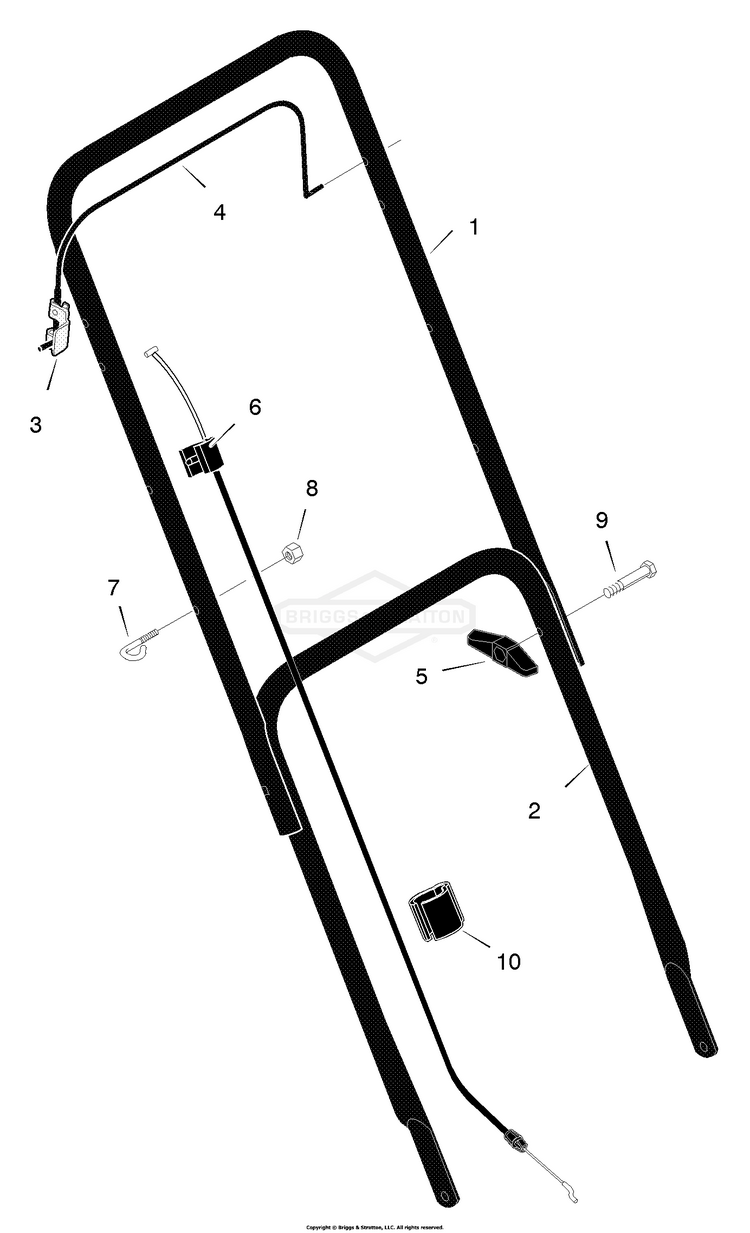

Handle Assembly

...
...
1
Handle, Upper (Black) BS-71581E701
...
2
Handle, Lower (Black) BS-71137E701
...
3
Bracket, Stop Lever BS-1101454
...
4
Lever, Stop BS-43653E701
...
5
Knob, Plastic BS-71294
...
6
Engine Stop Cable BS-672835MA
...
7
Guide, Rope BS-71530
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
Bolt BS-002X77MA
...
10
Fastener, Single Cable BS-1101352

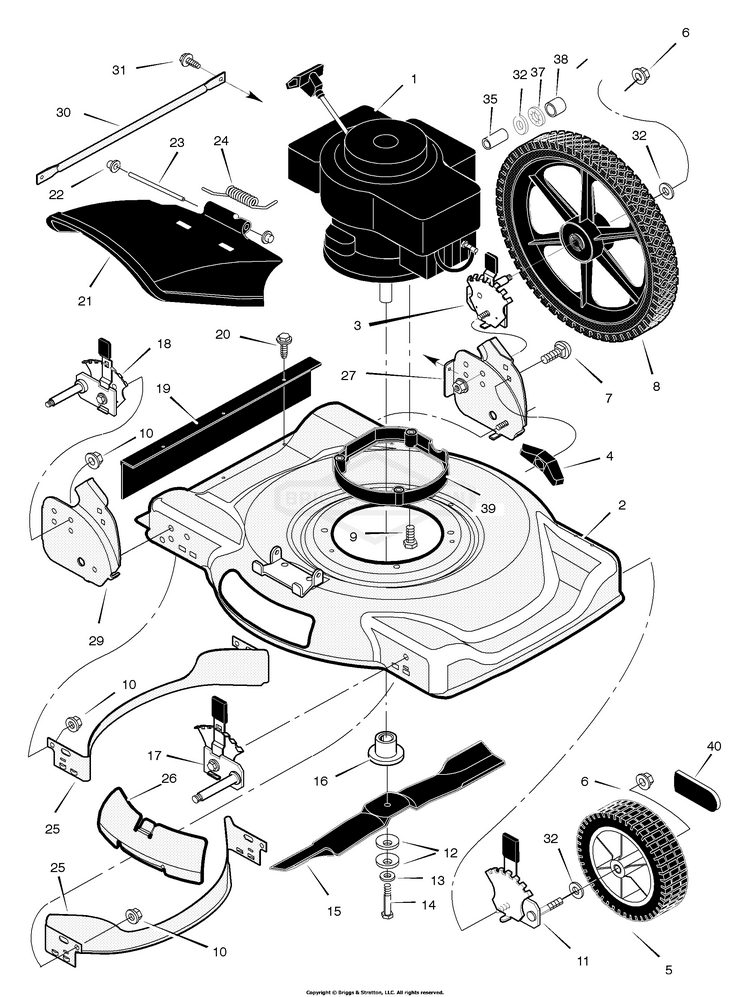

Mower Housing Assembly

...
...
2
Housing BS-776024MA
...
3
Height Adjuster, Left Rear BS-1101683
...
4
Knob BS-071495MA
...
5
Wheel and Tire, Front BS-071132MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
8
Wheel and Tire - Rear BS-672074MA
...
9
Bolt, Engine BS-025X11MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672601MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X153MA
...
15
Blade, Mulcher BS-1101120E701MA
...
16
Adapter, Blade BS-672503MA
...
17
Height Adjuster, Right Front BS-672600MA
...
18
Height Adjuster, Right Rear BS-1101682
...
19
Guard, Rear BS-672738MA
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
25
Baffle BS-672744E701MA
...
26
Plate, Mulcher BS-672422 Z
...
27
Bracket, Left Handle BS-1101305E700
...
29
Bracket, Right Handle BS-1101304E700
...
30
Brace BS-672728E700
...
31
SCREW.25-20 S-T BS-26X263MA
...
32
Washer BS-017X91 Z
...
34
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
35
Tube BS-672727
...
36
WASHER BS-703128
...
37
Nut, Speed BS-028X81
...
38
Cap BS-750570
...
39
Base, Engine BS-672671MA
...
40
Cap, Hub BS-043615MA
...
--
Book, Instruction BS-F-040419L
