225113x194A Murray - Walk-Behind Mower (2004)

Model: 225113x194A

Back To Assemblies

Save Part Not Listed?
product name

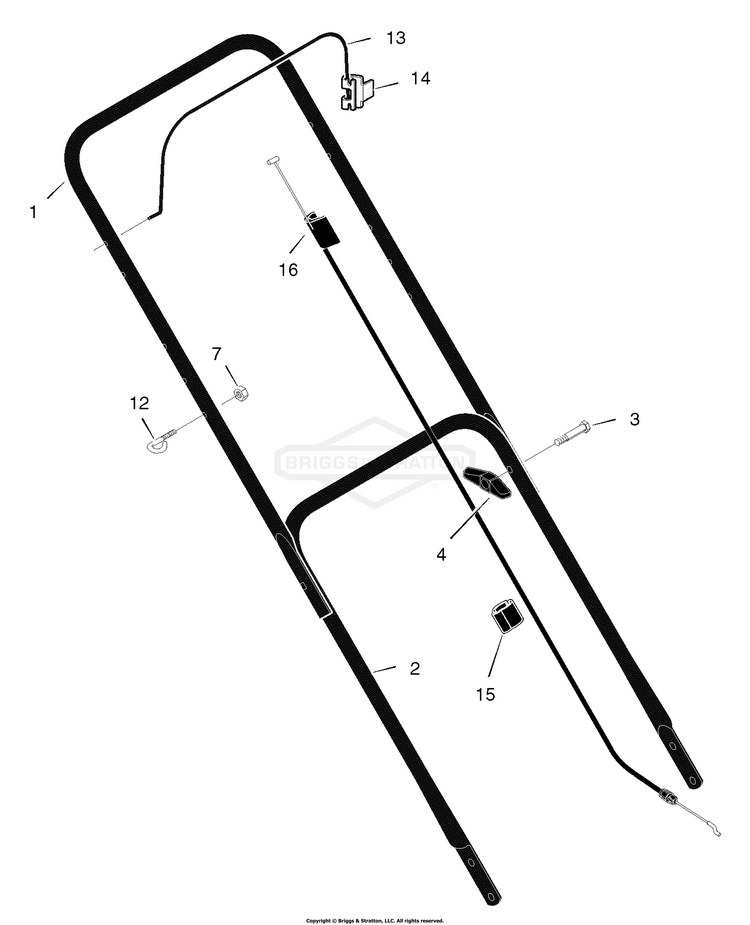

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701
...
2
Handle, Lower (Black) BS-71137E701
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Engine Stop Lever BS-043653E701
...
14
Bracket, Stop Lever BS-1101454
...
15
Clamp, Cable BS-1101353
...
16
Engine Stop Cable * BS-672840
...
xx
Engine Stop Cable * BS-1101181
