225112x99A Murray - Walk-Behind Mower (2005)

Model: 225112x99A

Save Part Not Listed?
product name

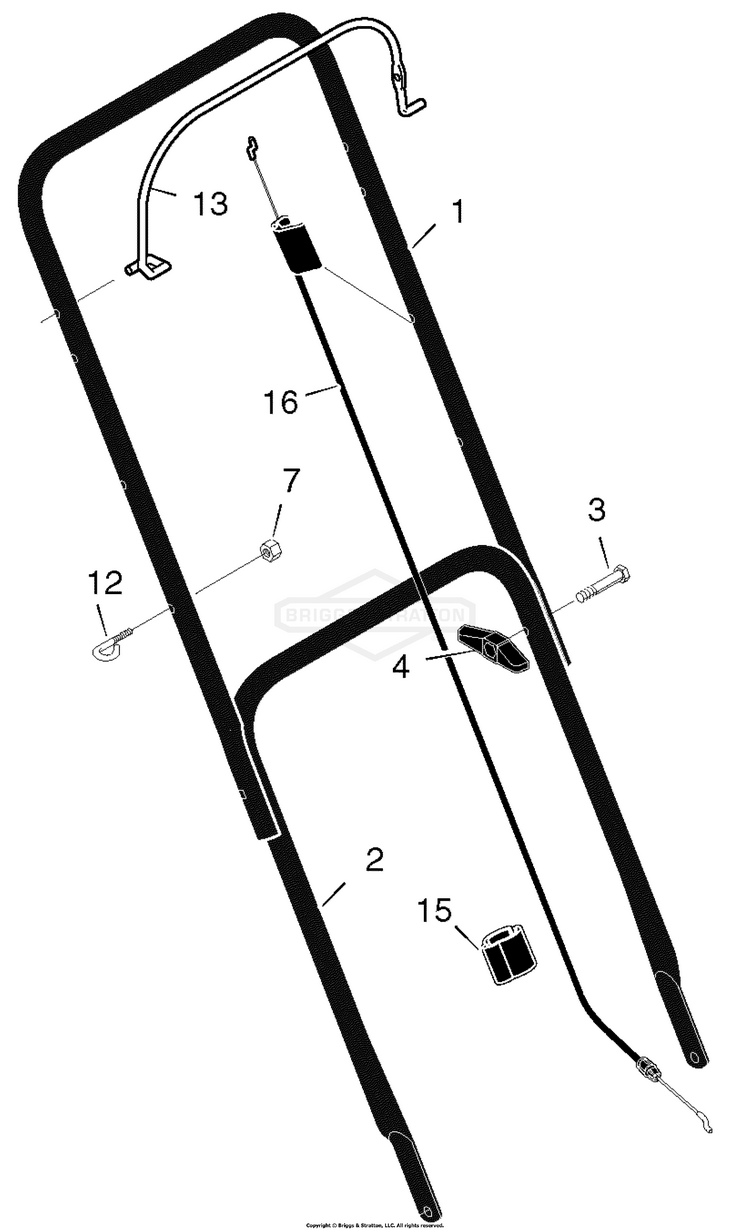

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701
...
2
Handle, Lower (Black) BS-1102087E701
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Engine Stop Lever BS-1101964E701
...
15
Fastener, Cable BS-1101353
...
16
Engine Stop Cable BS-1102094

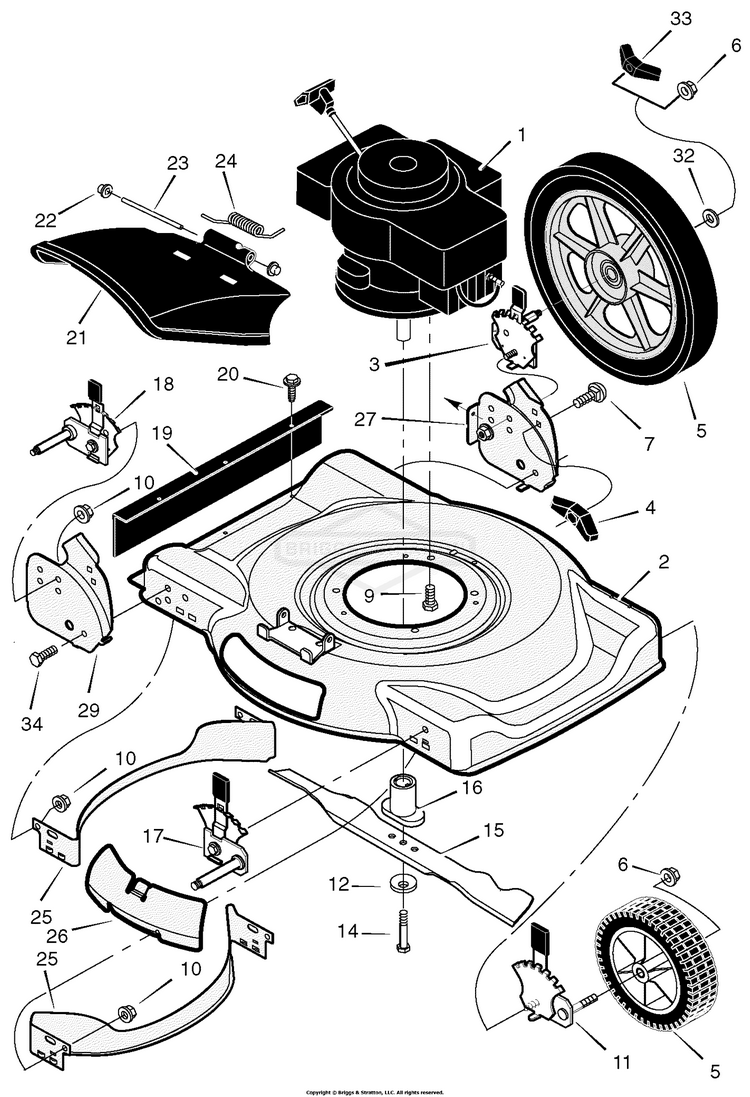

Mower Housing Assembly

...
...
2
Housing BS-776024
...
3
Height Adjuster, Left Rear BS-1102107
...
4
Knob BS-71495
...
5
Wheel and Tire, Front BS-672060
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81
...
8
Wheel and Tire, Rear BS-1102158
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-1102105
...
12
Washer, Belleville BS-1101989
...
14
Bolt, Hex BS-01X142
...
15
Blade BS-1101823E701
...
16
Adapter, Blade BS-1101825
...
17
Height Adjuster, Right Front BS-1102104
...
18
Height Adjuster, Right Rear BS-1102106
...
19
Guard, Rear BS-672738
...
20
Screw BS-26X245
...
21
Deflector, Chute BS-672421
...
22
Push-On Cap BS-028X42
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5
...
25
Baffle BS-672744E701
...
26
Plate, Mulcher (Optional Accessory) BS-672422 Z
...
27
Bracket, Left Handle BS-1102157E245
...
29
Bracket, Right Handle BS-1102156E245
...
32
WASHER, FLAT 5/16 BS-704015
...
33
Knob, Axle BS-672449
...
34
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
--
Book, Instruction BS-F-050407L
