225112x194A Murray - Walk-Behind Mower (2004)

Model: 225112x194A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

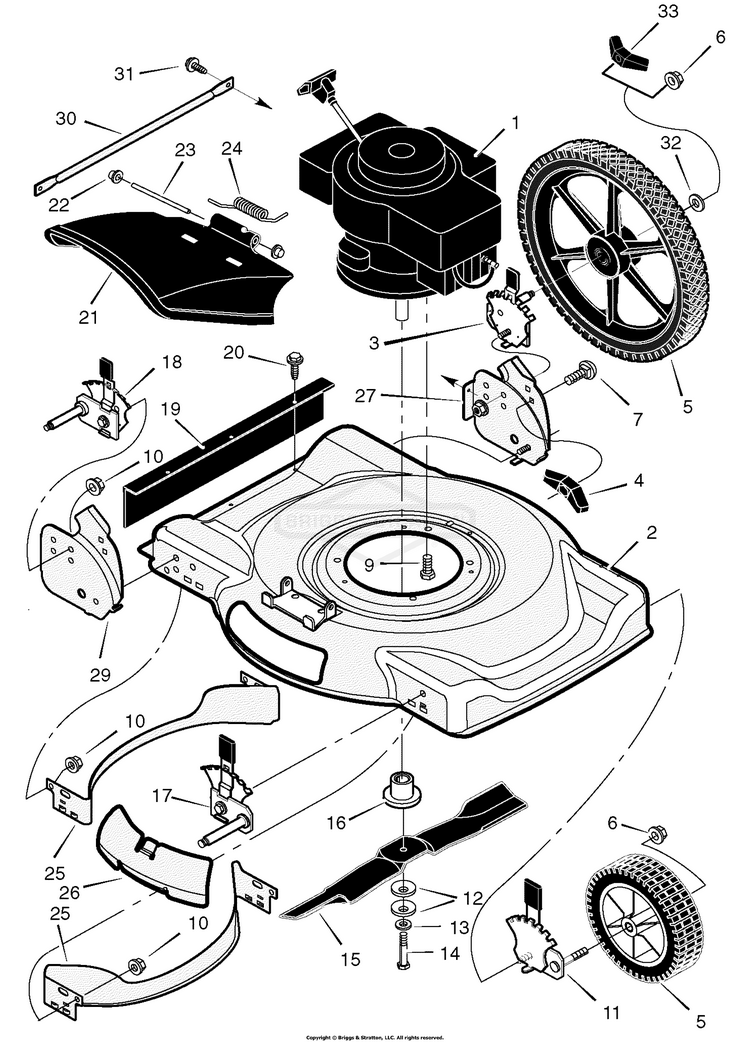

Mower Housing Assembly

...
...
2
Housing BS-776024
...
3
Height Adjuster, Left Rear BS-672645
...
4
Knob BS-71495
...
5
Wheel and Tire BS-672060
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672601
...
12
Washer, Belleville BS-17X137
...
13
Washer BS-17X124
...
14
Bolt, Hex BS-01X142
...
15
Blade BS-1101120E701
...
16
Adapter, Blade BS-71056
...
17
Height Adjuster, Right Front BS-672600
...
18
Height Adjuster, Right Rear BS-672644
...
19
Guard, Rear BS-672738
...
20
Screw BS-26X245
...
21
Deflector, Chute BS-672421
...
22
Push-On Cap BS-028X42
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5
...
25
Baffle BS-672744E701
...
26
Plate, Mulcher BS-672422 Z
...
27
Bracket, Left Handle BS-1101305E700
...
29
Bracket, Right Handle BS-1101304E700
...
30
Brace BS-672728E700
...
31
SCREW.25-20 S-T BS-26X263MA
...
32
Washer BS-017X91 Z
...
33
Knob, Axle BS-672449
...
--
Book, Instruction BS-F-040402L
