22506D Murray - Walk-Behind Mower (2004)

Model: 22506D

Save Part Not Listed?
product name

Popular Parts

Popular Parts

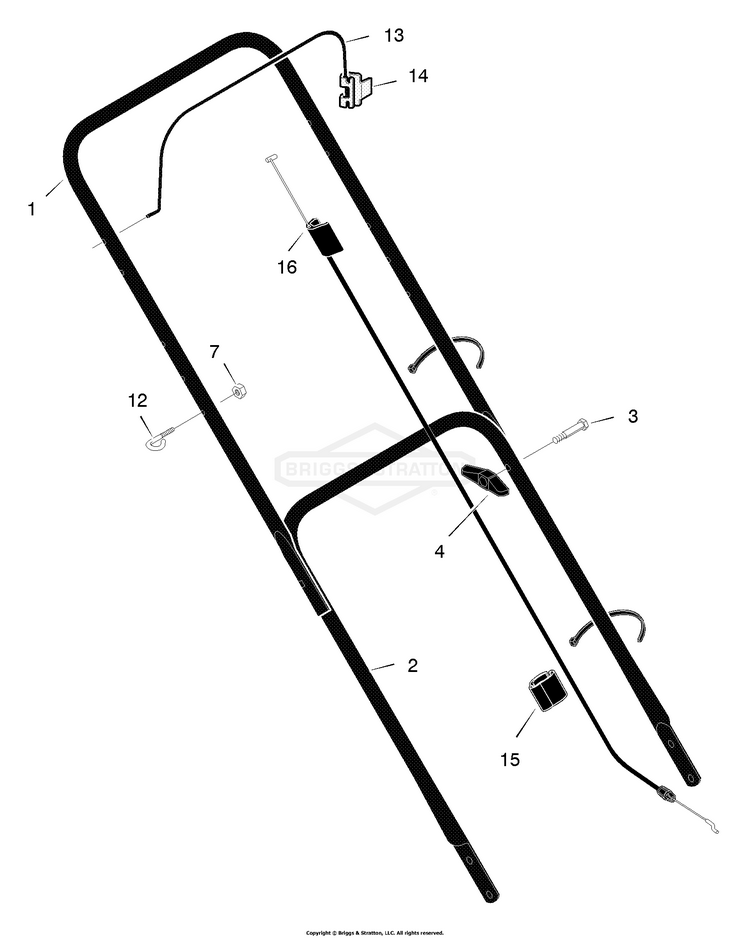

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701MA
...
2
LOWER HANDLE 21/22 MA BS-071137E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-043653E701MA
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101181MA

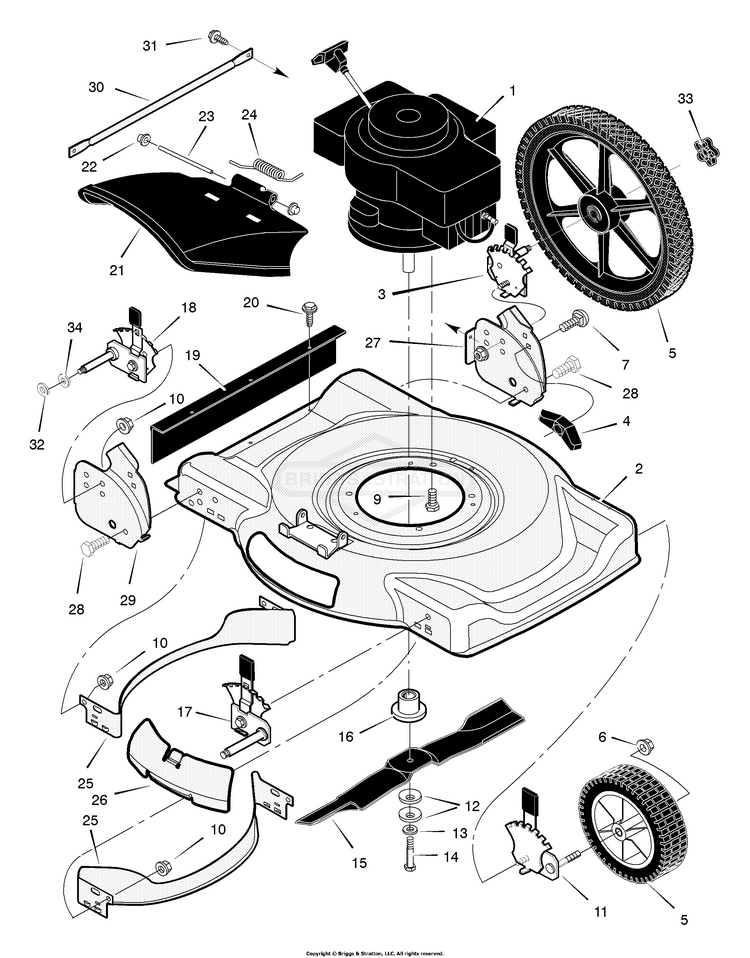

Mower Housing Assembly

...
...
2
Housing BS-776024MA
...
3
Height Adjuster, Left Rear BS-672645MA
...
4
Knob BS-071495MA
...
5
Tire & Rim BS-336545MA
...
5
Wheel and Tire - Rear BS-672074MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672601MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade BS-1101120E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-672600MA
...
18
Height Adjuster, Right Rear BS-672644MA
...
19
Guard, Rear BS-672738MA
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-0028X42
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
25
Baffle BS-672744E701MA
...
26
Plate, Mulcher BS-672422 Z
...
27
Bracket, Left Handle BS-1101305E701MA
...
28
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
29
Bracket, Right Handle BS-1101304E701MA
...
30
Brace BS-672728E245
...
31
SCREW.25-20 S-T BS-26X263MA
...
32
Washer BS-017X91 Z
...
33
Knob, Axle BS-672449MA
...
34
WASHER,SPRING .52X.99 BS-0020X3MA
...
--
Decal - Warning, Mulch Cover BS-48X7330
...
--
Decal, 2n1 -Mulch/Discharge BS-48X670
...
--
Decal, OPPI -98 BS-48X405MA
...
--
Decal, Cut Finger BS-44X6458
...
--
Decal, MURRAY BS-48X855
...
--
Book, Instruction BS-F-040401L
