225010x99A Murray - Walk-Behind Mower (2001)

Model: 225010x99A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

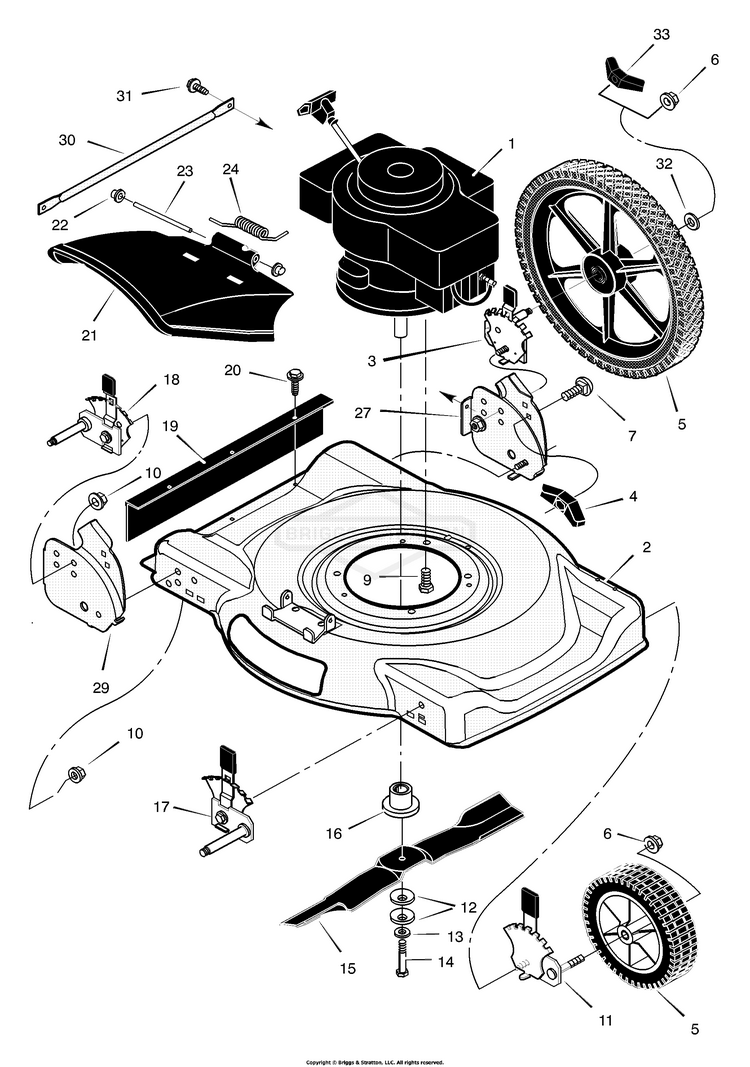

Mower Housing Assembly

...
...
2
Housing BS-776024MA
...
3
Height Adjuster, Left Rear BS-672645MA
...
4
Knob BS-071495MA
...
5
Wheel and Tire, Front BS-071597
...
--
Wheel and Tire, Rear BS-672074MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672635MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade, Side Discharge BS-042225E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-672634MA
...
18
Height Adjuster, Right Rear BS-672644MA
...
19
Guard, Rear BS-672738MA
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
27
Bracket, Left Handle BS-672427E700
...
29
Bracket, Right Handle BS-672426E700
...
30
Brace BS-672728E700
...
31
SCREW.25-20 S-T BS-26X263MA
...
32
Washer BS-017X91 Z
...
33
Knob, Axle BS-672449MA
...
--
Book, Instruction BS-F-010439L
