22446x8B Murray - Walk-Behind Mower (1999)

Model: 22446x8B

Back To Assemblies

Save Part Not Listed?
product name

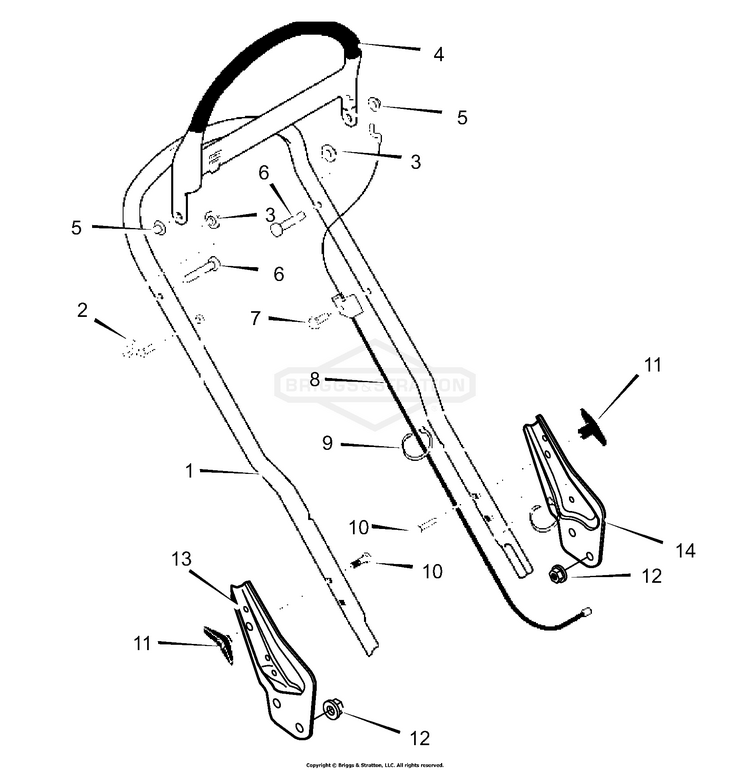

Handle Assembly

...
...
1
Handle, Upper BS-672694E701
...
2
Guide, Rope BS-672510MA
...
3
Spacer BS-672292MA
...
4
Lever, Stop BS-672797
...
5
Push-On Cap BS-028X42MA
...
6
Pin, Clevis BS-29X102
...
7
Screw BS-26X220MA
...
8
Cable, Stop BS-672667MA
...
9
TIE,STRAP-REMOVABLE BS-071372MA
...
10
Bolt, Carriage BS-002X77MA
...
11
Wingnut BS-672685
...
12
NUT, 5/16-18, GR5 BS-703409
...
13
Bracket, Right Handle BS-672266E700
...
14
Bracket, Left Handle BS-672267E700
