22436x8A Murray - Walk-Behind (1998)

Model: 22436x8A

Save Part Not Listed?
product name

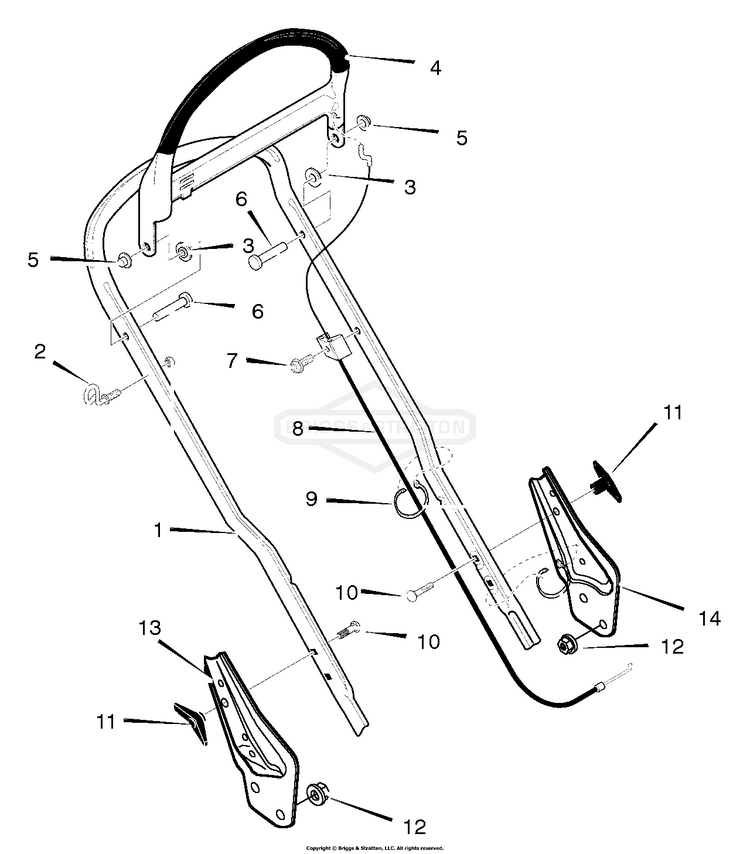

Handle Assembly

...
...
1
Handle, Upper BS-672694E724
...
2
Guide, Rope BS-672510MA
...
3
Spacer BS-672292MA
...
4
Lever, Stop BS-672287
...
5
Push- On Cap BS-028X42MA
...
6
Pin, Clevis BS-29X102
...
7
Screw BS-26X220MA
...
8
Cable, Stop BS-672667MA
...
9
TIE,STRAP-REMOVABLE BS-071372MA
...
10
Bolt, Carriage BS-002X77MA
...
11
Wingnut BS-672685
...
12
NUT, 5/16-18, GR5 BS-703409
...
13
Bracket, Right Handle BS-672266
...
14
Bracket, Left Handle BS-672267

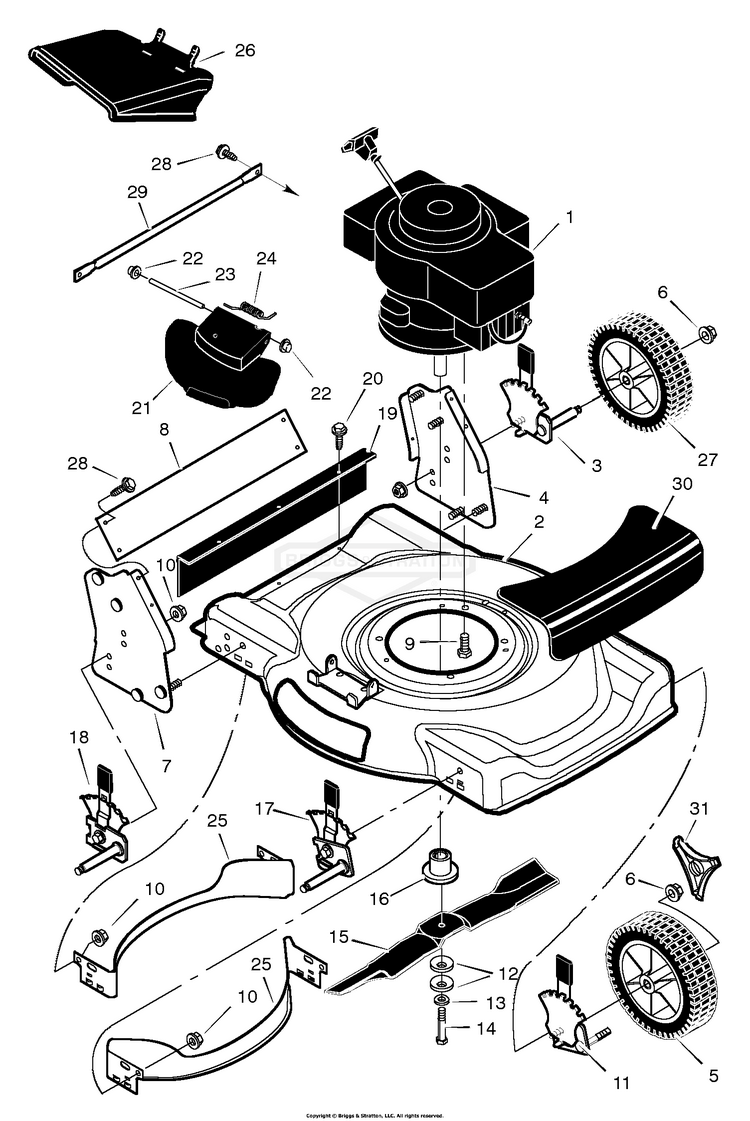

Mower Housing Assembly

...
...
2
Housing BS-776022MA
...
3
Height Adjuster, Left Rear BS-672679
...
4
Bracket, Left Handle BS-672675E122
...
5
Wheel and Tire, Front BS-672437
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bracket, Left Handle BS-672675E122
...
8
Brace, Handle Bracket BS-672660E122
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672677
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade BS-672573E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-672676
...
18
Height Adjuster, Right Rear BS-672678
...
19
Guard, Rear BS-672684
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Cover, Mulcher BS-672618
...
22
Push- On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X19 Z
...
24
Spring BS-166X38MA
...
25
Baffle BS-672332E701
...
26
Deflector, Chute BS-672619
...
27
Wheel and Tire, Rear BS-672434
...
28
SCREW.25-20 S-T BS-26X263MA
...
29
Brace BS-672504E701
...
30
Cover, Front BS-672333
...
31
Cap, Hub BS-672446
...
--
Book, Instruction BS-F-98520
