22407x99A Murray - Walk-Behind (1998)

Model: 22407x99A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

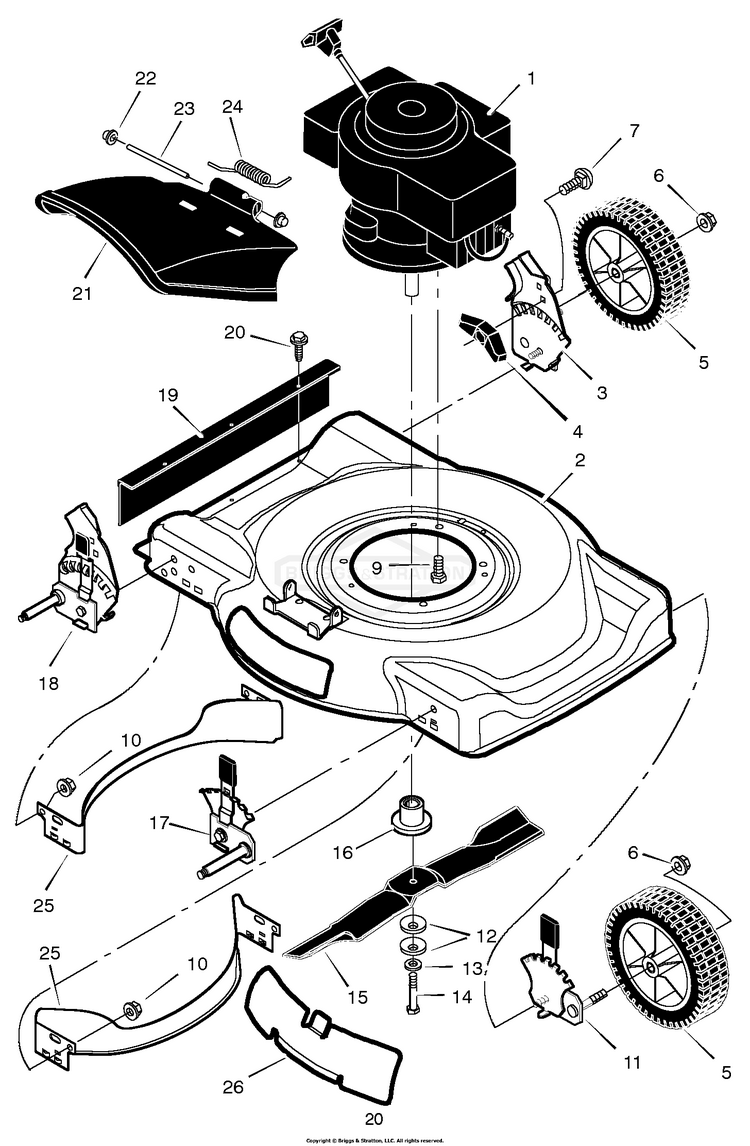

Mower Housing Assembly

...
...
2
Housing BS-776022MA
...
3
Height Adjuster, Left Rear BS-672641A
...
4
Knob BS-071495MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672639A
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade BS-1101120E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-672638A
...
18
Height Adjuster, Right Rear BS-672640A
...
19
Guard, Rear BS-672500
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
25
Baffle BS-672332E701
...
26
Plate, Mulch BS-672422 Z
...
--
Book, Instruction BS-F-98455
