22405A Murray - Walk-Behind (1998)

Model: 22405A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

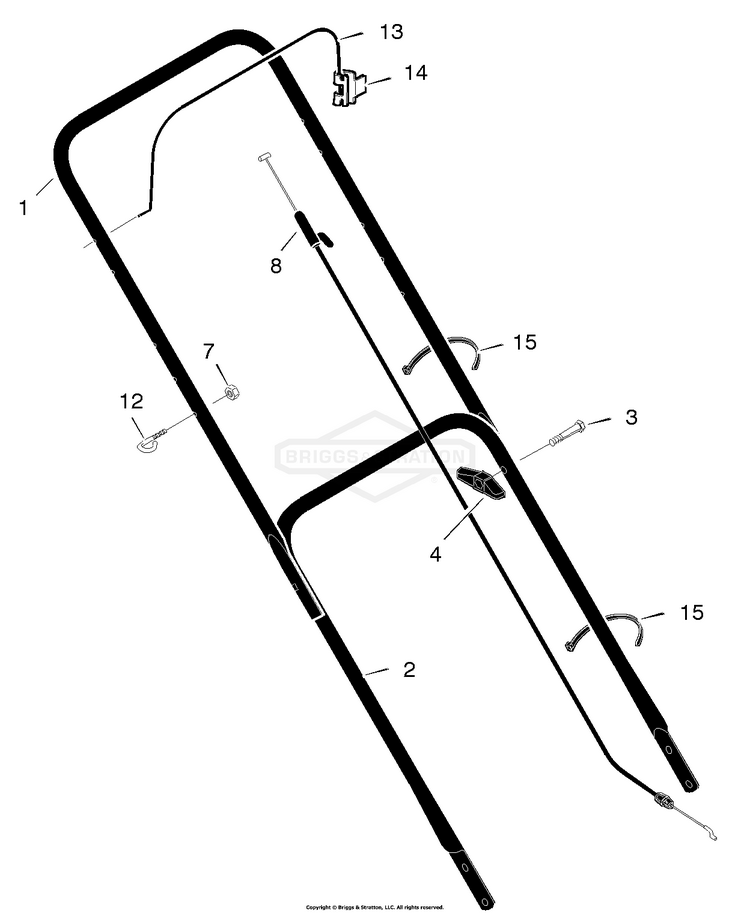

Handle Assembly

...
...
1
Handle, Upper (Black) BS-672666E701MA
...
2
LOWER HANDLE 21/22 MA BS-071137E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Engine Stop Cable BS-672560MA
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Lever, Stop BS-043653E701MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA

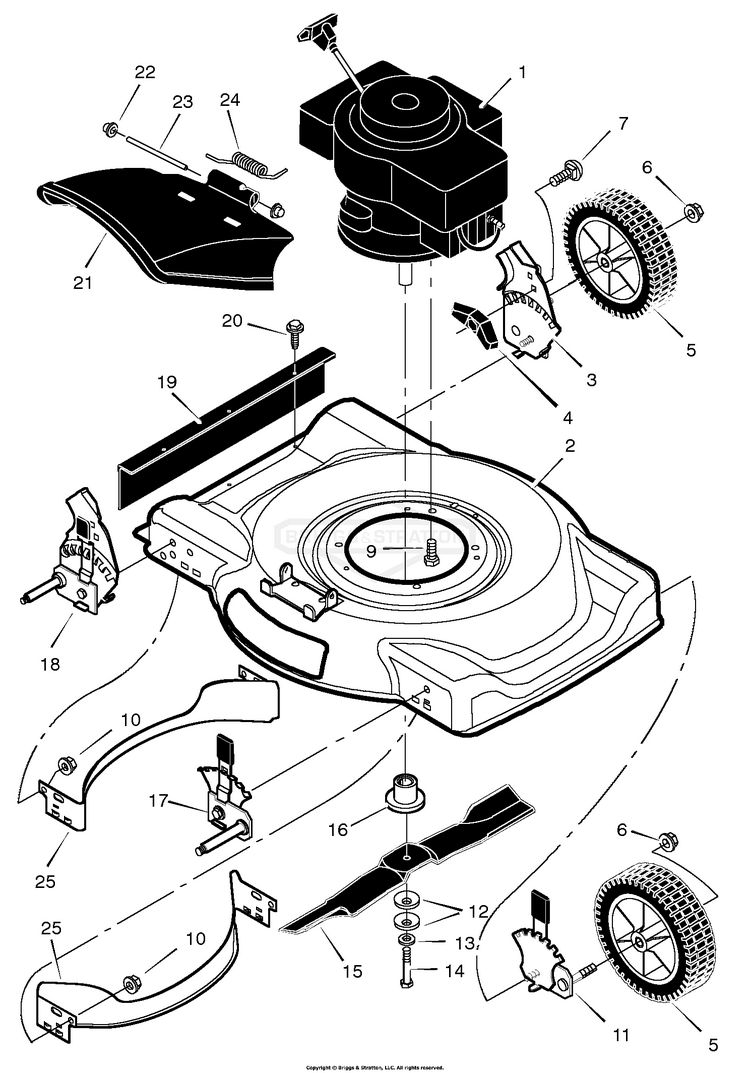

Mower Housing Assembly

...
...
2
Housing BS-776022MA
...
3
Height Adjuster, Left Rear BS-672641MA
...
4
Knob BS-071495MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672639A
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade BS-042225E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-672638A
...
18
Height Adjuster, Right Rear BS-672640A
...
19
Guard, Rear BS-672500
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
25
Baffle BS-672332E701
...
--
Book, Instruction BS-F-98458

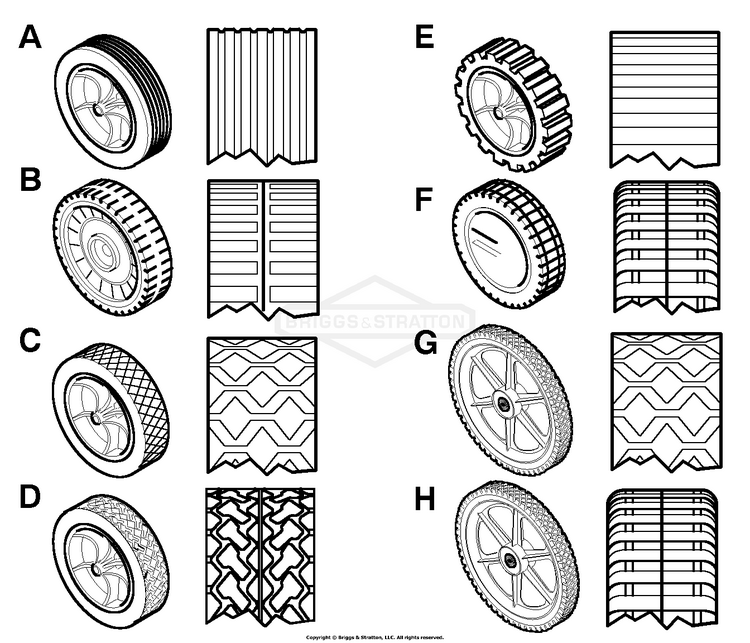

Wheels And Tires

...
...
A
WHEEL & TIRE ASSEMBLY, Light Gray, 8" BS-020104MA
...
A
WHEEL & TIRE ASSEMBLY, Light Gray, 8" BS-020104MA
...
A
8-inch Plastic, Dark Gray BS-071598
...
A
8-inch Metal, White BS-043273
...
B
7-inch Plastic, White BS-071148
...
B
7-inch Plastic, Light Gray BS-71596
...
B
7-inch Plastic, Dark Gray BS-71596
...
C
6-inch Plastic, White BS-042174
...
C
Tire & Rim BS-336546MA
...
C
7-inch Plastic, Light Gray BS-672086
...
C
7-inch Plastic, Dark Gray BS-672085
...
C
8-inch Plastic, White BS-020271
...
C
8-inch Plastic, Light Gray BS-672080
...
C
Tire & Rim BS-336545MA
...
C
8-inch Metal, White BS-043414
...
D
7-inch Plastic, White BS-042172
...
D
WHEEL & TIRE ASSEMBLY, White, 8" BS-042173MA
...
D
8-inch Plastic, Light Gray BS-672081
...
D
8-inch Plastic, Dark Gray BS-071599
...
E
WHEEL & TIRE ASSEMBLY, White, 8" BS-020105MA
...
E
8-inch Plastic, Dark Gray BS-071600
...
E
8-inch Metal, White BS-043274MA
...
F
Wheel BS-071132MA
...
F
8-inch Plastic, Light Gray BS-672082
...
F
8-inch Plastic, Dark Gray BS-071132MA
...
F
Wheel BS-071134MA
...
F
8-inch Ball Bearing, Light Gray BS-672087
...
F
8-inch Ball Bearing, Dark Gray BS-071134MA
...
G
14-inch, White BS-672073
...
G
14-inch, Light Gray BS-672075
...
G
14-inch, Dark Gray BS-672074MA
...
G
WHEEL & TIRE ASSEMBLY, White, 14" BS-071902MA
...
G
14-in, Ball Bearing, Light Gray BS-672076
...
G
Wheel and Tire - Rear BS-672074MA
...
H
14-inch, White BS-672063
...
H
14-inch, Light Gray BS-672077
...
H
Wheel and Tire - Rear BS-672074MA
...
H
WHEEL & TIRE ASSEMBLY, Ball Bearing, 14" BS-672064MA
...
H
14-in, Ball Bearing, Light Gray BS-672078
...
H
14-in, Ball Bearing, Dark Gray BS-071840
