223310x48B Murray - Walk-Behind Mower (2004)

Model: 223310x48B

Back To Assemblies

Save Part Not Listed?
product name

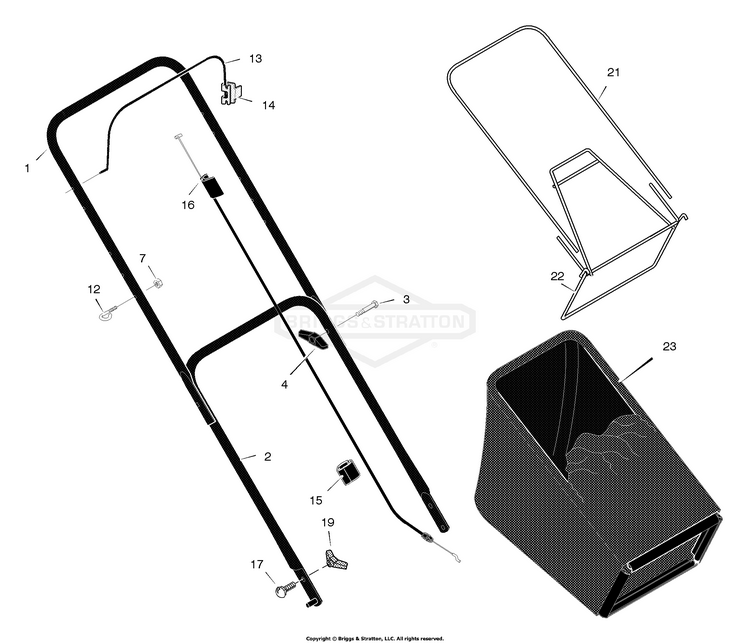

Handle & Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701MA
...
2
Handle, Lower (Black) BS-672906E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Lever, Engine Stop BS-043653E701MA
...
14
Bracket, Stop Lever BS-1101454
...
15
Clip, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101363MA
...
17
Bolt, Carriage BS-002X81MA
...
19
Knob, Plastic BS-071495MA
...
21
Frame Top BS-1101075MA
...
22
Frame Assembly BS-1101074MA
...
23
Bag, Cloth BS-1101005MA
