223310x24D Murray - Walk-Behind Mower (2005)

Model: 223310x24D

Save Part Not Listed?
product name

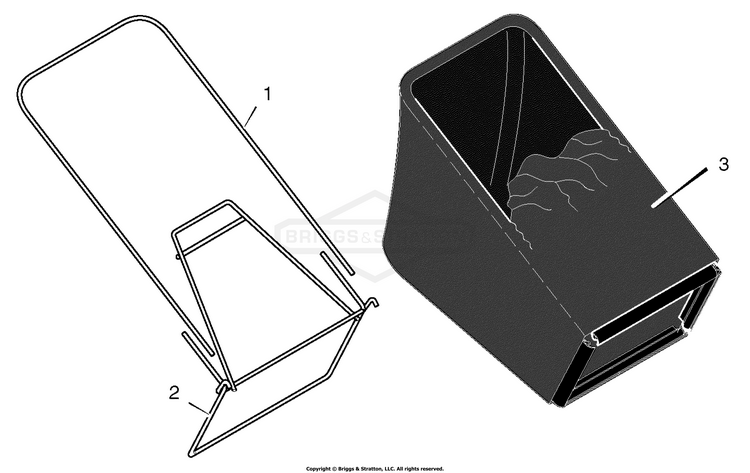

Bag Assembly

...
...
1
Tube, Bag BS-1101075
...
2
Frame Assembly BS-1101074
...
3
Bag, Cloth -Black BS-1101005

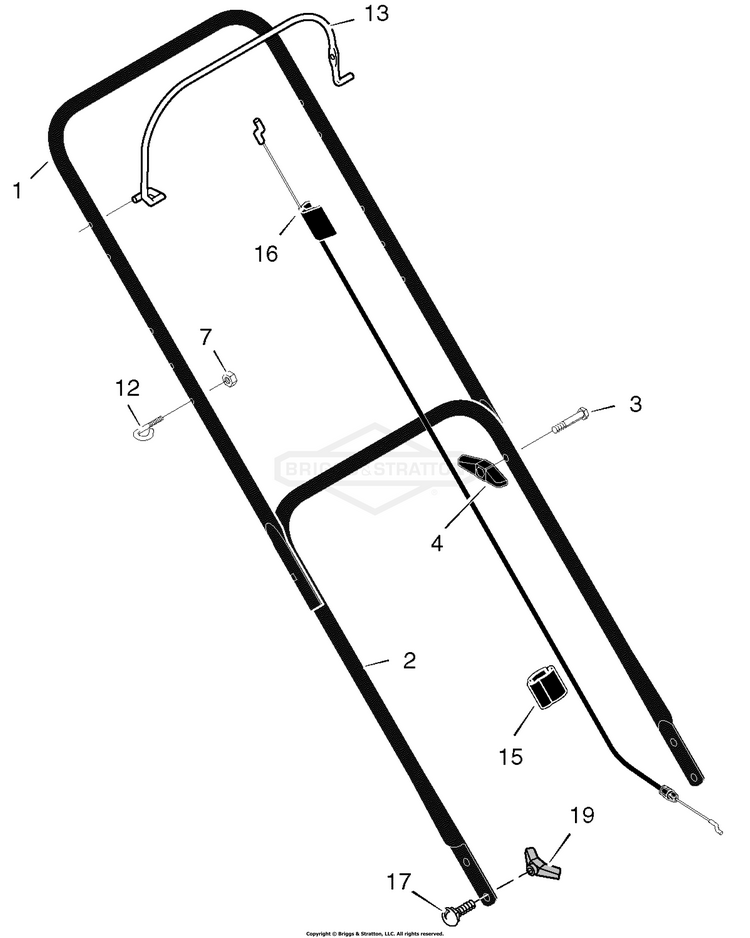

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701
...
2
Handle, Lower (Black) BS-1102089E701
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Lever, Engine Stop BS-1101964E701
...
15
Clip, Cable BS-1101353
...
16
Engine Stop Cable BS-1102092
...
17
Bolt, Carriage BS-002X81
...
19
Knob, Plastic BS-71495

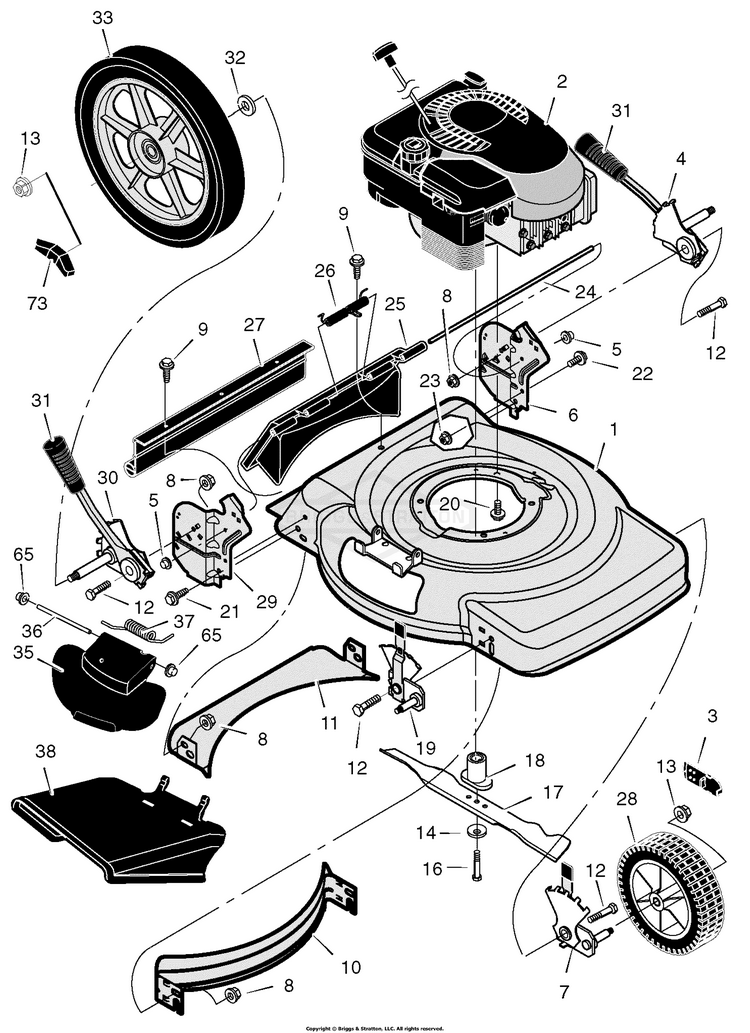

Mower Housing Assembly

...
...
1
Housing BS-7501004
...
3
Cap, Hub (Optional) BS-43615
...
4
Adjuster, Left Rear Height BS-1102169
...
5
Push On Cap BS-028X49
...
6
Bracket, Left Handle BS-1102123E700
...
7
Adjuster, Left Front Height BS-1102105
...
8
NUT, 3/8-16 BS-703333
...
9
Screw BS-26X245
...
10
Baffle, Front BS-1102244E700
...
11
Baffle, Rear BS-672916E700
...
12
Bolt BS-01X108
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-1101989
...
16
Bolt BS-01X153
...
17
Blade BS-1101823E701
...
18
Adapter, Blade BS-1101824
...
19
Adjuster, Right Front Height BS-1102104
...
20
Bolt, Engine BS-0025X6MA
...
21
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
23
Nut, Flange BS-015X79
...
24
Rod, Pivot (These parts are included with Ref. 25.) BS-215X21
...
25
Door, Rear (Black) BS-1101070
...
26
Spring (These parts are included with Ref. 25.) BS-166X44
...
27
Guard, Rear BS-672684
...
28
Wheel & Tire BS-71132
...
29
Bracket, Right Handle BS-1102122E700
...
30
Adjuster, Right Rear Height BS-1102168
...
31
Grip BS-71297
...
32
Washer BS-017X91 Z
...
33
Wheel, Rear BS-71132
...
35
Cover, Mulch (Black) BS-1101098
...
36
Rod, Pivot BS-215X19 Z
...
37
Spring, Torsion BS-166X38
...
38
Deflector, Chute (Black) BS-1101097
...
65
Push On Cap BS-028X42
...
73
Knob (Optional) (Optional) BS-672449
...
--
Instruction Book BS-F-050431L
