22295x92A Murray - Walk-Behind Mower (1997)

Model: 22295x92A

Save Part Not Listed?
product name

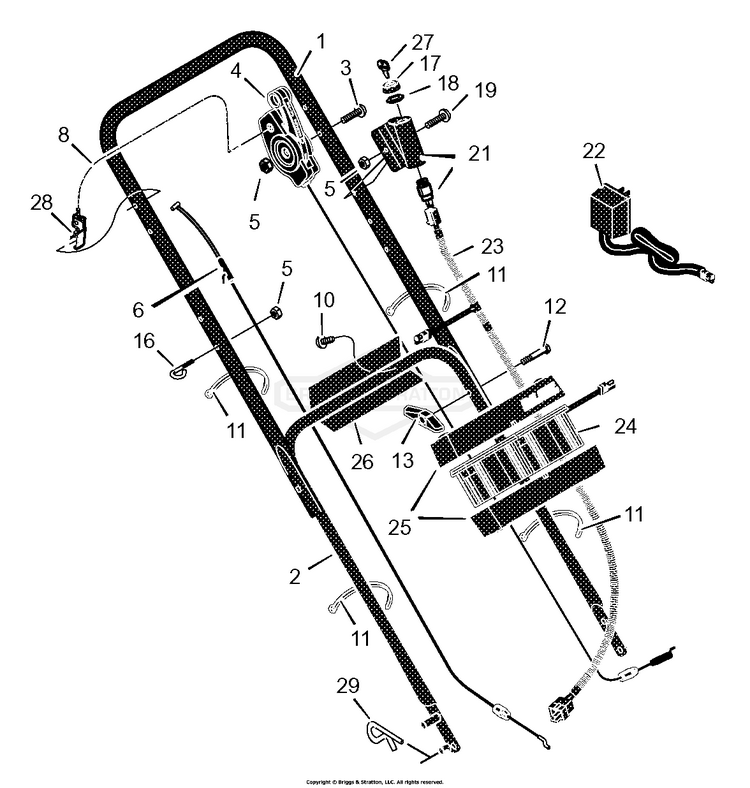

Handle Assembly

...
...
1
Handle, Upper (Black) BS-671581E701
...
2
Handle, Lower (Black) BS-672228E701
...
3
Bolt BS-03X144
...
4
Control, Drive BS-672243
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672244
...
8
Lever, Stop BS-043653E701MA
...
9
Screw BS-26X256MA
...
10
Screw BS-26X220MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
GUIDE, ROPE BS-043956MA
...
17
CAP, Switch BS-847150
...
18
SET, Washer/Nut BS-847144
...
19
Bolt BS-03X136MA
...
21
Ignition Switch & Case BS-671916MA
...
22
Charger, Battery BS-671992MA
...
23
Harness, Wiring BS-250X72MA
...
24
Battery Kit BS-671958MA
...
25
Case, Battery BS-776013SEMA
...
26
Bracket, Battery BS-671959E701
...
27
Key, Ignition BS-672220
...
28
Bracket, Stop Lever BS-43628 BC
...
29
Hairpin BS-031X10MA
...
--
Cable Clamp, Engine BS-042294
...
--
Screw BS-26X268MA

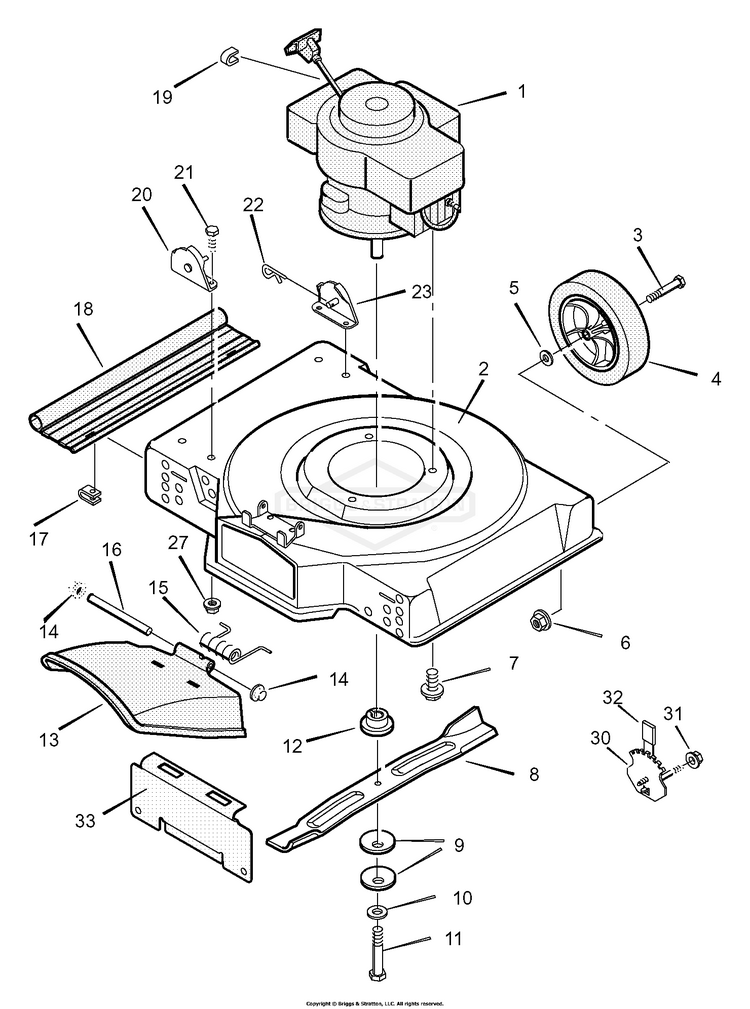

Mower Housing Assembly

...
...
2
Housing BS-070156
...
3
Bolt, Axle BS-009X10MA
...
4
Wheel and Tire BS-672080
...
5
Washer BS-010851 Z
...
6
NUT, 3/8-16 BS-703333
...
7
Bolt, Engine BS-0025X6MA
...
8
Blade BS-672059E701
...
9
Washer, Belleville BS-17X137MA
...
10
Washer BS-17X124MA
...
11
Bolt, Hex BS-01X142MA
...
12
Adapter, Blade BS-071056MA
...
13
Deflector, Chute (Included with Ref. No. 2) BS-042919
...
14
Push-On Cap BS-028X42MA
...
15
Spring BS-0166X5MA
...
16
Pin, Pivot BS-215X11 Z
...
17
Retainer BS-042743MA
...
18
Deflector, Rear (Included with Ref. No. 2) BS-042747
...
19
Stop, Rope BS-042189MA
...
20
Bracket, Right Handle BS-42712E701
...
21
Bolt BS-001X38MA
...
22
Pin, Hair BS-031X10MA
...
23
Bracket, Left Handle BS-42713E701
...
27
NUT, 1/4-20, GR5 BS-703233
...
30
Adjuster, Height BS-071185
...
--
Adjuster, Height BS-071186
...
31
NUT, CNTR LCK, 3/8-16 BS-703893
...
32
Grip BS-043394MA
...
33
Plate, Mulcher BS-672044 Z
...
--
Book, Instruction BS-F-97509
