product name

22275x83A Murray - Walk-Behind Mower (1997)

Model: 22275x83A

Save Part Not Listed?
product name

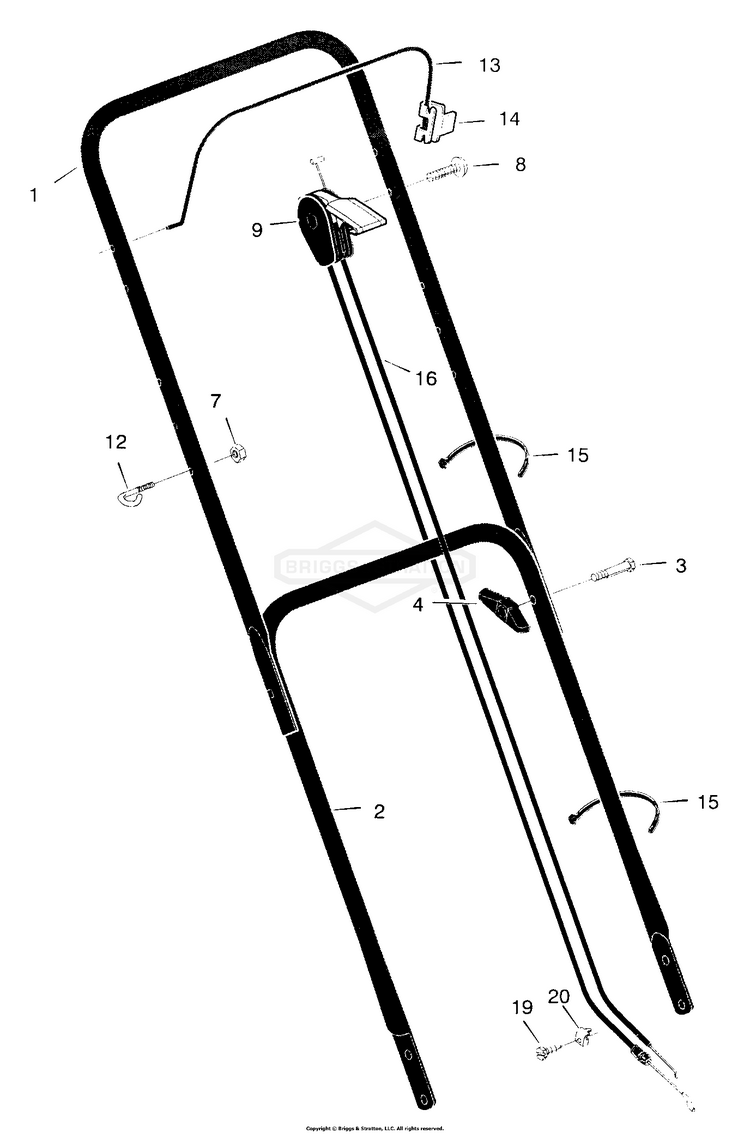

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
2
Handle, Lower BS-071582E701
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
Throttle Control BS-672131MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Engine Stop Lever BS-043653E701MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-672126MA
...
19
Screw BS-26X268MA
...
20
Clamp BS-042294

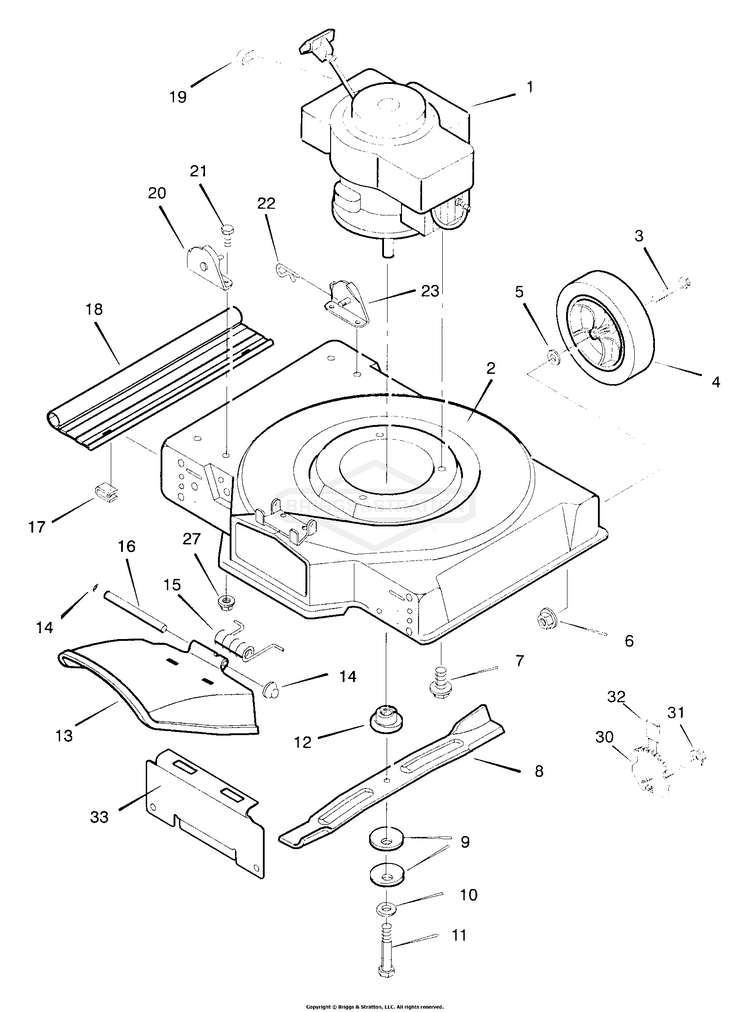

Mower Housing Assembly

...
...
2
Housing BS-070156
...
3
Bolt, Axle BS-009X10MA
...
4
Wheel and Tire BS-672080
...
5
Washer BS-010851 Z
...
6
NUT, 3/8-16 BS-703333
...
7
Bolt, Engine BS-0025X6MA
...
8
Blade BS-672059E245
...
9
Washer, Belleville BS-17X137MA
...
10
Washer BS-17X124MA
...
11
Bolt, Hex BS-01X142MA
...
12
Adapter, Blade BS-071056MA
...
13
Deflector, Chute BS-042919
...
14
Push-On Cap BS-028X42MA
...
15
Spring BS-0166X5MA
...
16
Pin, Pivot BS-215X11 Z
...
17
Retainer BS-042743MA
...
18
Deflector, Rear BS-042747
...
19
Stop, Rope BS-042189MA
...
20
Bracket, Right Handle BS-42712E701
...
21
Bolt BS-001X38MA
...
22
Pin, Hair BS-031X10MA
...
23
Bracket, Left Handle BS-42713E701
...
27
NUT, 1/4-20, GR5 BS-703233
...
30
Adjuster, Height BS-401025MA
...
31
NUT, CNTR LCK, 3/8-16 BS-703893
...
32
Grip BS-043394MA
...
33
Plate, Mulcher BS-672044 Z
...
--
Book, Instruction BS-F-97491
