22265x8J Murray - Walk-Behind Mower (2004)

Model: 22265x8J

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Mulcher Models

...
...

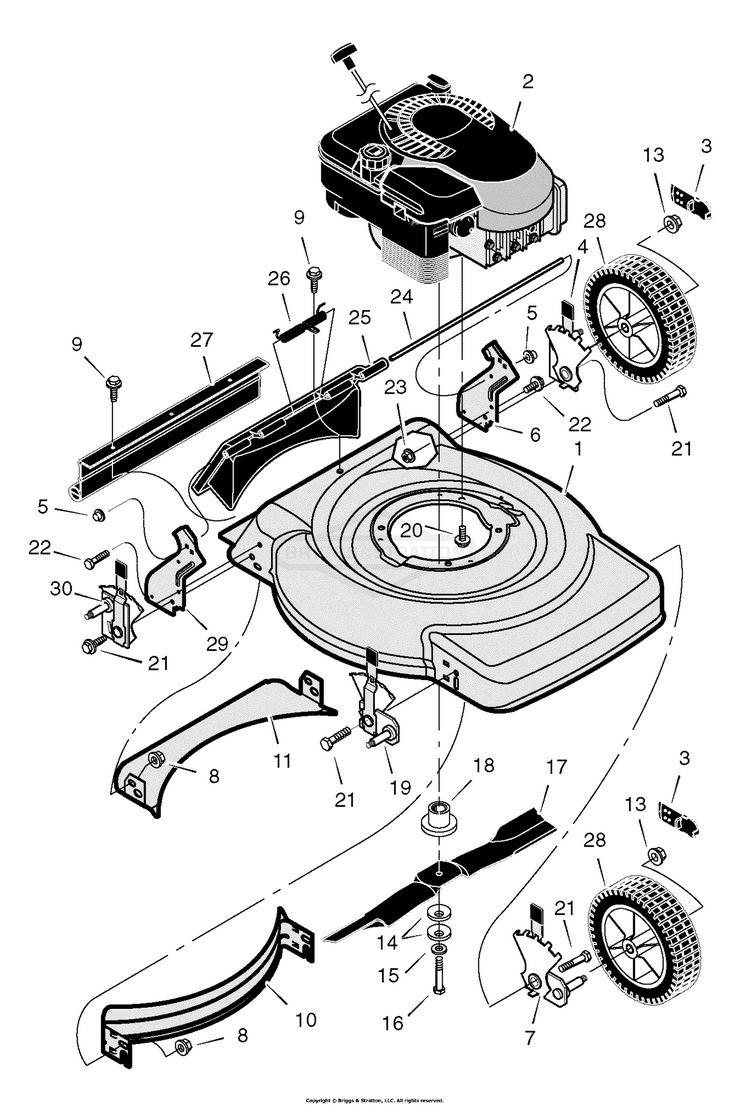

1
Housing BS-7501001
...
3
Cap, Hub (Optional) BS-43615
...
4
Adjuster, Left Rear Height BS-1101901
...
5
Push On Cap BS-028X49
...
6
Bracket, Left Handle BS-1102075E700
...
7
Adjuster, Left Front Height BS-1101899
...
8
NUT, 3/8-16 BS-703333
...
9
Screw BS-26X245
...
10
Baffle, Front BS-672915E700
...
11
Baffle, Rear BS-672916E700
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137
...
15
Washer BS-17X124
...
16
Bolt BS-01X153
...
17
Blade BS-1101120E701
...
18
Adapter, Blade BS-672503
...
19
Adjuster, Right Front Height BS-1101898
...
20
Bolt, Engine BS-0025X6MA
...
21
Bolt BS-01X108
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
23
Nut, Flange BS-015X79
...
24
Rod, Pivot BS-215X21
...
25
Door, Rear (Black) BS-672611
...
--
Door, Rear (Gray) BS-672613
...
26
Spring BS-166X44
...
27
Guard, Rear BS-1101105
...
29
Bracket, Right Handle BS-1102074E700
...
30
Adjuster, Right Rear Height BS-1101900
...
--
Instruction Book BS-F-040461L
