22265x8G Murray - Walk-Behind Mower (2002)

Model: 22265x8G

Save Part Not Listed?
product name

Popular Parts

Popular Parts

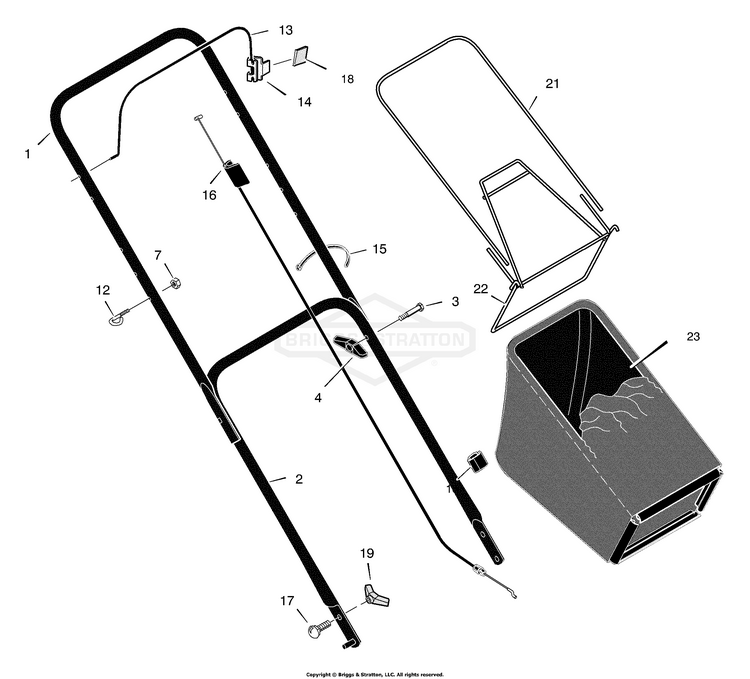

Handle And Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101898E701
...
2
Handle, Lower (Black) BS-672906E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-043653E701MA
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101363MA
...
17
Bolt, Carriage BS-002X81MA
...
18
Sleeve BS-1101115MA
...
19
Knob, Plastic BS-071495MA
...
21
Tube, Bag BS-1101075MA
...
22
Frame Assembly BS-1101074MA
...
23
Bag, Cloth BS-1101005MA
...
--
Bagger Assy, Complete (Includes Ref. No. 21 - 23) BS-24301MA

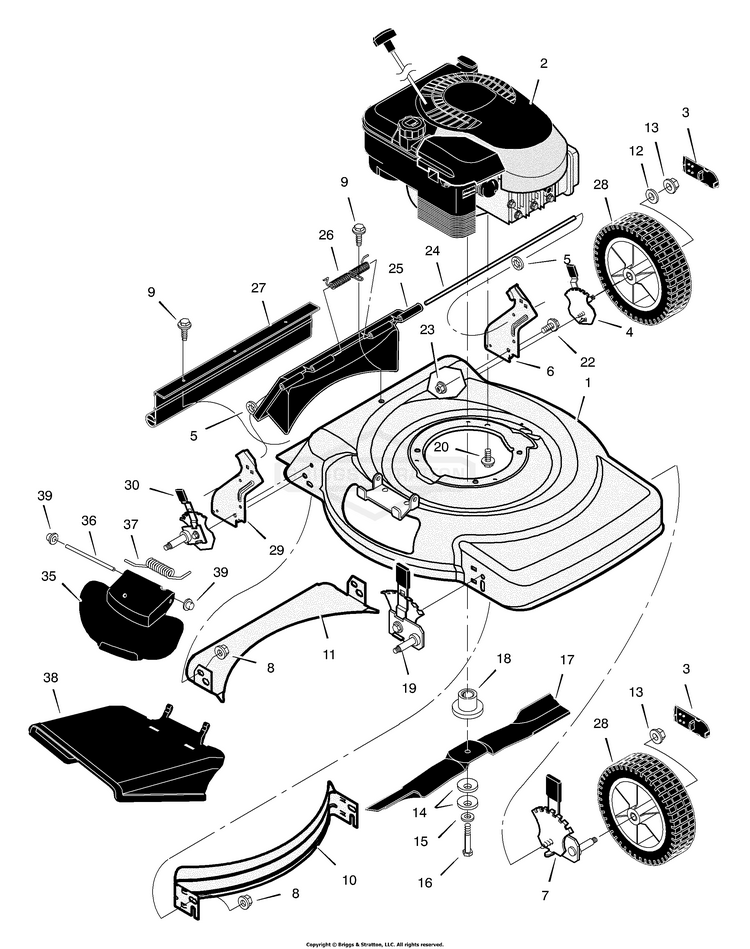

Mower Housing Assembly

...
...
1
Housing BS-7501004MA
...
3
Hub Cap BS-043615MA
...
4
Adjuster, Left Rear Height BS-672605MA
...
5
Retainer,Push (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101239E700
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
SCREW-#10X.5 B W/WAS BS-26X245MA
...
10
Baffle, Front BS-672915E701MA
...
11
BAFFLE, REAR, 22 DEC BS-7300854DYP
...
12
Washer BS-017X91MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-1101120E701MA
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X21MA
...
25
Door, Rear (Black) BS-1101070MA
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
GUARD, Rear, 22" Mower Deck BS-7103347YP
...
28
Wheel & Tire BS-071132MA
...
29
Bracket, Right Handle BS-1101238E700
...
30
Adjuster, Right Rear Height BS-672604MA
...
35
Cover, Mulch (Black) BS-1101098MA
...
36
Rod, Pivot BS-215X19 Z
...
37
Spring, Torsion BS-166X38MA
...
38
Deflector, Chute (Black) BS-1101097MA
...
39
Push On Cap BS-028X42MA
...
--
Decal, Customer Care BS-44X6259MA
...
--
Decal, 3n1 Mulch/Bag/Mow BS-48X695
...
--
Decal, Warning/Cut Finger BS-48X407MA
...
--
Instruction Book BS-F-020422L
