222390x31C Murray - Walk-Behind Mower (2004)

Model: 222390x31C

Save Part Not Listed?
product name

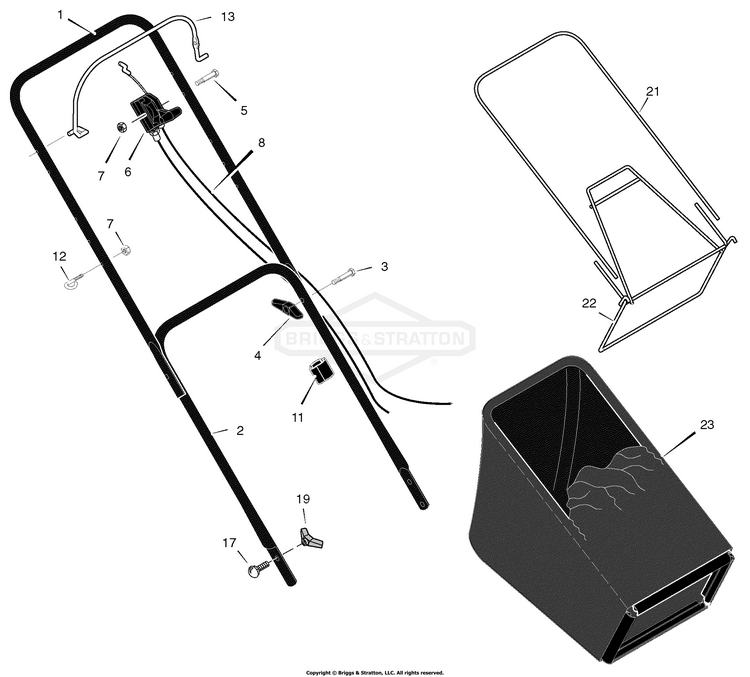

Handle & Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101829E701
...
2
Handle, Lower (Black) BS-672906E701
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
5
Bolt BS-001X93
...
6
Throttle Control BS-1101418
...
7
Locknut BS-15X116
...
8
Engine Stop Cable BS-1102006
...
11
Clip, Cable BS-1101353
...
12
Guide, Rope BS-71530
...
13
Lever, Engine Stop BS-1101964E701
...
17
Bolt, Carriage BS-002X81
...
19
Knob, Plastic BS-71495
...
21
Frame, Top BS-1101075
...
22
Frame Assembly BS-1101074
...
23
Bag, Cloth BS-1101035

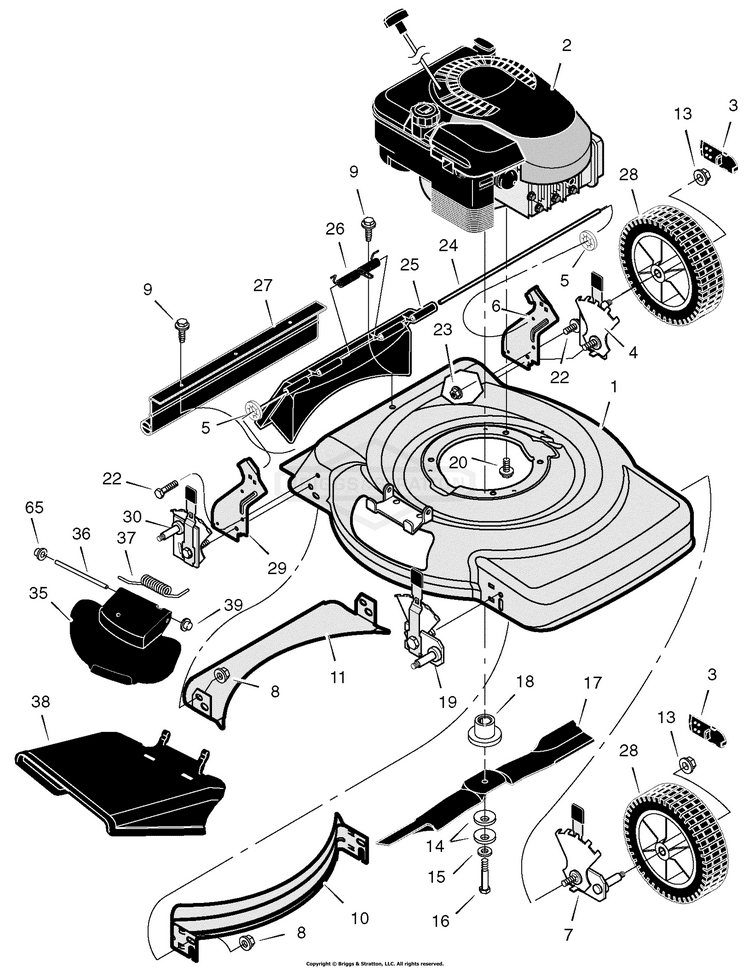

Mower Housing Assembly

...
...
1
Housing BS-7501004
...
3
Cap, Hub (Optional) BS-1101320
...
4
Adjuster, Left Rear Height BS-1102035
...
5
Push Retainer (Included with Ref. No. 25) BS-028X49
...
6
Bracket, Left Handle BS-1102075E701
...
7
Bracket, Left Handle BS-1102033
...
8
NUT, 3/8-16 BS-703333
...
9
Screw * BS-26X245
...
10
Baffle, Front BS-672915E701
...
11
Baffle, Rear BS-672916E701
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137
...
15
Washer BS-17X124
...
16
Bolt BS-01X142
...
17
Blade BS-1101120E701
...
18
Adapter, Blade BS-71056
...
19
Adjuster, Right Front Height BS-1102032
...
20
Bolt, Engine BS-0025X6MA
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
23
Nut, Flange BS-015X79
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X21
...
25
Door, Rear (Black) * BS-1101070
...
26
Spring (Included with Ref. No. 25) BS-166X44
...
27
Guard, Rear * BS-1101105
...
28
Wheel & Tire BS-71132
...
29
Bracket, Right Handle BS-1102074E701
...
30
Adjuster, Right Rear Height BS-1102034
...
35
Cover, Mulch (Black) (Included when ordering Ref. No. 1) BS-1101098
...
36
Rod, Pivot * BS-215X19 Z
...
37
Spring, Torsion * BS-166X38
...
38
Deflector, Chute (Black) * BS-1101097
...
39
Push On Cap * BS-028X42
...
--
Instruction Book BS-F-040463L
