222310x83A Murray - Walk-Behind Mower (2005)

Model: 222310x83A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

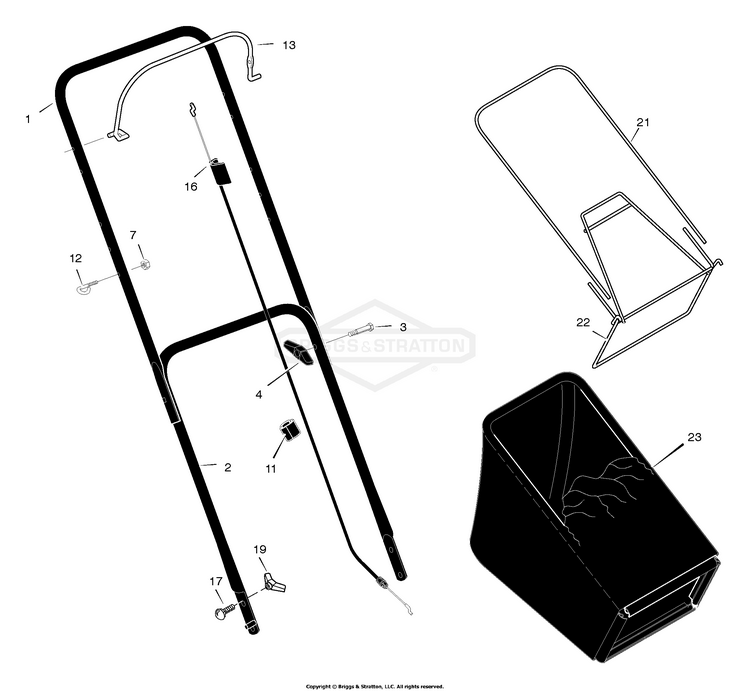

Handle & Bagger Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701MA
...
2
Handle, Lower (Black) BS-1102089E701
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
11
Clip, Cable BS-1101353MA
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-1101964E701MA
...
16
Engine Stop Cable BS-1102092
...
17
Bolt, Carriage BS-002X81MA
...
19
Knob, Plastic BS-071495MA
...
21
Frame, Top BS-1101075MA
...
22
Frame Assembly BS-1101074MA
...
23
Bag, Cloth BS-1101005MA

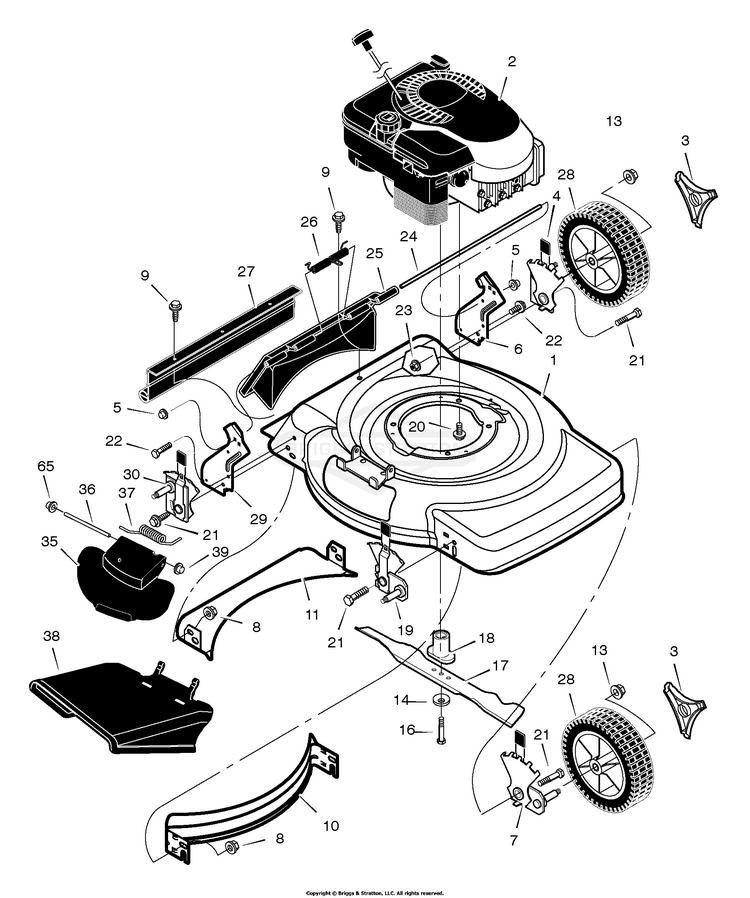

Mower Housing Assembly

...
...
1
Housing BS-7501004MA
...
3
Cap, Hub (Optional) BS-672446
...
4
Adjuster, Left Rear Height BS-672605MA
...
5
Push Retainer (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101239E700
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
SCREW-#10X.5 B W/WAS (Included with Ref. No. 1) BS-26X245MA
...
10
Baffle, Front BS-672915E700
...
11
Baffle, Rear BS-672916E700
...
12
Washer BS-017X91MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-1101989MA
...
16
Bolt BS-01X153MA
...
17
BLADE, 22", WALK MWR BS-7100851AYP
...
18
Adapter, Blade BS-1101824MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
21
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X21MA
...
25
Door, Rear (Black) (Included with Ref. No. 1) BS-1101070MA
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
GUARD, Rear, 22" Mower Deck (Included with Ref. No. 1) BS-7103347YP
...
28
WHL 8X2 TWIST/BAR P D BS-1101433MA
...
29
Bracket, Right Handle BS-1101238E700
...
30
Adjuster, Right Rear Height BS-672604MA
...
35
Cover, Mulch (Black) (Included with Ref. No. 1) BS-1101098MA
...
36
Rod, Pivot (Included with Ref. No. 1) BS-215X19 Z
...
37
Spring, Torsion (Included with Ref. No. 1) BS-166X38MA
...
38
Deflector, Chute (Black) (Included with Ref. No. 1) BS-1101097MA
...
39
Push On Cap (Included with Ref. No. 1) BS-028X42MA
...
--
Instruction Book BS-F-050438L
